Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hengwang
-
Weight:
-
7500 kg
-
Dimension(L*W*H):
-
4800*1980*2900 mm
-
Product Name:
-
Solar pile driver
-
Application:
-
Solar Photovoltaic
-
Impact energy:
-
1800J
-
Max. torque:
-
375Nm
-
Fuel tank capacity:
-
150L
-
Working pressure:
-
19Mpa
-
Rated flow rate:
-
230L/Min
-
Gradeability:
-
25°
-
Max. travel speed:
-
3km/h
-
Tail turning radius:
-
2030mm
Quick Details
-
Marketing Type:
-
New Product 2024
-
Efficiency:
-
High Efficiency
-
Piling Speed(m/min):
-
3m/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hengwang
-
Weight:
-
7500 kg
-
Dimension(L*W*H):
-
4800*1980*2900 mm
-
Product Name:
-
Solar pile driver
-
Application:
-
Solar Photovoltaic
-
Impact energy:
-
1800J
-
Max. torque:
-
375Nm
-
Fuel tank capacity:
-
150L
-
Working pressure:
-
19Mpa
-
Rated flow rate:
-
230L/Min
-
Gradeability:
-
25°
-
Max. travel speed:
-
3km/h
-
Tail turning radius:
-
2030mm

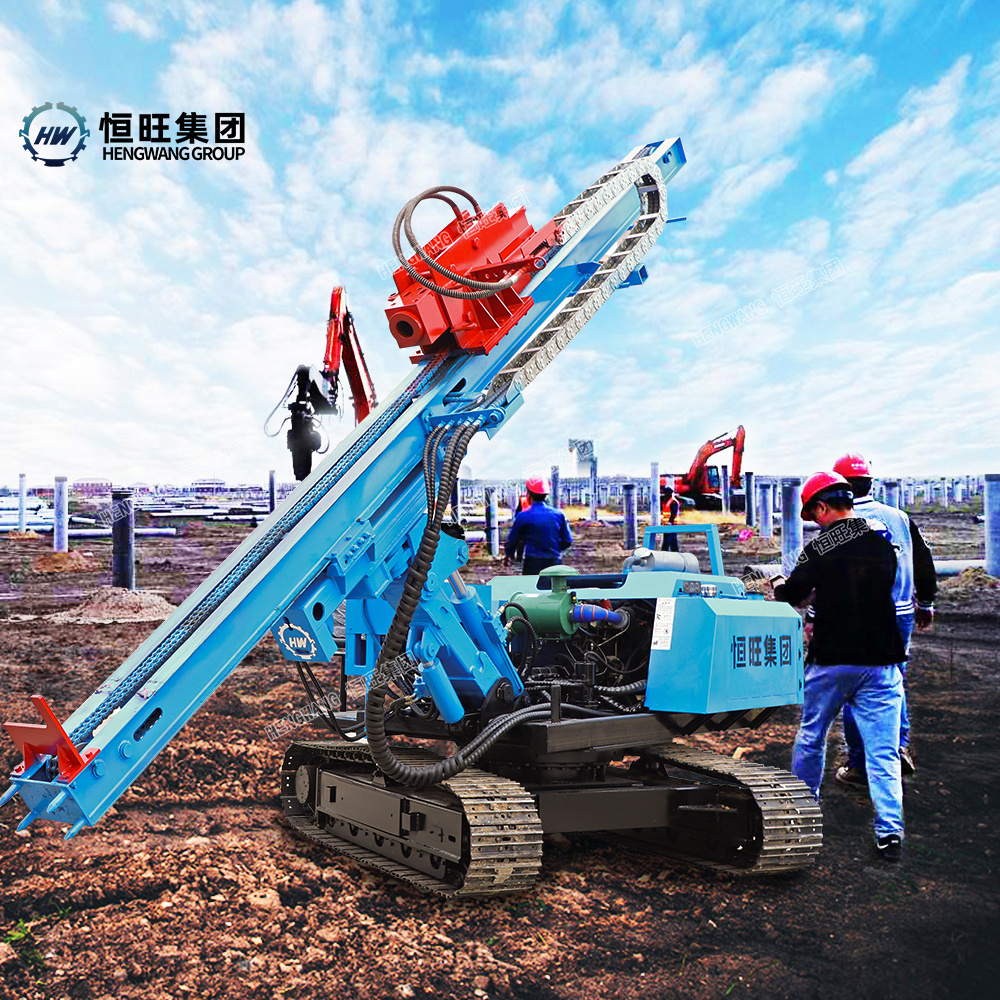

2024 Hengwang Hydraulic pressure static helical screw piles solar pile driver machine used for screw and impact pile
Product Description
Product Application
Hengwang
New arrival 2024 post driver Hengwang bore pile machine solar pile driver in stock
3m/6m hydraulic rotary press piling machine is multi-functional pile driving machine for mine, with 360 degrees of freedom to rotate, 360 degree angle pile function. The machine with diesel powered, hydraulic mechanical transmission, with steel crawler chassis ,convenient shift pressing boom, vertical and horizontal angle pile, high precision with GPS, durable, time-saving, labor-saving and, especially for engineering construction in the field.
This hydraulic pile driver is a kind of multi-functional
highway guardrail pile
construction machinery, with different configuration it can accomplish many functions, such as
piling, pile extracting, and drilling
on the stable layer of road before piling.
Crawler walking for mountain area,rough road,high climbing ability .The frame can be moved backward and forward,press power head can be adjusted,high post piling position accuracy.
Product Parameters
|
Specification of Pile driver
|
|
|
|
|
|
|||||
|
Model
|
HWL300R
|
HWL400R
|
HWL500R
|
HWL600R
|
HWL-390-H
|
|||||
|
Operating weight(KG)
|
7500
|
7600
|
7700
|
7800
|
7410
|
|||||
|
Engine
|
Yuchai
|
Yuchai
|
Yuchai
|
Yuchai
|
Yuchai
|
|||||
|
Engine Model
|
YCD4J22T
|
YCD4J22T
|
YCD4J22T
|
YCD4J22T
|
YCD4J22T
|
|||||
|
Power（KW)
|
85
|
85
|
85
|
85
|
85
|
|||||
|
Emission standard
|
National II
|
National II
|
National II
|
National II
|
National II
|
|||||
|
Hydraulic pump brand
|
Domestic
|
Domestic
|
Domestic
|
Domestic
|
Domestic
|
|||||
|
Distributor brand
|
Domestic
|
Domestic
|
Domestic
|
Domestic
|
Domestic
|
|||||
|
Slewing motor brand
|
Domestic
|
Domestic
|
Domestic
|
Domestic
|
Domestic
|
|||||
|
Walking motor brand
|
Domestic
|
Domestic
|
Domestic
|
Domestic
|
Domestic
|
|||||
|
Dimension（L*W*H）
|
4800x1980x2900mm
|
5800x1980x2900
|
6800x1980x2900
|
7800x1980x2900
|
4500*2260*2970
|
|||||
|
Driving mode
|
Hydraulic motor
|
Hydraulic motor
|
Hydraulic motor
|
Hydraulic motor
|
Hydraulic motor
|
|||||
|
Hammer head model
|
100
|
100
|
100
|
100
|
Hydraulic hammer head
|
|||||
|
Optional Accessories
|
Remote control can be installed
|
|
|
|
|
|||||
|
|
A level can be installed
|
|
|
|
|
|||||
|
|
Diameter less than 180mm can be equipped with dust collection
|
|
|
|
|
|||||
2024 Hengwang Hydraulic pressure static helical screw piles solar pile driver machine used for screw and impact pile
Details Images
Advantages(spotlight)
1.the pile driver machine can 360 degree rotary , it is very convenient for working.
2.the working speed is fast, it only takes 90s can finish one pile.
3.our pile driver machine can work on the big gradient. 4.our pile driver machine can pree post one soil ground and drill hole with DTH hammer on rocky ground
dri
mountain area slope 3m 2m photovoltaic post ramming machine with Telescopic crawler
2024 Hengwang Hydraulic pressure static helical screw piles solar pile driver machine used for screw and impact pile
Real Images
Applications of pile driver
multi-functional Diesel Powered Fence Post ramming Guardrail Pile Driver
Hengwang pile driver in Mongolia for solar post project in 2018
6
mountain area slope 3m 2m photovoltaic post ramming machine with Telescopic crawler
Our Service
Pre-Sales Service
* Inquiry and consulting support of pile driver.
* Sample testing support for the pile press machine.
* View our Factory.
After-Sales Service
* Training how to instal the pile pressing machine, training how to use the pile driver machine.
* Engineers available to service machinery overseas.
