single jet brass water meter digital price water meter mechanism OEM customization
single jet brass water meter digital price water meter mechanism OEM customization
single jet brass water meter digital price water meter mechanism OEM customization
single jet brass water meter digital price water meter mechanism OEM customization
single jet brass water meter digital price water meter mechanism OEM customization
single jet brass water meter digital price water meter mechanism OEM customization
single jet brass water meter digital price water meter mechanism OEM customization
single jet brass water meter digital price water meter mechanism OEM customization

single jet brass water meter digital price water meter mechanism OEM customization

FOB Reference Price: Get Latest Price
≥5 Pieces
US $30
≥50 Pieces
US $28
≥100 Pieces
US $26
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
XTZY
Model Number:
LXSY
Material:
Brass Body
Standard:
ISO-9001
Color:
White
Name:
XTZY
Accuracy:
class 2
Communication mode:
RF Card
Nominal Diameter:
DN15-DN500
Product name:
Digital Ultrasonic Water Meter
Size:
DN15 20 25

Quick Details

Warranty:
3 years
Type:
Prepaid water meters
Place of Origin:
Anhui, China
Brand Name:
XTZY
Model Number:
LXSY
Material:
Brass Body
Standard:
ISO-9001
Color:
White
Name:
XTZY
Accuracy:
class 2
Communication mode:
RF Card
Nominal Diameter:
DN15-DN500
Product name:
Digital Ultrasonic Water Meter
Size:
DN15 20 25
Product Overview

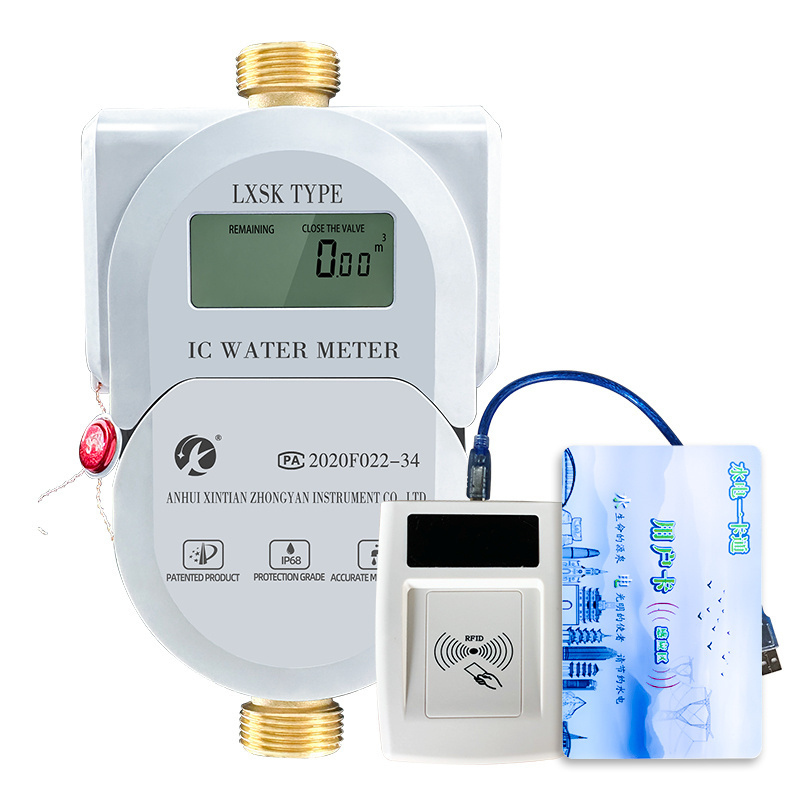

IC card RF water meter

The LXSY series card type prepaid smart water meters comply with national standards GB/T778.1~3-2007 and industry standards CJ/J133-2007, and the factory inspection procedures follow JJG225-2009.
FEATURES AT A GLANCE
Prepaid function : Users buy water first before using it, and close the valve to stop water if they owe.
One card function : One card enables the control of electricity and water meters.
Display synchronization function : The LCD display is synchronized with the mechanical display. Even if there is a circuit malfunction and the LCD cannot be displayed, it can refer to the mechanical display.
Reminder alarm function : Battery undervoltage, insufficient available water, strong magnetic interference, and other fault information will prompt an alarm on the LCD.
Data upload function : Every time a user buys water, they will bring relevant information back to the management system, allowing the management party to understand the user's water usage and table status.
Figure 1
Figure 2
Figure 3
PRODUCT SPECIFICATIONS
Project
Technical Parameter
Data
Nominal diameter DN
15
20
25
32~150
Minimum flow Q1 (m³/h)
0.03
0.05
0.07
0.12~16
Boundary flow Q2 (m³/h)
0.048
0.08
0.28
0.48~64
Common flow rate Q3 (m³/h)
2.5
4
6.3
12~400
Overall dimensions (mm) (Long × wide × High)
110×83×112
130×83×112
160×83×112
See actual size
Connecting thread
G1/2
G1
G1 1 /4
DN32:G1 1 /2DN40:G1 3 /4
DN50 and above are flange connections
Maximum reading of flow rate (m³)
99999.9
60kN
Accuracy Class
Level 2
6750ml
Pressure Loss
<25kPa
500N.m
Working Pressure (Mpa)
≤1MPa
Conditions of Use
Medium temperature of cold water meter: 0 ℃~40 ℃; Medium temperature of hot water meter: 0-90 ℃; Relative temperature
Battery type and voltage
Lithium battery: 3.0V - small caliber meter; 3.6V - Electric water meter; 7.2V-large caliber alkaline battery: 4.5V-3 No. 5batteries
Installation method
Horizontal installation (horizontal meter) or vertical installation (vertical meter)
Display number of digits
6 Digits
PRODUCT CONFIGURATION
All copper based meter
All copper joint
Water-tight watch case
