Quick Details
-
Product name:
-

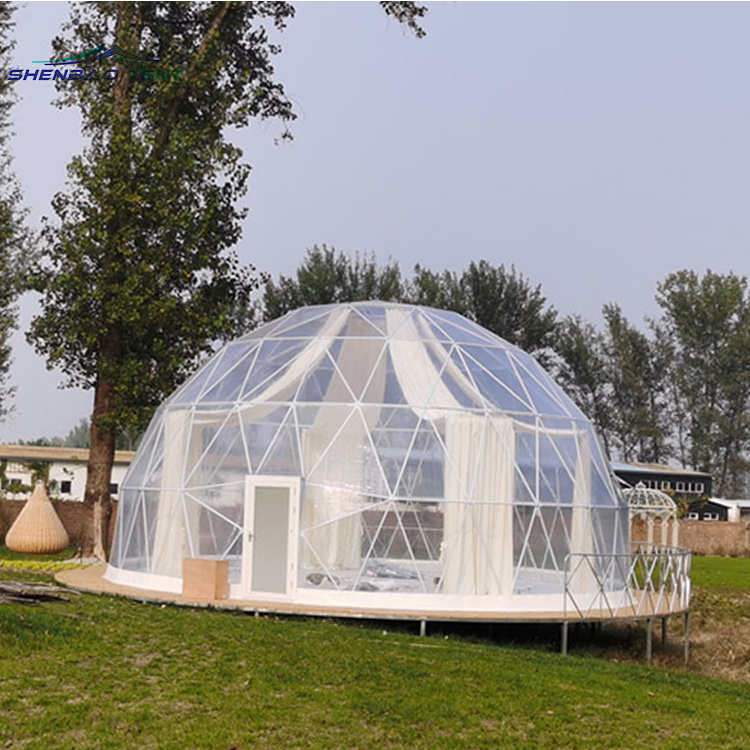

Waterproof Geodesic Dome Tent for Party Events outside
-
Frame material:
-
hot-dip galvanized steel pipes
-
Diameter Size:
-
3,5,6,8,10,15,20,25m,30m,customized
-
Side Wall material:
-
PVC Walls,ABS wall,glass wall
-
Color:
-
white,red,yellow,optional
-
Warranty time:
-
1 years
-
Usage:
-
Outdoor Party,exhibition,event,cenemony,wedding
-
Feature:
-
stable structure,long life ,100% use room
-
Application:
-
Event,camping,exhibition and so on
Quick Details
-
Brand Name:
-
SHENBAO, SHENBAO
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
DT-01
-
Product name:
-
Waterproof Geodesic Dome Tent for Party Events outside
-
Frame material:
-
hot-dip galvanized steel pipes
-
Diameter Size:
-
3,5,6,8,10,15,20,25m,30m,customized
-
Side Wall material:
-
PVC Walls,ABS wall,glass wall
-
Color:
-
white,red,yellow,optional
-
Warranty time:
-
1 years
-
Usage:
-
Outdoor Party,exhibition,event,cenemony,wedding
-
Feature:
-
stable structure,long life ,100% use room
-
Application:
-
Event,camping,exhibition and so on
Products Description
Product Paramenters
|
Specification
|
|
|
|
|
||||
|
Size
|
Area
|
Height
|
Tube Size
|
Packing weight
|
||||
|
3m
|
7.68m2
|
1.77m
|
Ø25*1.5mm
|
|
||||
|
4m
|
12.56m2
|
2.36m
|
|
194
|
||||
|
5m
|
19.63m2
|
2.95m
|
|
273.65
|
||||
|
6m
|
28.27m2
|
3.54m
|
|
320
|
||||
|
7m
|
38.48m2
|
4.13m
|
|
392
|
||||
|
8m
|
50.26m2
|
4.72m
|
|
442
|
||||
|
10m
|
78.53m2
|
5.9m
|
|
605
|
||||
|
12m
|
113.09m2
|
6m
|
Ø32*2.0mm
|
1209
|
||||
|
15m
|
176.71m2
|
7.5m
|
|
2094
|
||||
|
20m
|
314.15m2
|
10m
|
Ø42*2.0mm
|
3641
|
||||
|
25m
|
490.87m2
|
12.5m
|
|
4546
|
||||
|
30m
|
706.85m2
|
15m
|
Ø48*2.0mm(Built-in reinforced 40 tubes)
|
11966
|
||||
|
35m
|
962.11m2
|
17.5m
|
|
|
||||
|
40m
|
1256.63m2
|
20m
|
Ø60*2.5mm(Built-in reinforced 48 tubes)
|
25299
|
||||
|
45m
|
1590.43m2
|
22.5m
|
|
|
||||
|
50m
|
1963.49m2
|
25m
|
|
|
||||
Characteristic of the tent
1.The frame consists of high-quality aluminum profiles and steel structure,which is solid and safe.
2.Sunshade cover made of high grade synthetic fiber plus double-layer PVC material has the advantages of high strength,wind resistance,rainproof,sunproof,flame retardant and so on.
3.Easy to install and disassembled,which is easy for transportation and storage.
4.Not need supporting pillars,modular structure,can be built according to the site.
Recommend Products
Why Choose Us
1)Prepare tools:expansion screws,washers,hex screws,wrenches,bases,fittings
2)Classification of pipe fittings（There are many types of pipe fittings.There are No.1 pipe,No.2 pipe,4,5,6...)
3)Install the fittings according to the serial number of the plan.
