Quick Details
-
Width:
-
<165mm
-
Diameter:
-
16-20inch
-
Skid steer:
-
S130-S205
-
CASE:
-
410-420, 1835C,1838, 1840
-
GEHL:
-
4515, 4610, 4615, 4625, 4635, 4835, 5625, 5635, 6635
-
JOHN DEER:
-
240, 313, 315, 317, 675, 4475, 5575, 6675, 7775
-
MELORE SKID STEER:
-
S130-S205, 742, 743, 753, 753L, 763, 773, 7753
-
MUSTANG:
-
920, 930A, 940
-
NEW HOLLAND:
-
L-465,L-553,L-555,L-565,L-585,LS-140,LS-150,LS-160,LS-170,LX-465LX-485
-
RAM ROD:
-
516, 584
Quick Details
-
Warranty:
-
.
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TNR
-
Width:
-
<165mm
-
Diameter:
-
16-20inch
-
Skid steer:
-
S130-S205
-
CASE:
-
410-420, 1835C,1838, 1840
-
GEHL:
-
4515, 4610, 4615, 4625, 4635, 4835, 5625, 5635, 6635
-
JOHN DEER:
-
240, 313, 315, 317, 675, 4475, 5575, 6675, 7775
-
MELORE SKID STEER:
-
S130-S205, 742, 743, 753, 753L, 763, 773, 7753
-
MUSTANG:
-
920, 930A, 940
-
NEW HOLLAND:
-
L-465,L-553,L-555,L-565,L-585,LS-140,LS-150,LS-160,LS-170,LX-465LX-485
-
RAM ROD:
-
516, 584

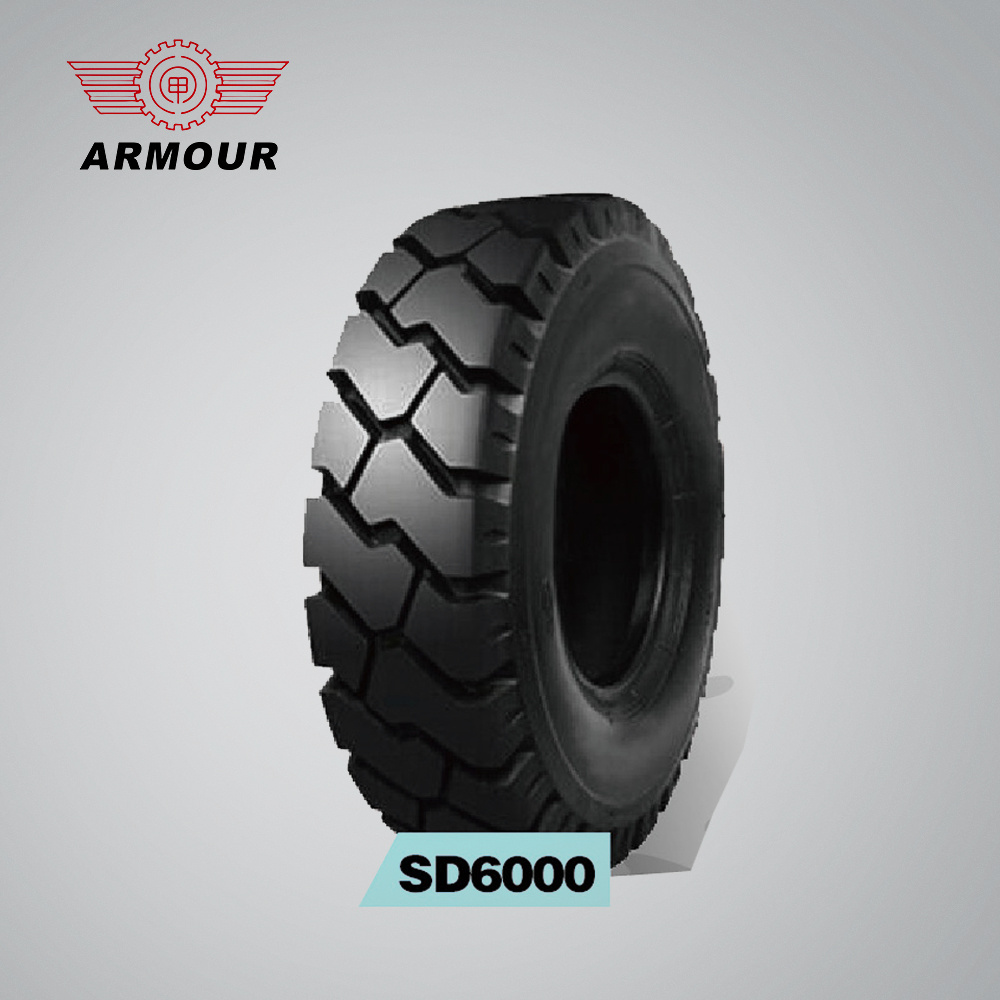

Forklift tire 27x10-12, 32x12.1-15
Pattern Details:
Features:
* Self-cleaning, open tread design for reduced maintenance time
* Extra large, tapered lugs for traction in slippery conditions and maximum wear life
* Reinforced dual sidewall for superior wear and resistance to cuts and abrasions
* Heavy rim guard reduces potential for damage to tire bead and wheel flange
* Improved productivity
* A smooth, stable ride for operator comfort
Applications:
* Dry Soil
* Wet Soil
* Rocky Soil
* Asphalt
Specifications:
| Size | PR |
Overall
Diameter |
Section
Width |
Standard
Rim |
pressure | Load | type |
| 27x10-12 | 18 | 682 | 254 | 8 | 1030 | 3355 | TT |
| 32x12.1-15 | 24 | 826 | 305 | 9.75 | 1030 | 4240 | TT |
Equivalent Brands:
| Equivalent Brands: | Part No. |
| Solideal | |
| Goodyear Sure Grip Lug | |
| Titan Contractor FWD I-3 | |
| CAT Premium Conventional Tires | 185-9932 |
| 185-9933 | |
| 238-7740 | |
| 216-9111 | |
| 216-9112 | |
| 216-9113 | |
| 208-8512 | |
| 281-6590 | |
| 281-6591 | |
| CAT XD Tires | 222-3962 |
| 222-3963 |
MAIN Market
| Aera | % |
| Asia | 0 |
| Mideast | 30 |
| Africa | 20 |
| North America | 10 |
| South America | 20 |
| Europe | 0 |
| Australia | 20 |
| Others | 0 |
Safty Instructions:
The tire itself , the following factors are very important:
- Basic workmanship and materials.
- Air pressure maintenance
- Tyre matching
- A rotation policy
- Tyre records/analysis
- Repair procedures
Working site conditions , Including the following factors:
1. Type of equipment
2. Weight of distribution
3. Speed
4. Haul length
5. Wheel position
6. Ambient temperature
7. Underfoot conditions
8. Operator habits
Tips for using tires:
- Keep your tires clean by simply hosing them down.
- Remove embedded rocks
- Wash off dirt
- Always use approved tire and rim combinations for sizes and contours.
- Monitor and adjust air pressure, never exceed manufacturer’s recommended tire inflation pressure.
- Consider the weight of your load and keep it balanced
- Don’t spin the tires when digging.
- Rotate tires that wear faster , r eplace any tires that appear to show signs of excessive wear, are damaged, or defective in any way,
