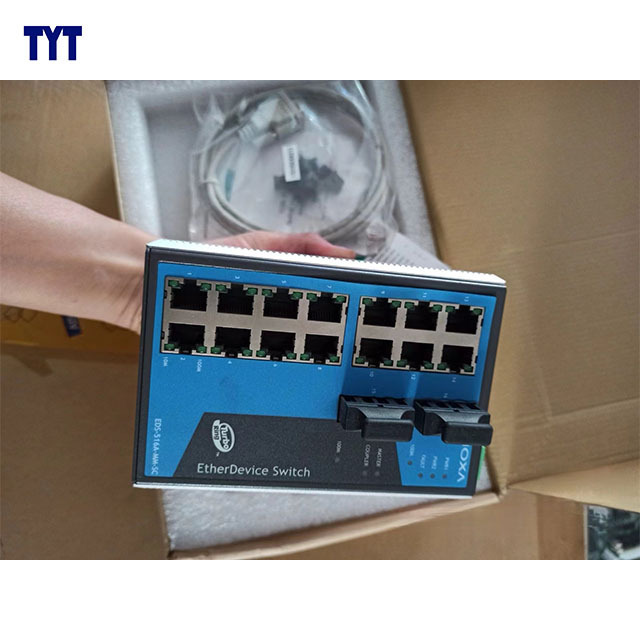

MOXA Ethernet switch EDS-516A-MM-SC

Input/Output Interface

Alarm Contact Channels

Resistive load: 1 A @ 24 VDC

Digital Inputs

+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA

Ethernet Interface

14
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

100BaseFX Ports (multi-mode SC connector)

Standards

IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.1X for authentication
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP

Switch Properties

IGMP Groups

MAC Table Size

Max. No. of VLANs

Packet Buffer Size

VLAN ID Range

94 x 135 x 142.7 mm (3.7 x 5.31 x 5.62 in)

1586 g (3.50 lb)
