Quick Details
-
Model Number:
-
D341X-16Q
-
Brand Name:
-
RCV
Quick Details
-
Port Size:
-
DN50-DN2200
-
Warranty:
-
2 years
-
Place of Origin:
-
Anhui, China
-
Model Number:
-
D341X-16Q
-
Brand Name:
-
RCV
Products Description

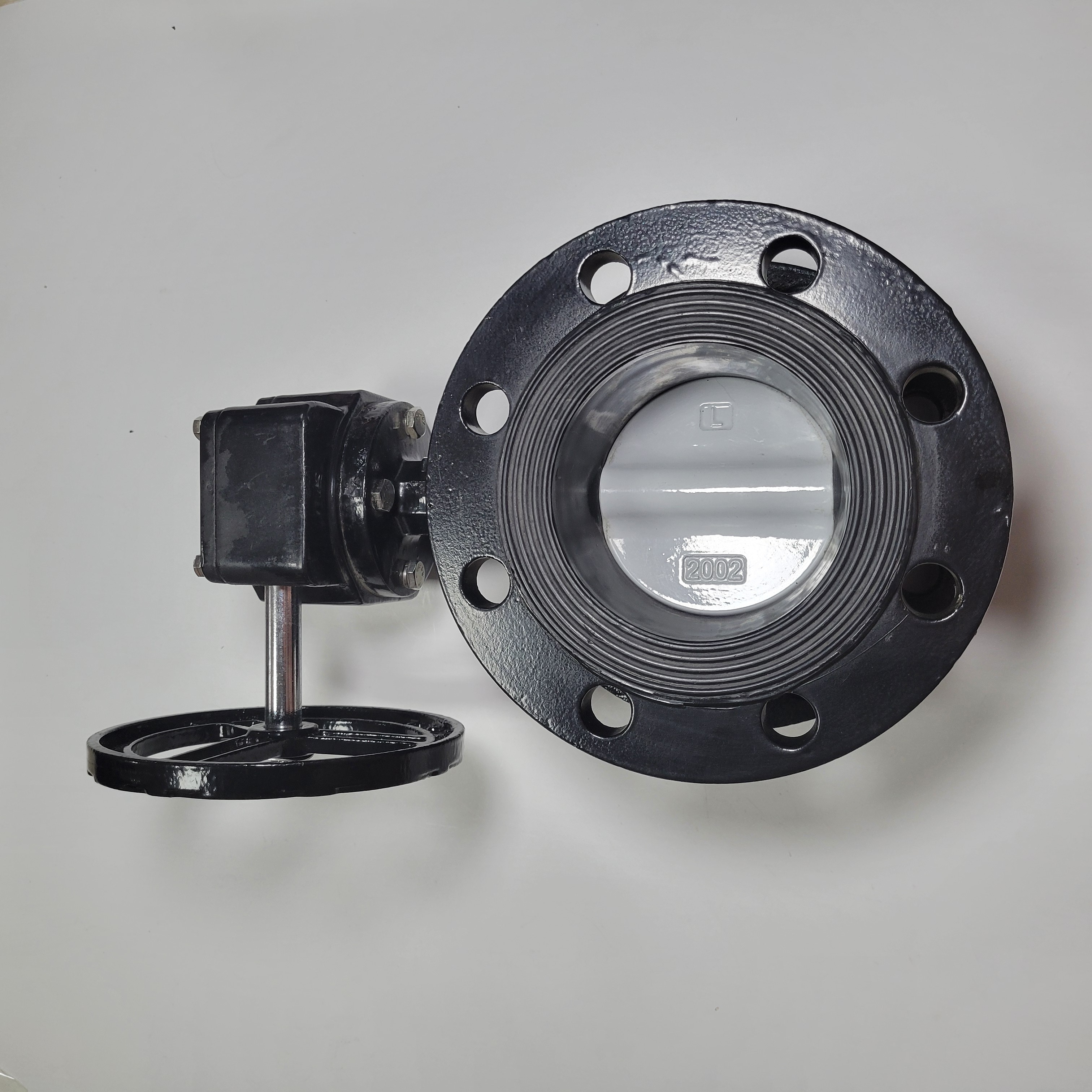

D341X-16Q Flanged Worm Gear Butterfly Valve is installed in the diameter direction of the dry pipeline. Flanged Worm Gear Butterfly Valve is simple in structure, small in size and light in weight, and only consists of a few parts. And it only needs to rotate 90° to open and close quickly, the operation is simple, and the valve has good fluid control characteristics. When the butterfly valve is in the fully open position, the thickness of the butterfly plate is the only resistance when the medium flows through the valve body, so the pressure drop generated by the valve is very small, so it has better flow control characteristics.
The valve D341X-16Q is suitable for pipelines conveying various corrosive and non-corrosive fluid media in engineering systems such as producer, coal gas, natural gas, liquefied petroleum gas, city gas, hot and cold air, chemical smelting and power generation environmental protection, building water supply and drainage, etc. Regulates and interrupts the flow of media.
The valve D341X-16Q is suitable for pipelines conveying various corrosive and non-corrosive fluid media in engineering systems such as producer, coal gas, natural gas, liquefied petroleum gas, city gas, hot and cold air, chemical smelting and power generation environmental protection, building water supply and drainage, etc. Regulates and interrupts the flow of media.
Features
1. The opening and closing is convenient and quick, labor-saving, and the fluid resistance is small, which can be operated
frequently.
2. Simple structure, small size, short structure length, small volume and light weight, suitable for large-diameter valves.
3. The mud can be transported, and the liquid accumulation at the pipe mouth is the least.
4. Under low pressure, good sealing can be achieved.
5. When fully open, the effective flow area of the valve seat channel is larger and the fluid resistance is smaller.
6. The opening and closing torque is small, because the discs on both sides of the rotating shaft are basically equally affected by the medium, and the direction of the torque is opposite, so the opening and closing is more labor-saving.
7. The sealing surface material is generally made of rubber and plastic, so the lowpressure sealing performance is good.
8. Good adjustment performance and easy installation.
9. The operation is flexible and labor-saving, and manual, electric, pneumatic and hydraulic methods can be selected.
frequently.
2. Simple structure, small size, short structure length, small volume and light weight, suitable for large-diameter valves.
3. The mud can be transported, and the liquid accumulation at the pipe mouth is the least.
4. Under low pressure, good sealing can be achieved.
5. When fully open, the effective flow area of the valve seat channel is larger and the fluid resistance is smaller.
6. The opening and closing torque is small, because the discs on both sides of the rotating shaft are basically equally affected by the medium, and the direction of the torque is opposite, so the opening and closing is more labor-saving.
7. The sealing surface material is generally made of rubber and plastic, so the lowpressure sealing performance is good.
8. Good adjustment performance and easy installation.
9. The operation is flexible and labor-saving, and manual, electric, pneumatic and hydraulic methods can be selected.
Technical parameter
Details Images
Application Area
Factory Show
