High Quality Automatic A4 Paper Making Machine A4 Copier Paper Cutting Machine price
High Quality Automatic A4 Paper Making Machine A4 Copier Paper Cutting Machine price
High Quality Automatic A4 Paper Making Machine A4 Copier Paper Cutting Machine price
High Quality Automatic A4 Paper Making Machine A4 Copier Paper Cutting Machine price
High Quality Automatic A4 Paper Making Machine A4 Copier Paper Cutting Machine price
High Quality Automatic A4 Paper Making Machine A4 Copier Paper Cutting Machine price
High Quality Automatic A4 Paper Making Machine A4 Copier Paper Cutting Machine price
High Quality Automatic A4 Paper Making Machine A4 Copier Paper Cutting Machine price

High Quality Automatic A4 Paper Making Machine A4 Copier Paper Cutting Machine price

FOB Reference Price: Get Latest Price
≥1 Sets
US $14500
≥3 Sets
US $12500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
WanJia
Voltage:
220V/380V
Dimension(L*W*H):
15200*1950*2550mm
Weight:
8000 kg
Marketing Type:
Hot Product
PLC Brand:
Panasonic
After-sales Service Provided:
Online Technical Support
Application:
A4 Cutting Paper Machine
Function:
Slitting Rewinding JUMBO Paper Roll
Advantage:
High Stability
Automatic Grade:
Full-Automatic
Certification:
CE SGS
Color:
Customized Color
Finished Products:
A4 Paper /Cultural Paper/Office Paper
Feature:
Long Life
Precision:
0.2mm

Quick Details

Type:
Paper Cutting Machine
Production Capacity:
10-180 times/min
Max. workable width:
1100mm
Place of Origin:
Zhejiang, China
Brand Name:
WanJia
Voltage:
220V/380V
Dimension(L*W*H):
15200*1950*2550mm
Weight:
8000 kg
Marketing Type:
Hot Product
PLC Brand:
Panasonic
After-sales Service Provided:
Online Technical Support
Application:
A4 Cutting Paper Machine
Function:
Slitting Rewinding JUMBO Paper Roll
Advantage:
High Stability
Automatic Grade:
Full-Automatic
Certification:
CE SGS
Color:
Customized Color
Finished Products:
A4 Paper /Cultural Paper/Office Paper
Feature:
Long Life
Precision:
0.2mm
PRODUCT DESCRIPTION

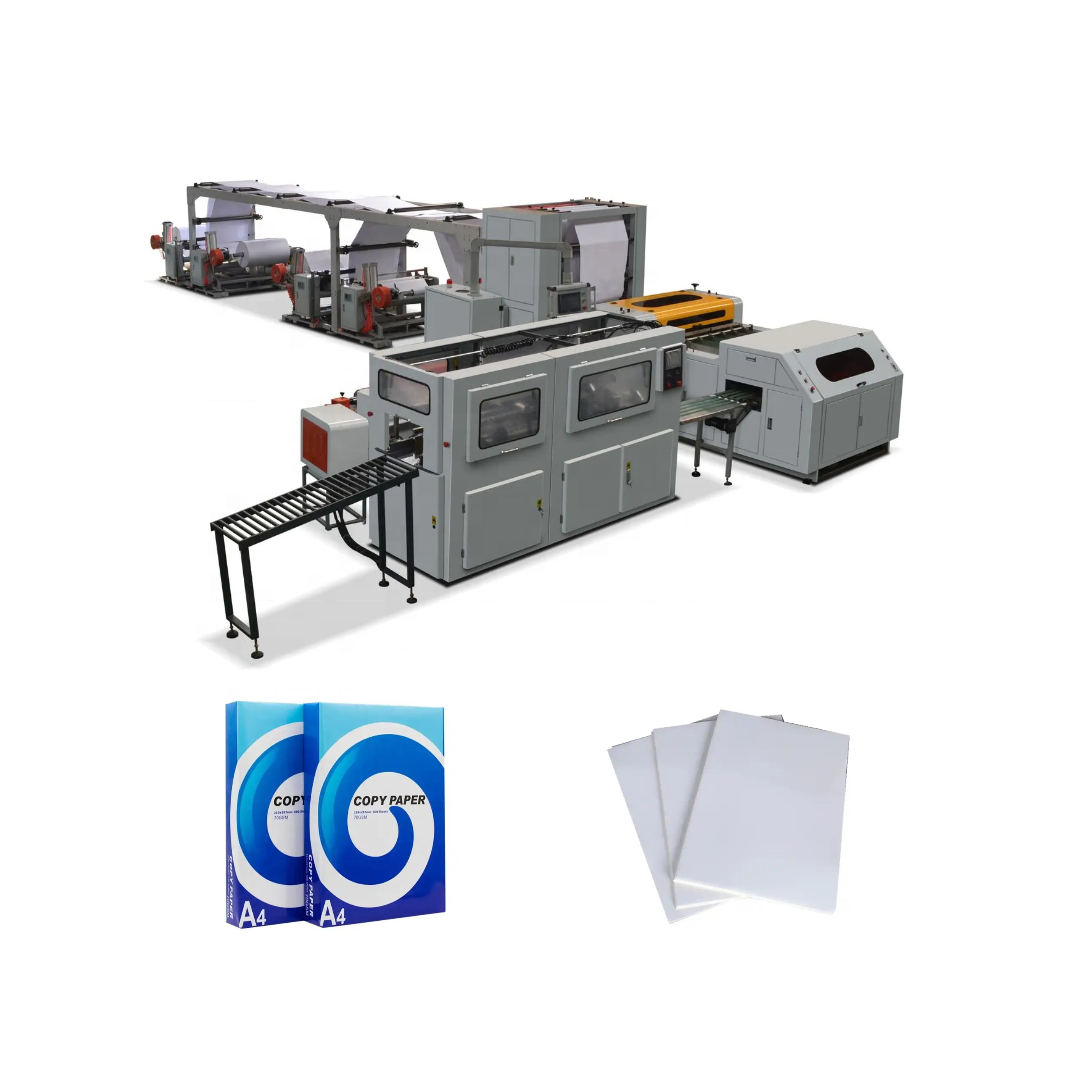

This machine is suitable for cutting big rolling packaging materials such as office, paper-plastic, photo paper material, etc to A4 size and packing in line.
PRODUCT VIDEO
PRODUCT PARAMENTERS
Model
WJA4-1100
WJA4-1400
Max. width of cutting
1100mm
1400mm
Max diameter of material
∅1400mm
∅1400mm
Min. width of cutting
50mm
50mm
Length of cutting
20-400mm
20-400mm
Speed
10-180times/min
10-180times/min
Precision
±0.2mm
±0.2mm
Total power
15kw
17kw
Weight
8000kg
8600kg
Overall diamension (LxWxH)
15200x1950x2550mm
15200x2200x2550mm
PRODUCT FEATURES
1, It adopts PLC touch screen control, servo motor for controlling constant-length cutting.
2, It adopts pneumatic, photoelectric sensor for controlling transmission system, with photo, electric, gas together, it has the functions of easy operation, high precision, good stability, low noise.
3, This machine has the functions of the frequency converter timing device, automatic counting, stop working by alarm magnetic powder tension control, can cut vertically, adopt blower to get rid of waste.
4, This machine can be with 1 roll. 2 rolls. 4 rolls loading system.
Drawing Process
PRODUCT DETAILS
Unwind Stand
Diameter of the paper roll: Max. Ф1400mm
Width of the paper roll: Max. Ф1100mm
Paper rack’s material: Steel
Clutch device: Pneumatic Braker and control
Clip arm’s adjustment: Manual adjust by oil pressure
Paper core demanding: 3”(76.2mm) or 6”(152.4mm) or according to the client’s need
Automatic tension control system
When the paper through inductor, that automatic feedback to the PLC control system to increase brake load, increase or reduce the tension that control the paper tension automatically.

High precision cutting knife system

Upper and lower knives are rotary make the cutting accuracy isvery precision.
Anti-curve device Include one set of square bar and
steelwheel. When the curve paper through paper edge unit that can adjust the paper square and let it flat.

Optional choice for Pneumatic round knives

slitting knivesUpper slitting knife take by air pressure and spring. Lower knife connect with bear drive(the diameter is Ф180mm ) and move with spring. The upper and lower round knife is made by SKH. The lower slitting knife (diameter is Ф200mm) and drive with in-phase belts. The lower slitting knife is 6 groups, each group have two knife edge.

Transporting System
Transporting by level and overlapping deviceHigh speed transporting belt and press wheel. Upper and lowertransport belt
corresponding pressure paper, automatic tension and close system. Static removal device(Include static removal bar and Negative ion generator)
Wrapping paper system
Automatic packing for finished A3 or A4 paper.

PLC touch screen

Finished wrapping paper transporting

Electrisity box

Finished Products
