Sensitar can provide a key solution according to the specific needs of your process or equipment control for you . Engineers, electrical engineers as well as service team in TinWing control department are experts in both the full system and the upgrading. When you purchase a TinWing control system meaning that you received a key overall solution.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Sensitar
-
Dimension(L*W*H):
-
Customized
-
Capacity:
-
Customized
-
Weight:
-
1500
-
Inner Material:
-
stainless steel
-
Outer Material:
-
stainless steel
-
Design Pressure(MPa):
-
12
-
Design Standard:
-
CE ASME
-
Working Temperature(℃):
-
0 - 270 ℃
-
After-sales Service Provided:
-
Engineers available
-
Product name:
-
Autoclave
-
Application:
-
Lpg Storage
-
Filling medium:
-
Liquid Petroleum Gas (propane)
-
Color:
-
Customer's Request
-
Advantage:
-
High Efficiency
-
Design pressure:
-
0.5-0.75Mpa
-
Design temp:
-
130-150℃
-
Material:
-
Carbon Steel
Quick Details
-
Volume (m³):
-
Customized
-
Max Working Pressure(MPa):
-
0.75 MPa
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sensitar
-
Dimension(L*W*H):
-
Customized
-
Capacity:
-
Customized
-
Weight:
-
1500
-
Inner Material:
-
stainless steel
-
Outer Material:
-
stainless steel
-
Design Pressure(MPa):
-
12
-
Design Standard:
-
CE ASME
-
Working Temperature(℃):
-
0 - 270 ℃
-
After-sales Service Provided:
-
Engineers available
-
Product name:
-
Autoclave
-
Application:
-
Lpg Storage
-
Filling medium:
-
Liquid Petroleum Gas (propane)
-
Color:
-
Customer's Request
-
Advantage:
-
High Efficiency
-
Design pressure:
-
0.5-0.75Mpa
-
Design temp:
-
130-150℃
-
Material:
-
Carbon Steel
Products Description

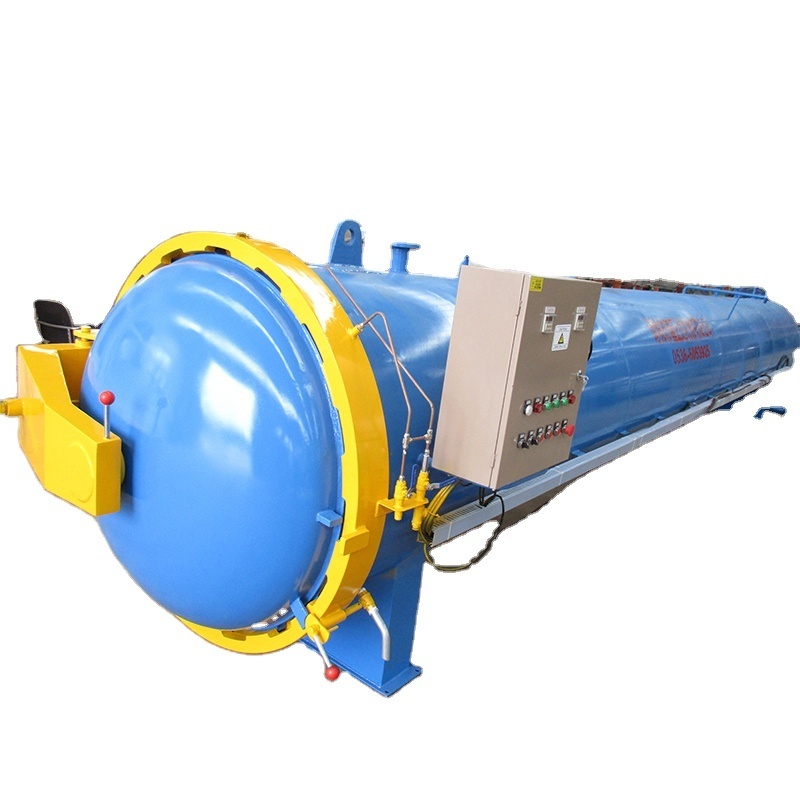

Industrial Composite Material High Pressure Autoclave with High Efficiency
The composite material autoclave mainly used to the composite materials military products, space vehicle by high temperature and high pressure. It also can be applied to strengthen the carbon fiber, glass fiber, boron fiber and ect. More over, it also can change the metallic / nonmetallic joint components, such as airplane door, fairing, airborne radar and so on.
System Composition:
Autoclave is able to achieve temperature, pressure, vacuum, cooling, process parameters such as the timing of the cycle, real-time online control system equipment, consisting mainly consists of the following subsystems:
( 1 ) tank : the tank , the tank door mechanism, motor temperature, duct board insulation layer to form a high pressure, high temperature of the tank ;
( 2 ) Safety interlock device: automatic interlock by the pressure, manual interlocking, high pressure alarm device components.
( 3 ) Open the door device: Open the door manual electric dual-use design, the normal power outage shut down the tank door opens, the door is the most advanced way.
( 4 ) sealing device : cans door using silicone inflatable seals, high pressure 400 °. Never worn.
( 5 ) Pressure system : the compressor, tank, pressure control valves, piping, pressure transmitters and pressure gauges and other components transmission and control systems;
( 6 ) Heating system: stainless steel heating pipes, heat fan, duct board, insulation, temperature control system components, the maximum temperature of the heating power to meet the requirements of the cavity and the heating rate requirements;
( 7 ) Temperature cycling system: circulating fan, the air guide plate, the shroud component, accelerate heat transfer and circulation, a uniform temperature field;
( 8 ) Vacuum system: vacuum pumps, piping, vacuum gauge and vacuum valve composed for the package provides composite preform vacuum conditions;
( 9 ) Automatic control system: Siemens PLC control system, pressure, temperature, cooling the whole process parameters such as high-precision control and real-time recording.
|
TYPE
|
1600*2500
|
2000*3500
|
2500*5500
|
3000*6500
|
3500*7500
|
4000*8500
|
|
MWP
|
3.8MPa
|
1.0MPa
|
1.0MPa
|
1.5MPa
|
1.2MPa
|
1.2MPa
|
|
Design Pressure
|
4.0MPa
|
1.2MPa
|
1.2MPa
|
1.6MPa
|
1.3MPa
|
1.3MPa
|
|
Maximum Working Temperature
|
0-400
|
0-250
|
250
|
0-250
|
250
|
250
|
|
Design Temperature
|
420
|
270
|
270
|
270
|
270
|
270
|
|
Heat Insulation Form
|
Internal insulation, 200mm
|
Internal insulation, 150mm
|
Internal insulation, 150mm
|
Internal insulation, 150mm
|
Internal insulation, 150mm
|
Internal insulation, 150mm
|
|
Total Power
|
60kw
|
90kw
|
210kw
|
330kw
|
510kw
|
780kw
|
1.Powerful database system
2.Efficient network access
3.Control of multiple devices and stable dual computer redundancy structure
4.Recipe management efficient
Application Fields
Packing & Logistic
|
Packaging Details
|
Standard packing of Poultry waste rendering plant
|
|
|
|
|||
|
Port
|
Qingdao
|
|
|
|
|||
|
Lead Time
|
Shipped in 45 days after payment
|
|
|
|
|||
We usually pack our products by standard export cartons as master carton. We always choose the best and safe packaging material to make sure your orders won't be damaged during delivery.
