Quick Details
-
Product name:
-
Toe lasting machine
-
Color:
-
Blue/gray/cutsomized
-
Pincer:
-
7/9 pincers
-
Capacity:
-
1600pairs/8h
-
Packing dimensions:
-
1950*1100*2224mm
-
After Warranty Service:
-
Video technical support/online
-
Voltage:
-
380V/50Hz
-
Power:
-
2kw
-
Machine weight:
-
1190kg
-
Oil capacity:
-
80kg
Quick Details
-
Weight (KG):
-
1320
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
yutai
-
Product name:
-
Toe lasting machine
-
Color:
-
Blue/gray/cutsomized
-
Pincer:
-
7/9 pincers
-
Capacity:
-
1600pairs/8h
-
Packing dimensions:
-
1950*1100*2224mm
-
After Warranty Service:
-
Video technical support/online
-
Voltage:
-
380V/50Hz
-
Power:
-
2kw
-
Machine weight:
-
1190kg
-
Oil capacity:
-
80kg
Product Description
YT-737A

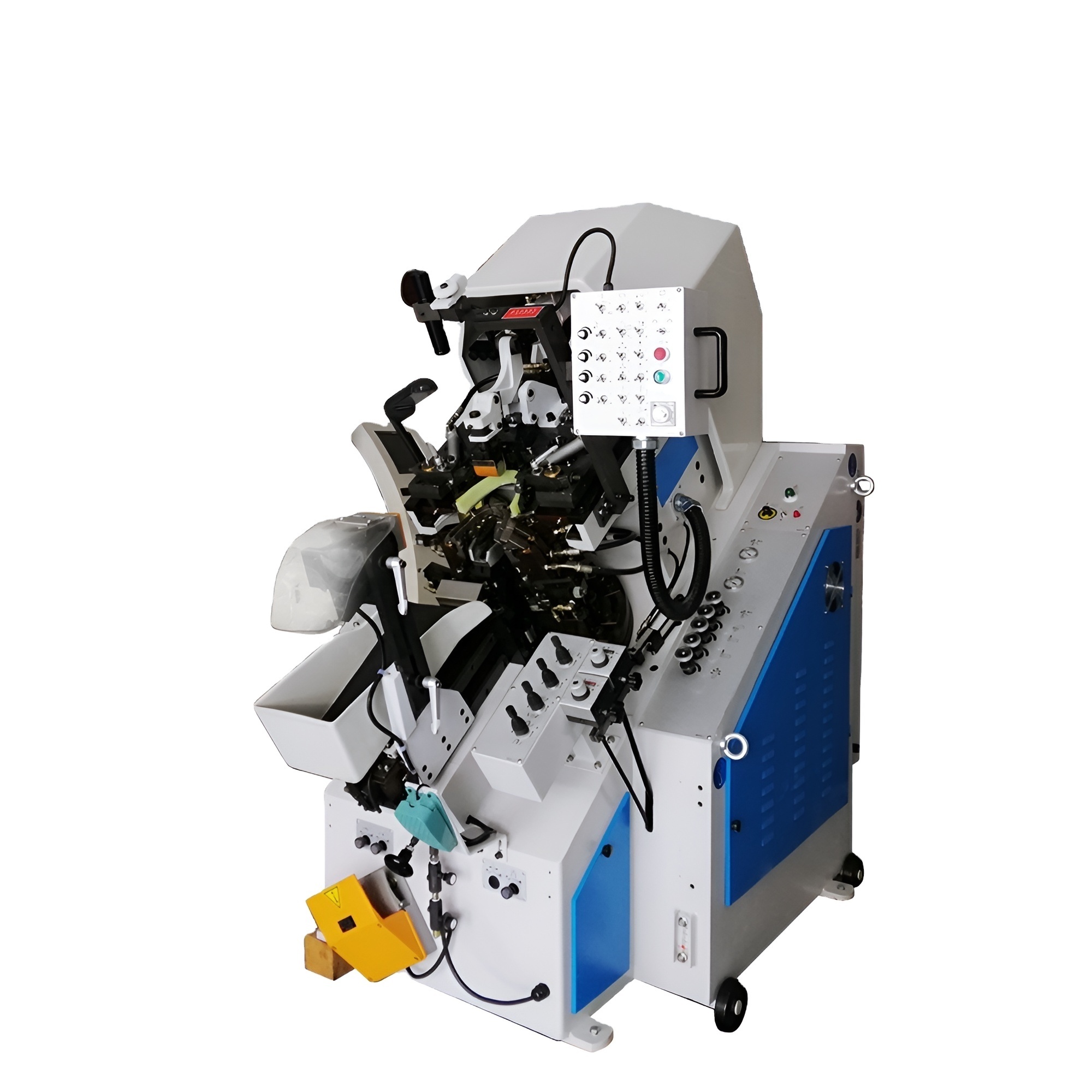

Hydraulic Automatic 9 Pincers Toe Lasting Machine
Features:
This machine is the fully hydraulic operated system.
7 fine adjustable and quick-exchangeable pincers. The automatic turning inward of the last pincers left and right, increase the lasting perfection of inner part. Each set of pincers (left and right) can be setting with automatic pulling or manual operated, preventing the upper made of different materials is only pulled on one side.
The upward stroke of the last support can be adjusted from the knob outside the machine.
There are two step upward movement functions for the last support, preventing the slipped of the last when combined with the movement of the heel support.
The toe pusher mechanism is designed with adjustable two step pressure. During the movement of the initial pressure, there are two ways (pressure controlled or position controlled) can be set for the best operation
The forward movement of the wiper can be adjusted as no stepped variable speed controlled. The standard equipment: Auxiliary wiper mechanism, Auxiliary side pusher mechanism and Toe projector mechanism.
Technical Parameter
|
Name
|
Hydraulic automatic toe lasting machine
|
|
Model
|
YT-737A
|
|
power
|
2kw
|
|
Oil Pressure
|
50kg/cm²
|
|
Video outgoing-inspection
|
Yes
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Motor, Heating tube, thermostat
|
|
Place of Origin
|
Foshan.Guangdong.China
|
|
Brand Name
|
Yutai
|
|
After-sales Service Provided
|
Free spare parts, Field maintenance and repair service, Video technical support, Online support
|
|
Warranty
|
2 Years
|
|
Application
|
shoe making Assembly Line
|
|
Voltage
|
380V/50Hz
|
|
Machine weight
|
1190kg
|
|
Package weight
|
1320kg
|
|
Machine dimension
|
1850*1000*2020mm
|
|
Package dimension
|
1950*1100*2224mm
|
Machine Pictures
