Quick Details
-
Brand Name:
-
Pomanique
-
Model Number:
-
FZSW series
-
Material:
-
Silicone Rubber
-
Rated voltage:
-
220kV
-
Specified mechanical load:
-
10kN
-
Section length:
-
2440mm
-
Min Arc distance:
-
2080mm
-
Leakage distance:
-
6520mm
-
Lightning impulse withstand voltage:
-
950kV
-
Power frequency withstand voltage (wet):
-
395
-
Color:
-
Grey and Red
Quick Details
-
Voltage:
-
220
-
Size:
-
300
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Pomanique
-
Model Number:
-
FZSW series
-
Material:
-
Silicone Rubber
-
Rated voltage:
-
220kV
-
Specified mechanical load:
-
10kN
-
Section length:
-
2440mm
-
Min Arc distance:
-
2080mm
-
Leakage distance:
-
6520mm
-
Lightning impulse withstand voltage:
-
950kV
-
Power frequency withstand voltage (wet):
-
395
-
Color:
-
Grey and Red

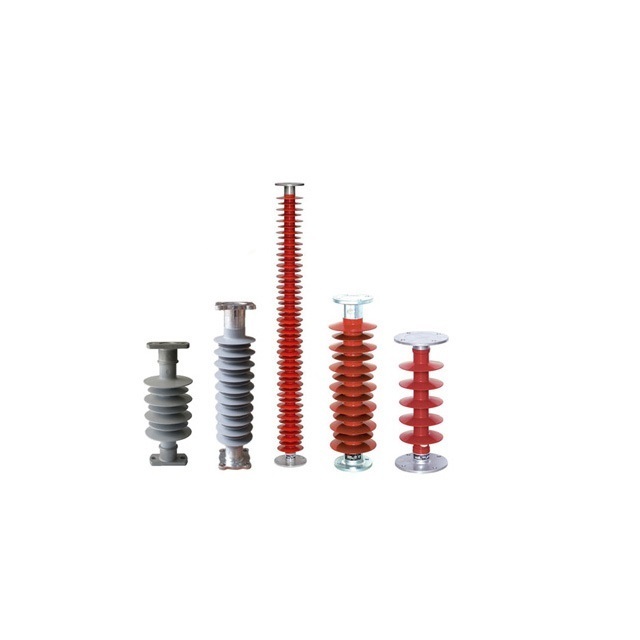

This product is applied in high voltage power line, featuring in good gydrophobicity,anti-ageing,antileakage trace and electric erode proof,tensile strength and bending strength,strong mechanical strength,with good performance in shock resistance good quakeproof & brittle-breakproof,light,weight,easy to installation,and the installation outline of top and base are the same size with porcelainpin type,they can exchange to use each other.
| Type |
Rated Voltage (kV) |
Specified Mechanical Load(kN) |
Section Length H(mm) |
Min Arc Distance (mm) |
Leakage Distance (mm) |
Lightning Impulse Withstand BIL(kV) |
Power Frequency Withstand (wet)(kV) |
Fig No. |
| FZSW-15/5 | 15 | 5 | 245 | 170 | 600 | 105 | 45 | 1 |
| FZSW-24/8 | 24 | 8 | 420 | 320 | 700 | 125 | 50 | 2 |
| FZSW-35/6 | 35 | 6 | 460 | 360 | 900 | 185 | 95 | 2 |
| FZSW-66/6 | 66 | 6 | 770 | 650 | 1930 | 325 | 140 | 2 |
| FZSW-66/8 | 66 | 8 | 770 | 650 | 1940 | 325 | 140 | 2 |
| FZSW-110/6 | 110 | 6 | 1150 | 1050 | 2950 | 325 | 200 | 3 |
| FZSW-138/10 | 138 | 10 | 1220 | 1060 | 3260 | 450 | 200 | 3 |
| FZSW-220/10 | 220 | 10 | 2440 | 2080 | 6520 | 950 | 395 | 3 |
1. MOQ:
Generally if you choose the different products,our minimum order qty.also will be different.
2. Delivery time:
The goods need 30-40 days to be made after receive deposit.
3. Why choose us?
a. We are China Leading manufacturer. We are confident that with our products Quick delivery time, excellent quality and comprehensive superior service we can give our customers complete satisfaction.
b.100% QC inspection before shipping.
c. For large order, engineer can be sent to your country for on-site mainternace instructions.
d. OEM is available.
4.Our 100% Promise:
1. 24 hours online service.
2. We always say FINE to my customer.
3. The above product photos are coming from main production.
4. Thanks and the first cooperation to be expected.
