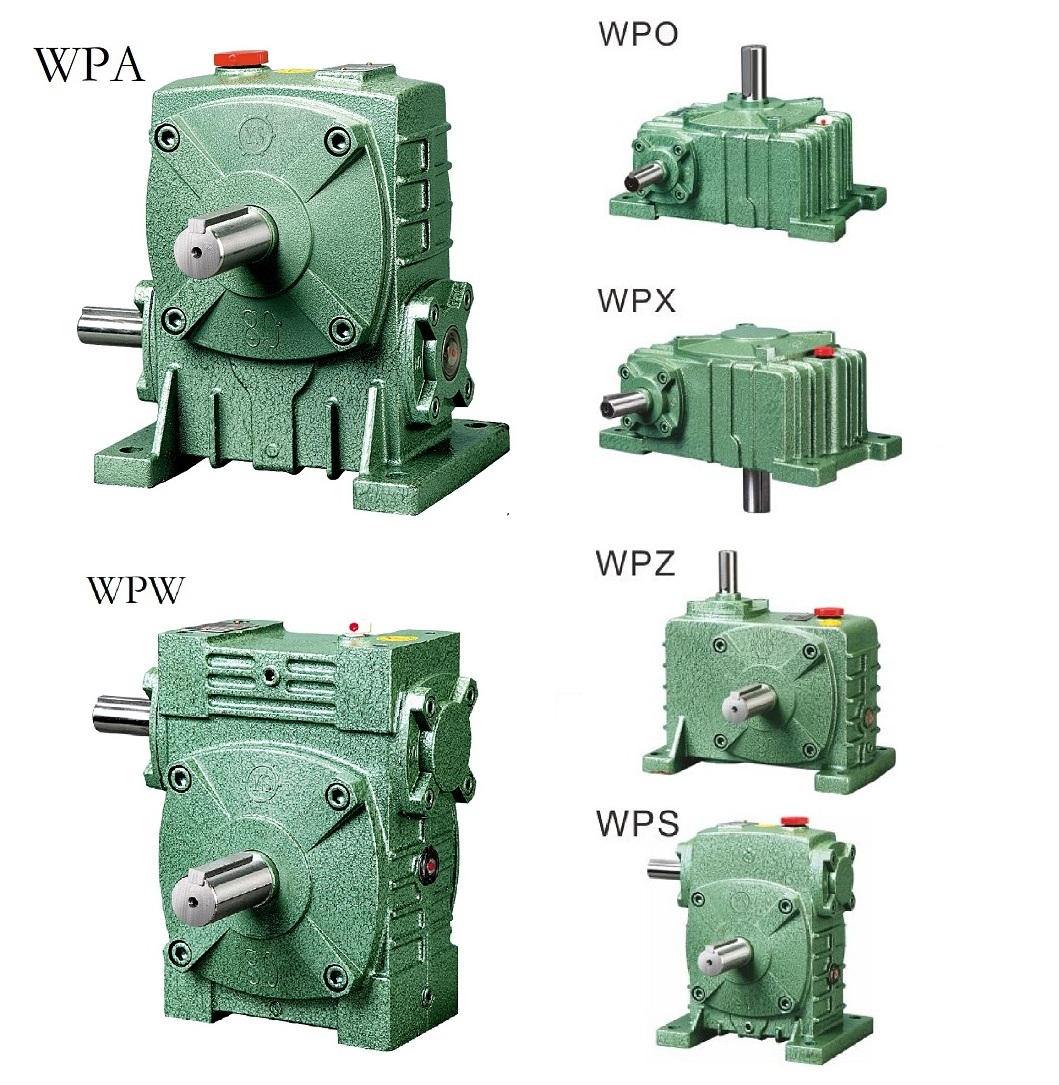

WP WPA series transmission reverse gear motoredutor speed reducer worm variable speed gearbox
WP WPA series transmission reverse gear motoredutor speed reducer worm variable speed gearbox
WP WPA series transmission reverse gear motoredutor speed reducer worm variable speed gearbox
WP WPA series transmission reverse gear motoredutor speed reducer worm variable speed gearbox
WP WPA series transmission reverse gear motoredutor speed reducer worm variable speed gearbox
WP WPA series transmission reverse gear motoredutor speed reducer worm variable speed gearbox
WP WPA series transmission reverse gear motoredutor speed reducer worm variable speed gearbox
WP WPA series transmission reverse gear motoredutor speed reducer worm variable speed gearbox

WP WPA series transmission reverse gear motoredutor speed reducer worm variable speed gearbox

FOB Reference Price: Get Latest Price
≥50 Pieces
US $65
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Output Speed:
10-500rpm
Weight (KG):
50 KG
Place of Origin:
Zhejiang, China
Brand Name:
ever-power
Color:
Customer Request
Housing Material:
Cast Iron
Shaft:
Inline
Heat treatment:
Quenching
Bearing material:
SKF,ZWZ

Quick Details

Gearing Arrangement:
Worm
Output Torque:
up to 5000Nm
Input Speed:
750rpm -2000rpm
Output Speed:
10-500rpm
Weight (KG):
50 KG
Place of Origin:
Zhejiang, China
Brand Name:
ever-power
Color:
Customer Request
Housing Material:
Cast Iron
Shaft:
Inline
Heat treatment:
Quenching
Bearing material:
SKF,ZWZ
Products Description
WP series reducer, worm is made of 45 # high quality steel by heat treatment, and worm wheel is cast with tin bronze. It has good wear resistance, especially in bearing capacity. It is mainly suitable for deceleration transmission of various mechanical equipment such as plastics, metallurgy, beverage, mine, lifting and transportation, chemical construction and so on.
FEATURES
●Drive smoothly, vibration, impact and noise are small, deceleration ratio is large, versatility is wide, and can be used with a variety of mechanical equipment.
●Large transmission ratio can be obtained by single-stage transmission, and the structure is compact. Most types of reducers have better self-locking performance. Braking devices can be saved for mechanical equipment with braking requirements.
●The meshing friction loss between worm tooth and worm gear tooth surface is larger, so the transmission efficiency is lower than that of gear, easy to heat and high temperature.
●Higher requirements for lubrication and cooling.
●Good compatibility, worm gear and worm are manufactured according to national standards, bearing, oil seal and other standard parts are used.
Type
Worm Gear Speed Reducer / Gearbox / Reductor
Model
WMRV 25/30/40/50/63/75/90/110/130/150/185
Color
Customized Color
Packing
Carton, Honey Comb Carton, Wooden Case with Wooden Pallet
Usage
Industrial Machine, Food Stuff, Ceramics, Chemical, Packing, Dyeing, Wood Working, Glass, etc.
Flange
IEC standard flange or customized dimensions
Housing Material
Aluminum&Cast iron
Size
11 sizes(WMRV25~WMRV185)
Power
0.06~22 KW
Nominal torque
≤2548 N.m
Ratio
5~100
Material
Housing: Die-Cast Iron cast
Worm Gear-Copper-10-3#
Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC
Shaft-chromium steel-45#
Usages
Industrial Machine: Food Stuff, Ceramics,CHEMICAL,Packing,Dyeing,
Woodworking,Glass.

HIGH QUALITY OUTPUT SHAFT
New standard axle, multi-precision machining, through rigorous dynamic and static balance test, to ensure low noise and smooth operation of reducer.

PRECISION BEVEL GEAR
20CrMn Ti material – low carbon alloy steel
Imported gear grinding machine processing, high hardness, stable performance.
Vacuum furnace carburizing heat treatment, carburizing layer uniform.

HIGH QUALITY SHELL MATERIAL
The box body is made of HT200 material,which is cleaned by professional screening and washing equipment to ensure that the inner cavity of the box body is cleaner without iron filings.
