Quick Details
-
Warranty:
-
1 Year
-
Brand Name:
-
KASHON
-
Model Number:
-
KS-160
-
Place of Origin:
-
Jiangsu, China
-
Structure:
-
air foot pump
-
Cable Length:
-
2m or longer
-
Outlet Size:
-
NPT3/8"
-
Power:
-
no
-
motor:
-
no
-
Usage:
-
Hydraulic Foot Pump
-
Brand:
-
KASHON / OEM
-
Standard or Nonstandard:
-
Standard
-
Tank Material:
-
Aluminum
-
Max. pressure:
-
700 Bar / 10000 Psi
-
Fuel:
-
Hydraulic Oil, 32#
-
Material:
-
Alloy Steel
-
MOQ:
-
1 PC
Quick Details
-
Application:
-
Automotive Industry, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Other
-
Pressure:
-
High Pressure
-
Voltage:
-
no
-
Warranty:
-
1 Year
-
Brand Name:
-
KASHON
-
Model Number:
-
KS-160
-
Place of Origin:
-
Jiangsu, China
-
Structure:
-
air foot pump
-
Cable Length:
-
2m or longer
-
Outlet Size:
-
NPT3/8"
-
Power:
-
no
-
motor:
-
no
-
Usage:
-
Hydraulic Foot Pump
-
Brand:
-
KASHON / OEM
-
Standard or Nonstandard:
-
Standard
-
Tank Material:
-
Aluminum
-
Max. pressure:
-
700 Bar / 10000 Psi
-
Fuel:
-
Hydraulic Oil, 32#
-
Material:
-
Alloy Steel
-
MOQ:
-
1 PC

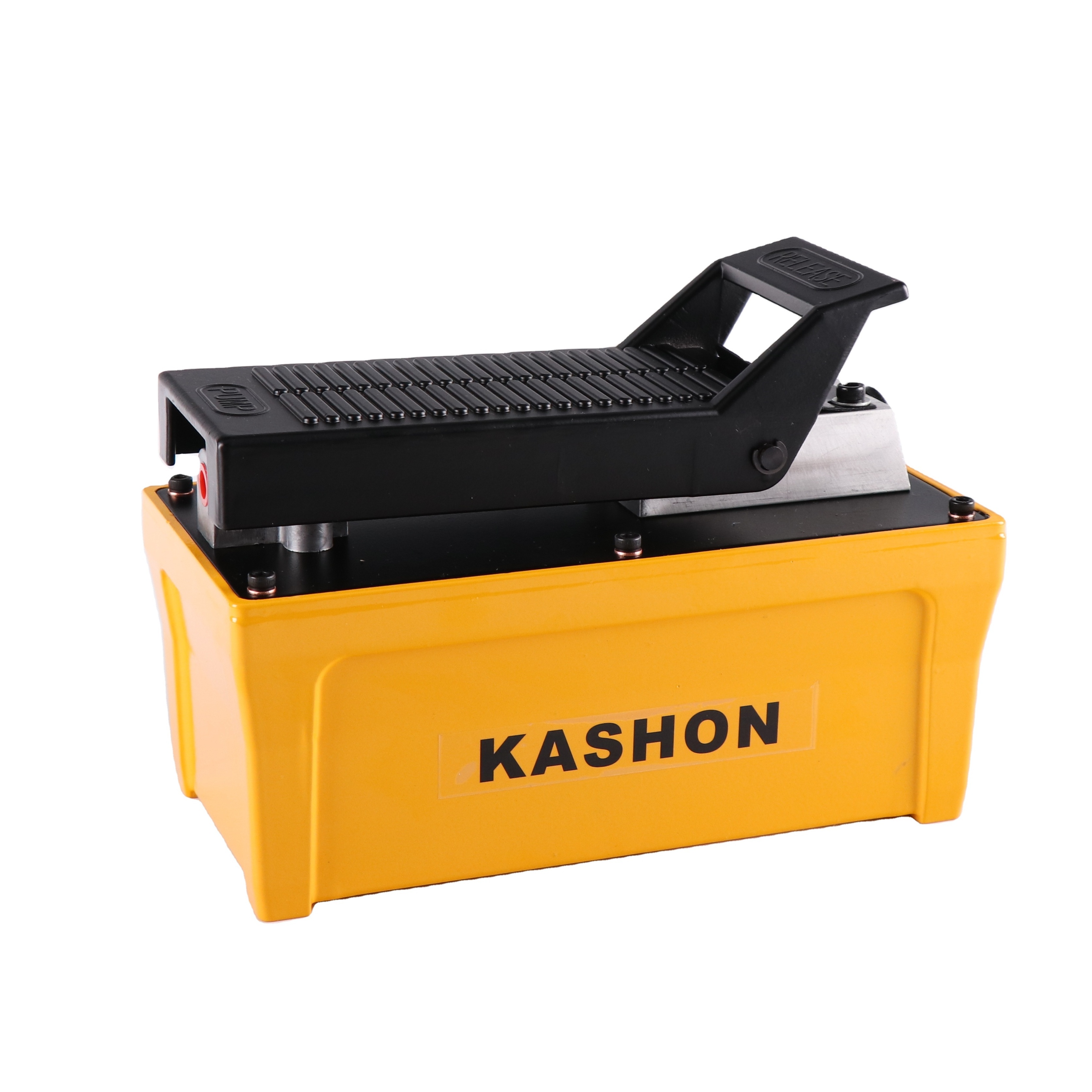

Features:
1. Complete aluminium air motor ensures durability;
2. Internal pressure relief valve provides overload protection;
3. 3/8" NPTF sealing threads design;
4. Air exhaust muffler design for quiet pumping;
5. Oil containers made of aluminium, engineering steel material;
6. Special use for porto power and presses;
7. Foot pedal operated can be used with a variety of hydraulic rams and tools;
8. Aluminium reservoir makes this solid and light and easy to move around air pressure operation;
9. Inlet port thread for air 1/4NPTF; air pressure 70-170psi and hydraulic outlet port 3/8NPTF, 10,000psi
hydraulic pressure:10000psi (70Mpa).
1. Complete aluminium air motor ensures durability;
2. Internal pressure relief valve provides overload protection;
3. 3/8" NPTF sealing threads design;
4. Air exhaust muffler design for quiet pumping;
5. Oil containers made of aluminium, engineering steel material;
6. Special use for porto power and presses;
7. Foot pedal operated can be used with a variety of hydraulic rams and tools;
8. Aluminium reservoir makes this solid and light and easy to move around air pressure operation;
9. Inlet port thread for air 1/4NPTF; air pressure 70-170psi and hydraulic outlet port 3/8NPTF, 10,000psi
hydraulic pressure:10000psi (70Mpa).
Quick Selection Chart :
For complete techniacl information please contact the sales.
|
Model
|
Max. Working Pressure
(bar)
|
Pump Type
|
Material
|
Oil Tank Capacity(ml)
|
Flow(L/min)
|
Pump Type
|
Weight
|
|
|
|
1st stage
|
2nd stage
|
1st stage
|
2nd stage
|
1st stage
|
2nd stage
|
(kg)
|
|
|
KS-160
|
700
|
single acting
|
aluminum alloy
|
1600
|
0.8
|
0.16
|
8.6
|
|
|
KS-160M
|
13.0
|
single acting
|
aluminum alloy
|
1600
|
770
|
385
|
8.6
|
|
|
KS-230
|
25.0
|
single acting
|
plastic
|
2300
|
1155
|
577
|
11.8
|
|
|
KS-450S
|
25.0
|
single acting
|
steel
|
4500
|
1540
|
770
|
12.7
|
|
|
KS-450D
|
25.0
|
double acting
|
steel
|
4500
|
1924
|
962
|
12.7
|
|
