Quick Details
-
Model Number:
-
CS-720 / YX720-A
-
Brand Name:
-
YXPC
-
Product name:
-
timer solenoid valve
-
model:
-
CS-720 / YX720-A
-
mounting way:
-
PIPE thread
-
Coil Voltage:
-
DC12V,24V,AC36V,110VAC,220VAC,380VAC
-
Material:
-
Brass or stainless steel
-
pressure:
-
16bar,40bar,80bar
-
Seal material:
-
NBR,FKM ,EPDM
-
orifice:
-
1.9mm,2.5mm,4mm
-
Operation:
-
2/2 way Direct drive
Quick Details
-
Port Size:
-
G 1", G1/4". G3/8", G1/2"
-
Warranty:
-
one year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
CS-720 / YX720-A
-
Brand Name:
-
YXPC
-
Product name:
-
timer solenoid valve
-
model:
-
CS-720 / YX720-A
-
mounting way:
-
PIPE thread
-
Coil Voltage:
-
DC12V,24V,AC36V,110VAC,220VAC,380VAC
-
Material:
-
Brass or stainless steel
-
pressure:
-
16bar,40bar,80bar
-
Seal material:
-
NBR,FKM ,EPDM
-
orifice:
-
1.9mm,2.5mm,4mm
-
Operation:
-
2/2 way Direct drive

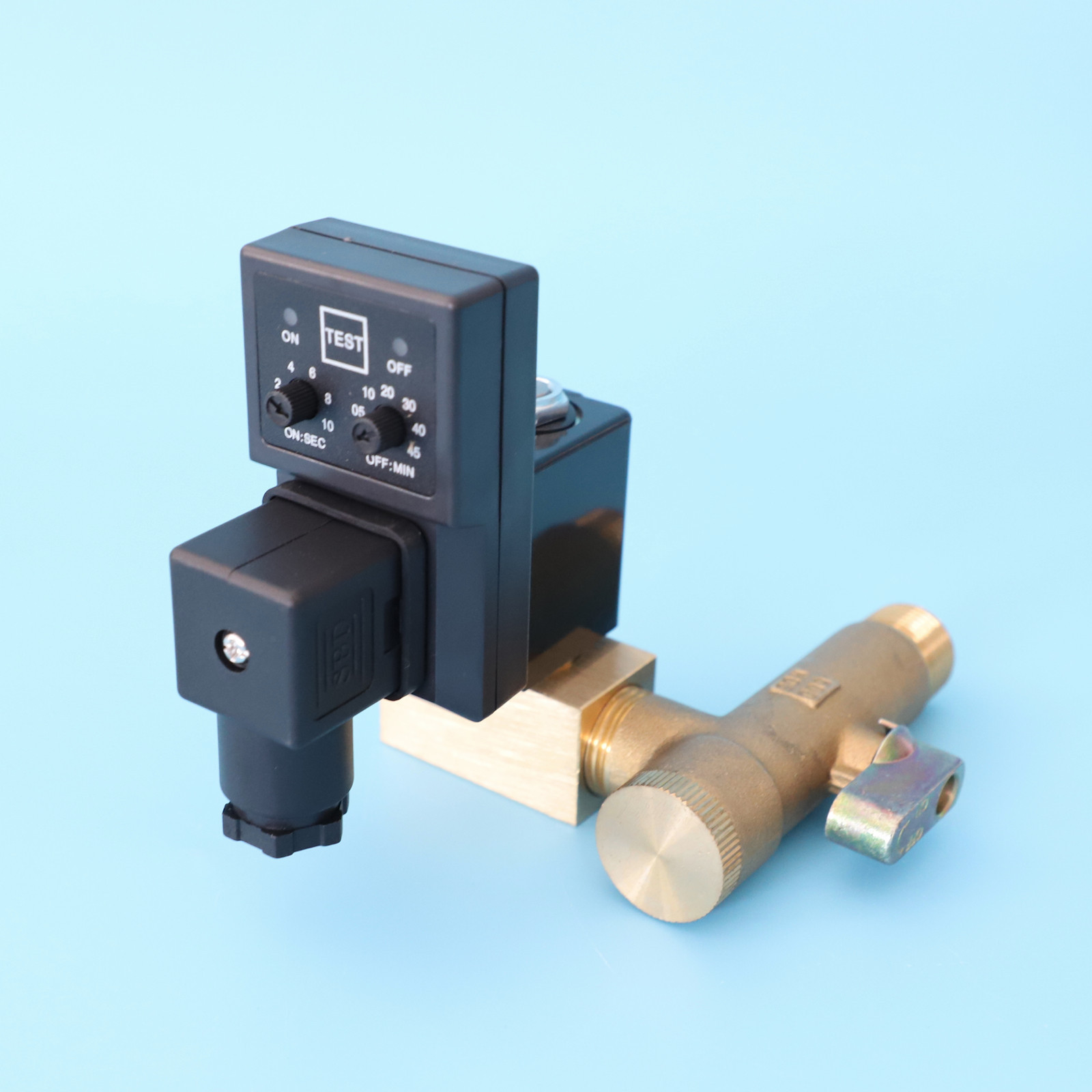

timer solenoid valve
Different Digital timer to choose
Brass body ,16bar,25bar,40bar,80bar pressure range
timer solenoid valve is widely used as spare parts of air comparessor.
solenoid water valves are automatically control fluid flow ,With cooper filter ball valve
timer electric water valve can control the valve open and close automatically.
NPT thread drain valve is easy to install,working with strainer to protect against impurity from condensate;
230VAC timer solenoid valve are widely used as spare part of air dryer system.
water valve for air compressor;cleaning machine valves.
Automatic drain valves designed as Air compressor valves and compressor parts,auto drain valve is suitable for compressed air, storage tank or other gas pressure vessels to remove water or harmful liquid.
Electic control valve is to control fluid flow open and close;
Water valve with timer ith or without filter ball valves or float type ball valves can be shut off from the compressed air system
enabling easy and safe maintenance ;
The Timer drain valves are used to simulate the solid-state electronic timer and the solenoid valve, so as to realize the
automatic discharge of condensed water.
Water valve with timer ith or without filter ball valves or float type ball valves can be shut off from the compressed air system
enabling easy and safe maintenance ;
The Timer drain valves are used to simulate the solid-state electronic timer and the solenoid valve, so as to realize the
automatic discharge of condensed water.
|
product name
|
timer solenoid valve
|
|
|
||
|
working medium
|
Compressed Air,Water,Light oil
|
|
|
||
|
model
|
YX720-A
|
|
|
||
|
Valve Style
|
2/2 Direct action
|
|
|
||
|
initial status
|
normally closed
|
|
|
||
|
port size
|
G 1/4"., G3/8".G 1/2 Female
|
|
|
||
|
way and position
|
2 Position 2 way
|
|
|
||
|
material of body
|
Brass
|
stainless steel
|
|
||
|
Operating pressure
|
0-16bar
|
0-40bar
|
0-80bar
|
||
|
orifice
|
4.5mm
|
2.5mm
|
1.9mm
|
||
|
On Time
|
0.5 - 10s
|
|
|
||
|
Off Time
|
0.5-45min
|
|
|
||
|
Power
|
AC22VA/DC20W
|
|
|
||
|
working voltage
|
DC/AC 24~240V 50/60Hz±10%
|
|
|
||
|
Temperature Range
|
20℃~60℃
|
|
|
||
|
Highest Media Temperature
|
-20 ~ 150°
|
|
|
||
|
Mounting
|
Any place
|
|
|
||
Our Advantages
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
5:Customize according to your special demand.
6: Provide free products information.
7. Reliable quality assured and active after-sell service
8.
We are manufacturer for pneumatic components which have own factory and We not only have advanced processing equipment,but also equipped with a consummate testing facilities and strong technical force.
