Quick Details
-
Model Number:
-
Diamond Grinding Wheel
-
Product name:
-
Resin Bond Diamond Grinding Wheel
-
Application:
-
for Carbide Cutters
-
Size:
-
customizable sizes
-
Shape:
-
Flat,Bowl,Dish,Cup,etc,.
-
Grit:
-
40#~600# customizable
-
Bonding Agent:
-
Resin/Ceramic/metal
-
MOQ:
-
1 Pieces
-
Delivery time:
-
7-15days
-
Advantage:
-
High Working Efficiency
-
Material:
-
Synthetic Diamond
Quick Details
-
Type:
-
Abrasive Disc
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
QEDIAMOND
-
Model Number:
-
Diamond Grinding Wheel
-
Product name:
-
Resin Bond Diamond Grinding Wheel
-
Application:
-
for Carbide Cutters
-
Size:
-
customizable sizes
-
Shape:
-
Flat,Bowl,Dish,Cup,etc,.
-
Grit:
-
40#~600# customizable
-
Bonding Agent:
-
Resin/Ceramic/metal
-
MOQ:
-
1 Pieces
-
Delivery time:
-
7-15days
-
Advantage:
-
High Working Efficiency
-
Material:
-
Synthetic Diamond

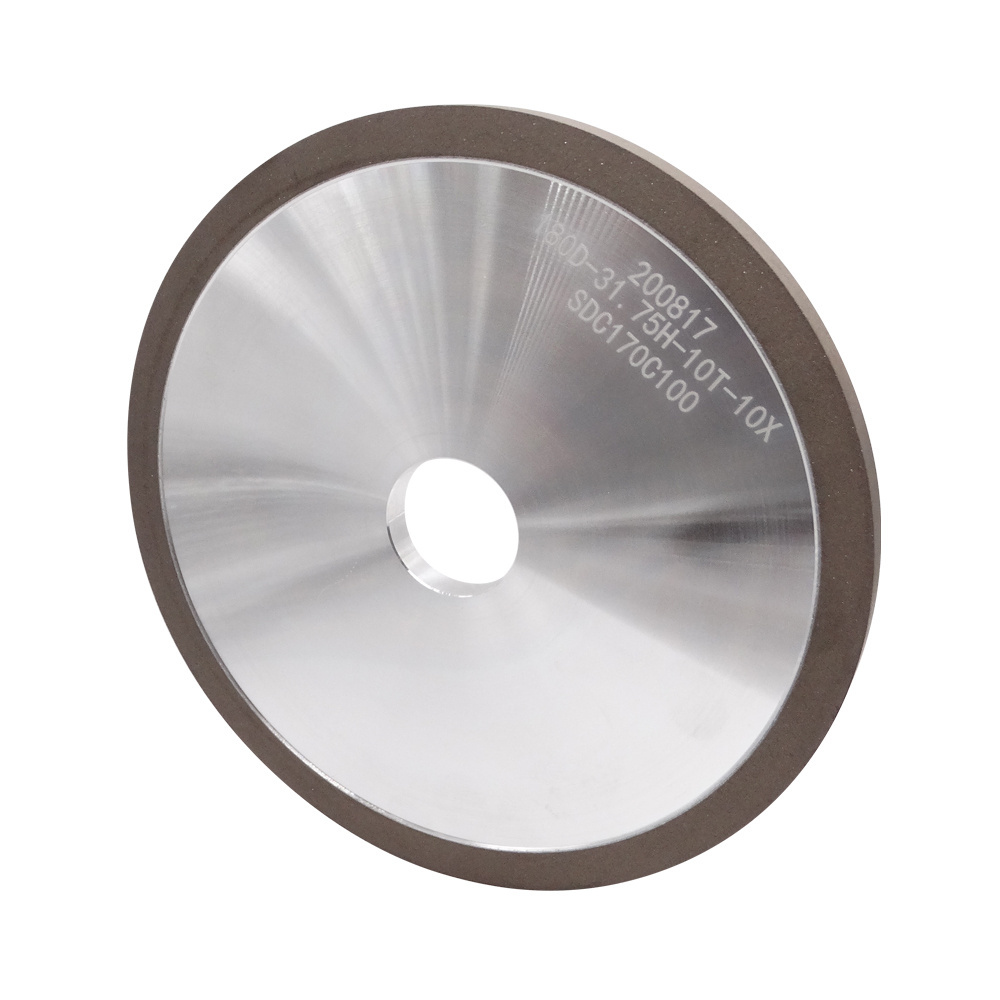

Diamond Grinding Wheels Resin Bond Diamond Wheel for Carbide Cutters
Product Description
The flat resin diamond grinding wheel is mainly used for cylindrical grinding and cutting edge processing of cemented carbide.
Resin bond diamond grinding wheel is suitable for grinding metal and non-metal hard and brittle materials with low iron content,such as cemented carbide,high alumina porcelain, optical glass, agate gemstone, semiconductor material, ceramics, stone, etc.
|
Type
|
1A1 Flat resin bond diamond grinding wheel
|
|
Concentration
|
50%, 75% 100% 125% 150%
|
|
Mesh
|
46#, 60#, 80#, 100#, 120# (coarse grinding);
120#, 150#, 180#, 200#, 240# (medium grinding); 280#, 320#, 400#, 500#, 600# (fine grinding); 800#, 1000#, 1200#, 1500#, 2000#, 3000# (polishing) |
|
Specification
( Specification sizes can be customized ) |
D75-H10-T5-X10 / D150-H19-X5-T5 / D125-T10-X10- H20/31.75 / D100-T10-X10- H20/31.75
D175-H127-X4-T5 / D250-H40-X10-T3 / D300-H127-X10-T40 / D350-H127-T20-X10 / D400-H127-T40-X10 / D500-H203-X10-T32 |
|
Application
|
Hard alloy, high alumina porcelain, optical glass, agate gemstone, semiconductor material, ceramics, stone, etc.
|
