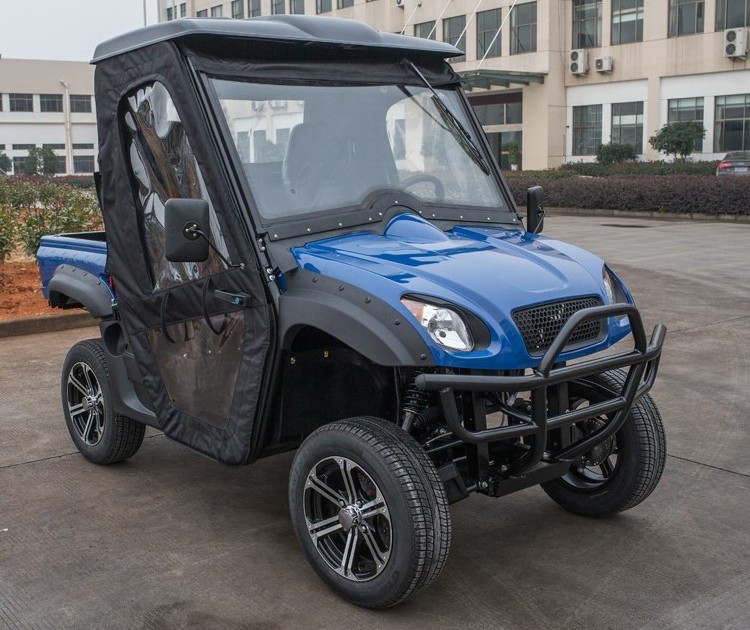

5KW EEC Utility Vehicle Mini Jeep UTV

FOB Reference Price: Get Latest Price

≥1 Sets

US $5000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Description:: Adult Electric UTV

Fuel Type:: Electric

Final Drive:: 2WD

Size (L*W*H):: 2950x1430x1780mm

Net Weight:: 788KG

Motor:: 51V, AC, 5KW

Max forward speed:: 60km/h

Color:: Optional

Warranty:: 12 Months

Quick Details

Place of Origin:: Henan, China

Brand Name:: Kingwoo

Model Number:: KW500

Description:: Adult Electric UTV

Fuel Type:: Electric

Final Drive:: 2WD

Size (L*W*H):: 2950x1430x1780mm

Net Weight:: 788KG

Motor:: 51V, AC, 5KW

Max forward speed:: 60km/h

Color:: Optional

Warranty:: 12 Months

Product Description

5KW EEC Utility Vehicle Mini Jeep UTV

Product Type:	KW500
Motor	5KW, 51V, 82AMP 102HZ
Battery	8V 150Ah X 9 lead-acid battery
Max Power	15kW
Max Torque	70N.M
Running on 1 full charge	80km
Cargo bed Dimensions(LXWXH)	1180×930×340mm
Overall Vehicle Size: (L x W x H)	2950x1375x1860mm
Max Speed ( km/h )	60

Detailed Specification
Motor	Suspension
Motor Type:5KW, 51V, 82AMP 102HZ	Front Suspension: Dual A-Arm 185.42mm(7.3") Travel
Electricity Consumption of Sigle Charge: 10Kwh	Rear Suspension: Dual A-Arm 185.42mm(7.3") Travel
Brakes	Tires
Front/Rear Brakes: 4-Wheel Hydraulic Disc	Front Tires: 175/65 R14 82H
Parking Brakes: Hand-Actuated	Rear Tires: 175/65 R14 82H
Function/ Dimensions/ Capacities
Wheelbase: 1905mm	Drive System: RWD
Dry Weight: 788kgs	Battery: 8V, 150Ahx9
Overall Vehicle Size: (L x W x H)2950x1375x1860mm	Overall Vehicle Load Weight: 340kgs
Min Ground Clearance: 220mm	Hitch Towing Rating: 500kgs
Cargo bed Dimensions: (L x W x H)1180×930×340mm	Cargo bed Capacity : 185kgs

KW500 is one type of Electric Utility Vehicle ( Electric UTV ).
It is preferred by Euroepan customers because of pretty appearance and good performance.
It can be used in many fields such as Farm, Sport,Hunting, Logistics,ect.
This type of UTV is equipped with 5KW AC Motor and 72V Free-maintenance Battery.
Its max speed can reach 80-90 km/h.
Meanwhile,This UTV is also equipped with many optional spare parts for customers to choose.

Details Description
