Quick Details
-
Model Number:
-
FR-F18 time attendance(c)
-
name:
-
FR-F18 time attendance(c)
-
fingerprint capacity:
-
1500
-
RFID card capacity:
-
50000 (EM-ID or Mifare IC is Optional)
-
display:
-
TFT LCD Color Screen
-
communication:
-
TCP/IP, RS232/485,USB-host
-
Access Control Functions:
-
3rd Party Electric Lock,Door Sensor, Exit Button, Alarm, Doorbell,etc.
-
Wiegand Signal:
-
Wiegand Input and Output
-
Power Supply:
-
DC 12V
-
Optional language:
-
English, Spanish, French, German, Russian, Portuguese, Arabic, Persian
-
Dimension:
-
183mm*80mm*42mm (Length*Width*Thickness)
Quick Details
-
Type:
-
Biometric Time Recording
-
Place of Origin:
-
China
-
Brand Name:
-
nordson
-
Model Number:
-
FR-F18 time attendance(c)
-
name:
-
FR-F18 time attendance(c)
-
fingerprint capacity:
-
1500
-
RFID card capacity:
-
50000 (EM-ID or Mifare IC is Optional)
-
display:
-
TFT LCD Color Screen
-
communication:
-
TCP/IP, RS232/485,USB-host
-
Access Control Functions:
-
3rd Party Electric Lock,Door Sensor, Exit Button, Alarm, Doorbell,etc.
-
Wiegand Signal:
-
Wiegand Input and Output
-
Power Supply:
-
DC 12V
-
Optional language:
-
English, Spanish, French, German, Russian, Portuguese, Arabic, Persian
-
Dimension:
-
183mm*80mm*42mm (Length*Width*Thickness)
About Nordson
Product categories
Zkteco Access controller Biometric Machine Fingerprint Time Attendance Recording with RFID Card Reader
Product Overviews

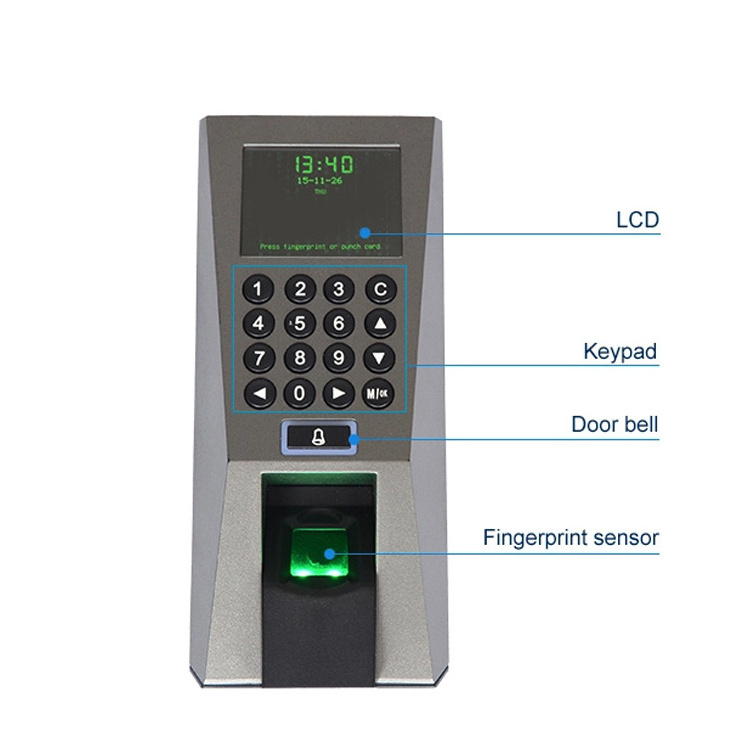

FR-F18 Fingerprint Access Control &Time Attendance Terminal is an innovative biometric fingerprint reader for access control application.The Terminal features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality infrared detection fingerprint sensor. The device offers flexibility to be installed standalone or with any third party access control panels .that support standard Wiegand signal. All the operations can be done on the TFT-LCD color screen. The fingerprint image will be displayed on it. That will guide user to put finger on proper position and increase recognition rate. TCP/IP and RS485 are available that the device can be used in different network.
Product Function
| Fingerprint Capacity | 1500 |
| Record Capacity | 50000 |
| Display | TFT LCD Color Screen |
| Communication | TCP/IP, RS232/485,USB-host |
| Access Control Functions | 3rd Party Electric Lock, Anti-passback,Door Sensor, Exit Button, Alarm, Doorbell |
| Wiegand Signal | Wiegand Input and Output |
| Optional Functions | ID/Mifare/HID, Webserver |
| Power Supply | DC 12V |
| Verification Speed | ≤0.5 sec |
| Operating Temp. | 0°C- 45°C |
| Operating Humidity | 20%-80% |
| Dimension | 183mm*80mm*42mm (Length×Width×Thickness) |
| Gross Weight | 0.82kg |
