Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Suntech
-
Dimension(L*W*H):
-
850*600*500
-
Weight:
-
20 KG
-
Working Temperature Range:
-
200 - 650 ℃
-
Application:
-
Drying system
-
Heating element:
-
Nichrome Resistance Wire
-
Function:
-
Adjustable Thermostat
-
Name:
-
Air heater
-
Max temperature:
-
750 Deg.C
-
Operate Temperature:
-
300-800
-
Feature:
-
Stable
-
Power:
-
Electric
-
Heating core:
-
Ceramics
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Suntech
-
Dimension(L*W*H):
-
850*600*500
-
Weight:
-
20 KG
-
Working Temperature Range:
-
200 - 650 ℃
-
Application:
-
Drying system
-
Heating element:
-
Nichrome Resistance Wire
-
Function:
-
Adjustable Thermostat
-
Name:
-
Air heater
-
Max temperature:
-
750 Deg.C
-
Operate Temperature:
-
300-800
-
Feature:
-
Stable
-
Power:
-
Electric
-
Heating core:
-
Ceramics
Air Heater
1. Application
The air heater is an electrically controlled heater which is driven by the fan. It is electric heated and uses the air as a media. By driving the impeller with the fan, it realizes heated air circulation, finally heating the whole space.
2. Parameters
| Item | Model | Heating power | Blower power | Maximum air flow | Maximum pressure |
| No. | KW/h | KW/h | M³/min | Pa | |
| 1, | DR-1220-BX-801 | 1-3KW | 0.025 | 2 | 100 |
| 2, | DR-1220-PF-801 | 3-5KW | 0.04/0.09 | 4/6 | 150/300 |
| 3, | DR-3380-PF-802 | 6KW | 0.2 | 13 | 600 |
| 4, | DR-3380-PF-803 | 10KW | 0.20/0.55 | 13/15 | 600/1100 |
| 5, | DR-3380-PF-804 | 15KW | 0.55/0.75 | 15/22 | 1100/1500 |
| 6, | DR-3380-PF-805 | 20KW | 0.75/1.10 | 22/26 | 1500/1200 |
| 7, | DR-3380-PF-806 | 25KW | 1.1 | 26 | 1200 |
| 8, | DR-3380-PF-807 | 30KW | 1.1 | 26 | 1200 |
| 9, | DR-3380-PF-808 | 40KW | 1.1/2.20 | 26/35 | 1200/1600 |
| 10, | DR-3380-PF-809 | 50KW | 5.5 | 53 | 3407 |
| 11, | DR-3380-PF-810 | 60KW | 7.5 | 61 | 4776 |
| 12, | DR-3380-PF-811 | 70KW | 11 | 79 | 4256 |
| 13, | DR-3380-PF-812 | 80KW | 15 | 99 | 5553 |
| 14, | DR-3380-PF-813 | 100KW | 18 | 112 | 5180 |
| 15, | DR-3380-PF-814 | 120KW | 22 | 120 | 7400 |
| 16, | DR-3380-PF-815 | 150KW | 30 | 248 | 4736 |
| 17, | DR-3380-PF-816 | 200KW | 45 | 328 | 4181 |
| 18, | DR-3380-PF-817 | 250KW | 55 | 357 | 5920 |
| 19, | DR-3380-PF-818 | 300KW | 75 | 501 | 5065 |
| 20, | DR-3380-PF-819 | 500KW | 132 | 703 | 6382 |

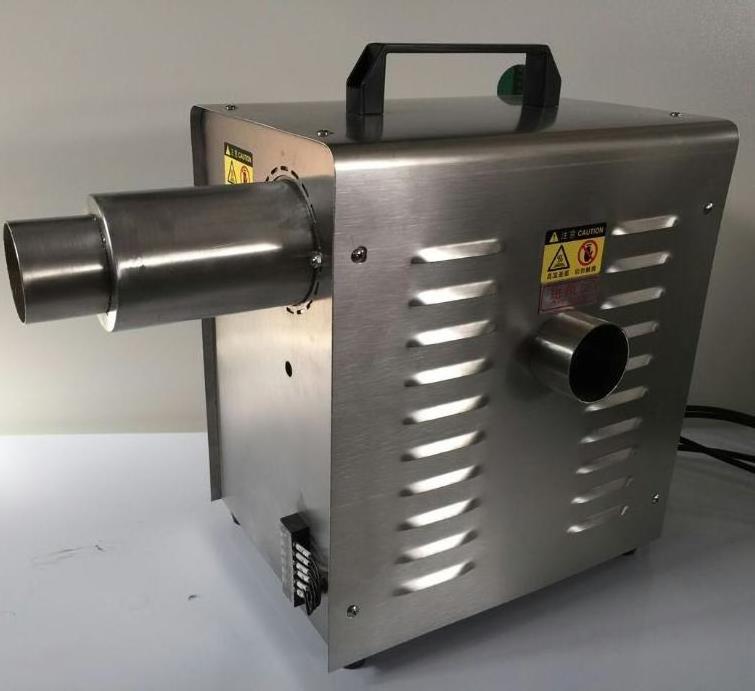

3. Photos
