Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
3490x1880x2160
-
Warranty:
-
1 year
-
Machine Weight:
-
3200kg
-
Bucket capacity:
-
0.45m3
-
Engine:
-
Xinchai 498
-
Engine Power:
-
45KW/2500rpm
-
Opertaing weight:
-
3200kg
-
Hydraulic pump flow(L/min):
-
75L/min
-
Standard Tire:
-
12-16.5
-
Attachments:
-
Pallet fork, 4 in 1 bucket, snow blade, V blade
-
Skid steer loader:
-
skid steer, china skid steer, Minl wheel Skid Steer Loader 60HP
-

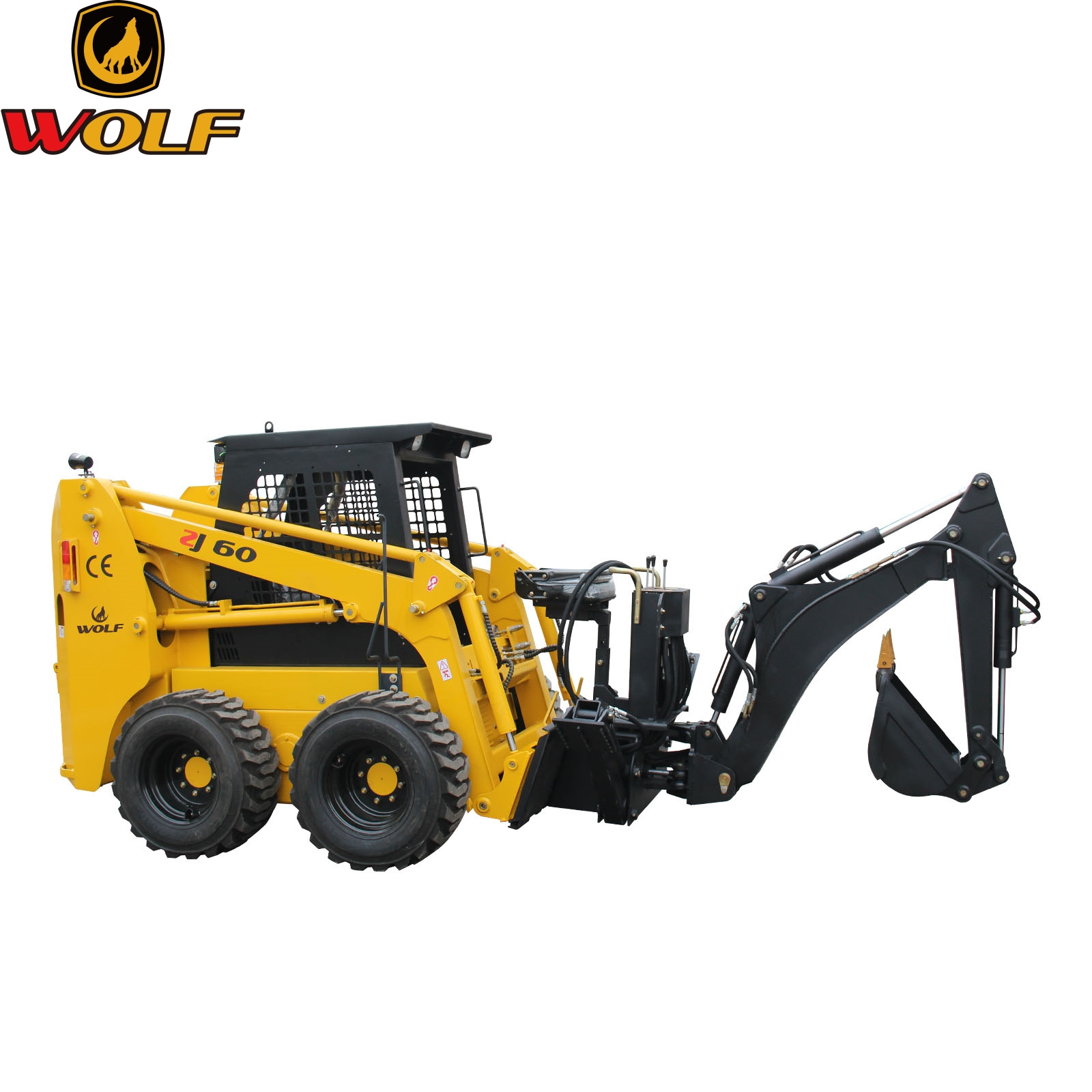

Product name:
-
WOLF ZJ60
-
Engine model:
-
Xinchai 498
-
Color:
-
Customer's Requiement
-
Certification:
-
CE
Quick Details
-
Engine Brand:
-
XINCHAI
-
Power:
-
45KW
-
Brand Name:
-
WOLF
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
3490x1880x2160
-
Warranty:
-
1 year
-
Machine Weight:
-
3200kg
-
Bucket capacity:
-
0.45m3
-
Engine:
-
Xinchai 498
-
Engine Power:
-
45KW/2500rpm
-
Opertaing weight:
-
3200kg
-
Hydraulic pump flow(L/min):
-
75L/min
-
Standard Tire:
-
12-16.5
-
Attachments:
-
Pallet fork, 4 in 1 bucket, snow blade, V blade
-
Skid steer loader:
-
skid steer, china skid steer, Minl wheel Skid Steer Loader 60HP
-
Product name:
-
WOLF ZJ60
-
Engine model:
-
Xinchai 498
-
Color:
-
Customer's Requiement
-
Certification:
-
CE
Xinchai 498 engine, American SAUER-DANFOSS pump, American Eton Motor, China gear pump,
China cylinder, Italy BP multi-way valve , 12-16.5 tire, hydraulic brake.
1. Open-type operator cab
2. Hand control system(Mechanical type)
3. Standard bucket 7 2 ''
4. Auxiliary hydraulic couplers(common as Bobcat)
|
Specifications |
Rated operating capacity(kg) |
850 |
|
Tipping load(kg) |
1700 |
|
|
Bucket capacity(m3) |
0.4-0.5 |
|
|
Operationg weight(kg) |
3200 |
|
|
Max. travel speed(km/h) |
12 |
|
|
Hydraulic pump flow(L/min) |
75 |
|
|
Fuel tank capacity(L) |
80 |
|
|
Tires |
12-16-15 |
|
|
Overall dimensions(mm) |
3840×1820×2080 |
|
|
Dimensions |
Height at maximum extension(mm) |
3690 |
|
Height to bucket hinge pin(mm) |
2920 |
|
|
Width with bucket(mm) |
1820 |
|
|
Track width(mm) |
1500 |
|
|
Wheelbase(mm) |
991 |
|
|
Ground clearance(mm) |
205 |
|
|
Dump angle |
40° |
|
|
Dumping height(mm) |
2330 |
|
|
Rollback at ground |
710 |
|
|
Angle of departure |
XINCHAI 498 |
|
|
Engine |
Maker/Model |
60hp/2650rpm |
|
Net power |
4 Cylinder in-line, Water cooled, 4 stroke,Diesel engine |
|
|
Type |
2.54 |
|
|
Displacement(L) |
Open-type operator cab |
|
|
Standard |
Hand control system(Mechanical type) |
|
|
Standard bucket |
||
|
Auxiliary hydraulic couplers(common as Bobcat) |
||
|
Open-type operator cab |
||
|
Optional |
Hydraulic joystick controls |
|
|
Enclosed operator cab with A/C |
||
|
Cab fitted with a heater |
||
|
Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,Combinition bucket,Mower,Asphalt cutter,and More |
||
|
Attachments |
Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,Combinition bucket,Mower,Asphalt cutter,and More |
