Quick Details
-
Brand Name:
-
BWSENSING
-
Theory:
-
accelerometer
-
Output:
-
RS232(default)/TTL, Digital Sensor
-
Brand:
-
TILT SWITCH
-
Voltage - Supply:
-
9-35V
-
Operating Temperature:
-
-40℃~+85℃
-
Mounting Type:
-
Horizontally or vertically
-
Resolution (Bits):
-
0.01°
-
Package / Case:
-
nodic oxidation of magnesium aluminum alloy
-
Frequency:
-
100
-
Size / Dimension:
-
L103.8*W55.4*H26(mm)
-
Measuring Range:
-
0.01°
-
Name:
-
Inclination Switch
-
Type:
-
Dual-Axis
-
Dynamic/Static Accuracy:
-
2°/0.1°
-
Measurement range:
-
±90
-
Wide temperature:
-
-40℃~+85℃
-
Wide voltage input:
-
9~35V
-
Output interface:
-
RS232 , voltage switch output
-
Small size:
-
91x40x26mm customizable
Quick Details
-
Usage:
-
switch, Position Sensor
-
Model Number:
-
DIS341-232
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BWSENSING
-
Theory:
-
accelerometer
-
Output:
-
RS232(default)/TTL, Digital Sensor
-
Brand:
-
TILT SWITCH
-
Voltage - Supply:
-
9-35V
-
Operating Temperature:
-
-40℃~+85℃
-
Mounting Type:
-
Horizontally or vertically
-
Resolution (Bits):
-
0.01°
-
Package / Case:
-
nodic oxidation of magnesium aluminum alloy
-
Frequency:
-
100
-
Size / Dimension:
-
L103.8*W55.4*H26(mm)
-
Measuring Range:
-
0.01°
-
Name:
-
Inclination Switch
-
Type:
-
Dual-Axis
-
Dynamic/Static Accuracy:
-
2°/0.1°
-
Measurement range:
-
±90
-
Wide temperature:
-
-40℃~+85℃
-
Wide voltage input:
-
9~35V
-
Output interface:
-
RS232 , voltage switch output
-
Small size:
-
91x40x26mm customizable
DIS341

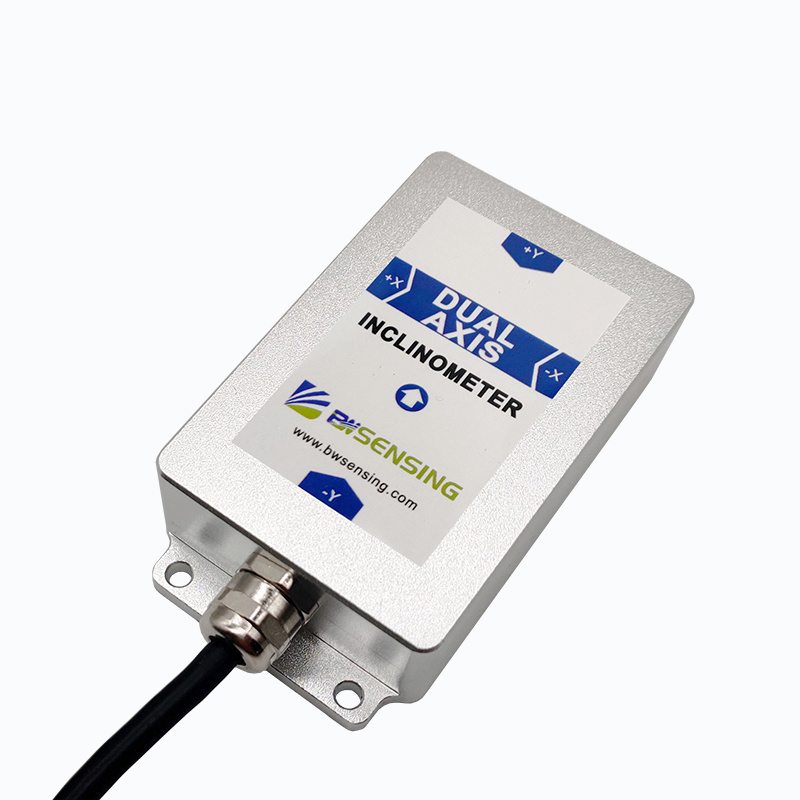

Biaxial voltage output dip switch DIS341
The DIS341 series is a biaxial dip switch from North Microsensing with a measuring range of ±90 degrees.When the measured inclination is greater than the alarm threshold, the output line becomes closed (can also be disconnected), usually if the measured inclination does not exceed the alarm threshold, the output line is normally open (can also be normally closed).Alarm threshold can be set according to user's actual situation.Small size, high consistency and stability, working temperatureDegree of industrial grade -40℃-85℃, is a cost-effective tilt switch.
| Electrical | |
| voltage | 9~35V |
| Current consumption | 40mA(12V) |
| Operating temperature | -40℃~85℃ |
| Store temperature | -55℃~100℃ |
