Quick Details
-
Place of Origin:
-
JIANGSU, CHINA
-
Brand Name:
-
TAVAS OEM ODM
-
Dimension(L*W*H):
-
410 x 380 x460 mm
-
Weight:
-
33
-
Rated power/speed:
-
3000/3600 rpm
-
Marketing Type:
-
2023 new tech
-
Warranty of core components:
-
12 months
-
Key Selling Points:
-
climate friendly powerful engine
-
Power output:
-
Crankshaft camshaft
-
Air filter options:
-
Dual stage, Oil bath, Cyclone
-
Camshaft PTO:
-
1800 rpm
-
Crankshaft PTO:
-
3600 rpm
-
Key start:
-
Optional
-
PTO types:
-
straight key, thread, Spline, Taper
-
Euro 5:
-
Optional
Quick Details
-
Displacement:
-
246cc
-
Emission Standard:
-
Euro 2 Euro 5
-
Power:
-
4.5 KW
-
Place of Origin:
-
JIANGSU, CHINA
-
Brand Name:
-
TAVAS OEM ODM
-
Dimension(L*W*H):
-
410 x 380 x460 mm
-
Weight:
-
33
-
Rated power/speed:
-
3000/3600 rpm
-
Marketing Type:
-
2023 new tech
-
Warranty of core components:
-
12 months
-
Key Selling Points:
-
climate friendly powerful engine
-
Power output:
-
Crankshaft camshaft
-
Air filter options:
-
Dual stage, Oil bath, Cyclone
-
Camshaft PTO:
-
1800 rpm
-
Crankshaft PTO:
-
3600 rpm
-
Key start:
-
Optional
-
PTO types:
-
straight key, thread, Spline, Taper
-
Euro 5:
-
Optional
Products Description

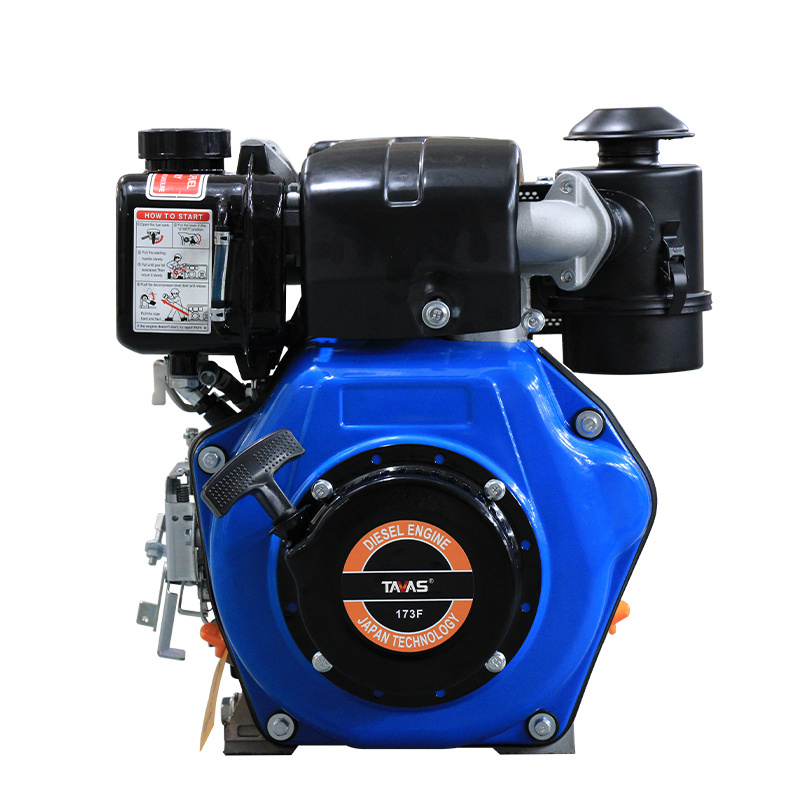

Direct sales from Chinese manufacturers small air-cooled diesel engine
TAVAS single cylinder air cooled diesel engine is designed for construction machinery, generator, and any tough use. The crankshaft and muffler can be customization based on the needs of application.
Forced lubrication provides lubricating oil for important parts, and high-quality materials provide first-class durability.
|
Technical data
|
|
|
|
|
|
|
|
|||||||
|
Engine model
|
|
173F(E)
|
178F(E)
|
186FA(E)
|
188FA(E)
|
192FC(E)
|
195F(E)
|
|||||||
|
Type
|
|
Single-Cylinder, Vertical, 4-Stroke Air-Cooled Diesel Engine
|
|
|
|
|
|
|||||||
|
Combustion System
|
|
Direct Injection
|
|
|
|
|
|
|||||||
|
Bore x Stroke
|
mm
|
73×59
|
78×62
|
86×72
|
88×75
|
92×75
|
95×75
|
|||||||
|
Displacement
|
cc
|
246
|
296
|
418
|
456
|
498
|
531
|
|||||||
|
Engine speed
|
rpm
|
3600
|
3600
|
3600
|
3600
|
3600
|
3600
|
|||||||
|
Max Output
|
kW
|
4.5
|
4.4
|
25.6
|
8.2
|
9.3
|
9.5
|
|||||||
|
Continuous Output
|
kW
|
4.0
|
4.0
|
6.5
|
7.5
|
8.5
|
9.0
|
|||||||
|
PTO type
|
|
Crankshaft or Camshaft(1/2 rpm)
|
|
|
|
|
|
|||||||
|
Starting System
|
|
Recoil or Electric
|
|
|
|
|
|
|||||||
|
Cooling System
|
|
Forced air-cooling by fly wheel fan
|
|
|
|
|
|
|||||||
|
Lubrication System
|
|
Forced lubrication at multiple points
|
|
|
|
|
|
|||||||
|
Oil Type
|
|
SAE10W30（CD Grade Above)
|
|
|
|
|
|
|||||||
|
Lubrication Volume
|
L
|
0.8
|
1.1
|
1.65
|
1.65
|
1.65
|
1.65
|
|||||||
|
Fuel Type
|
|
0#(Summer) or-10#(Winter) Light Diesel Oil
|
|
|
|
|
|
|||||||
|
Fuel Tank Capacity
|
L
|
2.5
|
3.5
|
5.5
|
5.5
|
5.5
|
5.5
|
|||||||
|
Fuel Consumption Rate
|
g/kW.h
|
<295
|
<280
|
<270
|
<270
|
<270
|
<270
|
|||||||
Customizable PTO types:
Straight Key shaft
Tapered shaft
Threaded shaft
Spline shaft
Customizable air filter:
Semi-dry type
Oil bath type
Cyclone type
Dual-stage type
Nitrided crankshaft with lifetime guarantee.
Precisely controlled fuel supply angles to ensure full
combustion and fuel economy
Crankshafts, camshafts and balance shafts all equipped
with top class bearings
High strength crankcase, secured with top quality #12.9
mild steel bolts
