Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FPFB
-
Model Number:
-
BZM8050
-
Rated voltage:
-
AC 220V
-
Rated current:
-
16A
-
IP grade:
-
IP65
-
corrosion grade:
-
WF2
-
Inlet thread:
-
G3/4"
-
Cable outer dia:
-
9mm-14mm
-
Ex-mark:
-
Exde II CT6 Gb, DIP A21 TA,T6
-
Temperature:
-
T1-T6
-
Application:
-
IIA IIB IIC
-
Zone:
-
ZONE1,2 ZONE20,21,22
-
Certification:
-
ccc
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
16A
-
Max. Voltage:
-
AC220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FPFB
-
Model Number:
-
BZM8050
-
Rated voltage:
-
AC 220V
-
Rated current:
-
16A
-
IP grade:
-
IP65
-
corrosion grade:
-
WF2
-
Inlet thread:
-
G3/4"
-
Cable outer dia:
-
9mm-14mm
-
Ex-mark:
-
Exde II CT6 Gb, DIP A21 TA,T6
-
Temperature:
-
T1-T6
-
Application:
-
IIA IIB IIC
-
Zone:
-
ZONE1,2 ZONE20,21,22
-
Certification:
-
ccc

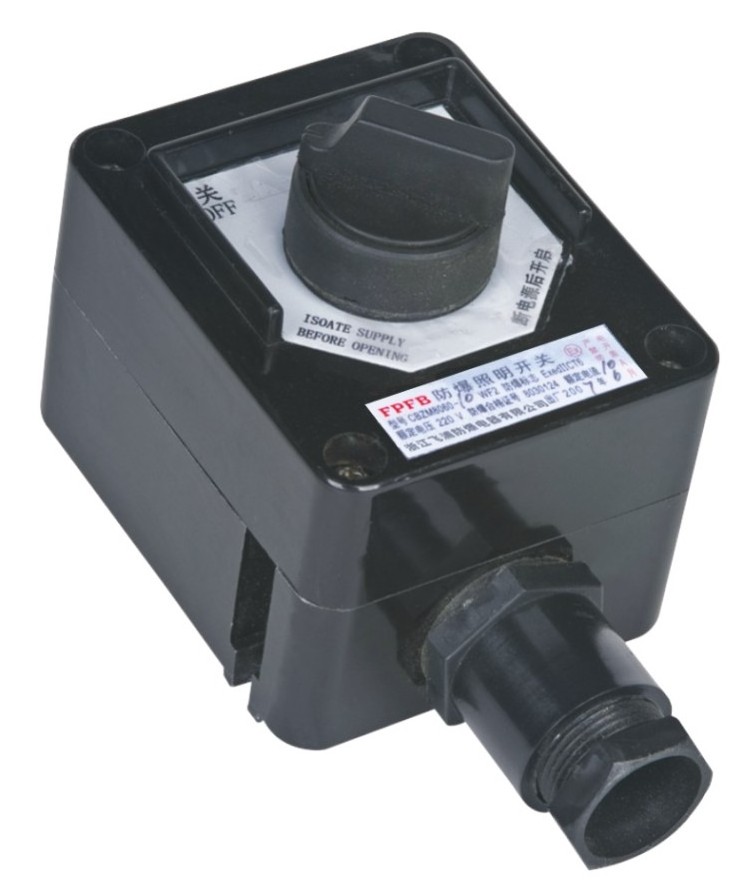

IIC BZM8050 Explosion proof anti-corrosion lighting switch with rotary switch in black
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category II B and II C where the temperature classification is T1-T4.
3. Hazardous zone : 20. 21. and 22
4. Flammable dust atmosphere.
5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
|
Voltage |
RATED CURRENT |
INLET thread |
Temperature |
Ex-mark |
Degree of protection |
Erosionproofclass |
cableouterline (mm) |
|
AC220v |
16A |
G 3 / 4" |
T1-T6 |
Exde II CT6 GB DIP A21 TA,T6 |
IP65 |
WF2
|
Φ 9- Φ 14 |
