- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ALION
-
Model Number:
-
BS-230B
-
No. of phases:
-
2,3
-
Rated voltage(V):
-
600
-
Applicable motor capacity KW:
-
3.7 at 220V
-
Resistance load(A):
-
22.5(30)
-
Weight:
-
0.22kg
-
L*B*H:
-
112*62*56
-
MOQ:
-
100pcs
-
Certificate:
-
CE,CCC,ISO
-
Port:
-
Ningbo, Shanghai
-
Supply ablity:
-
1000 pcs per week
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
Normal Level
-
Max. Current:
-
30A
-
Max. Voltage:
-
600V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ALION
-
Model Number:
-
BS-230B
-
No. of phases:
-
2,3
-
Rated voltage(V):
-
600
-
Applicable motor capacity KW:
-
3.7 at 220V
-
Resistance load(A):
-
22.5(30)
-
Weight:
-
0.22kg
-
L*B*H:
-
112*62*56
-
MOQ:
-
100pcs
-
Certificate:
-
CE,CCC,ISO
-
Port:
-
Ningbo, Shanghai
-
Supply ablity:
-
1000 pcs per week
-
Certification:
-
CE

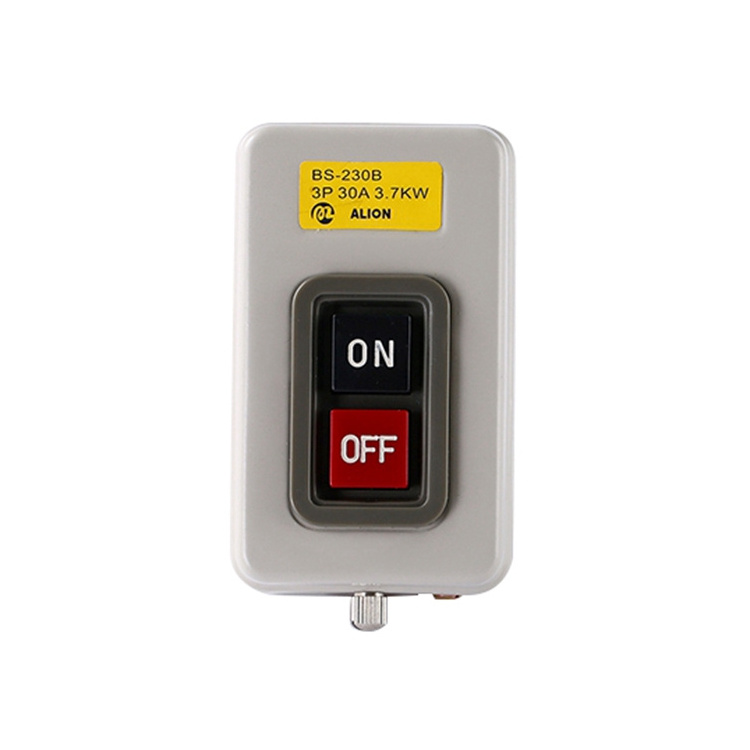

ALION BS-230B Power Push button Switch for sale
Power Push Botton Switch Description
- Three-pole power push button switch switch
- Closed type
- Applicable to the motor for directly starting run and breaking
- Applicable to infrequently turning on and off loaded current
- Widely used in machine tools, textile machinery, etc
- Accurate on-off
- Safe and reliable
- High intensity of machinery
- Output Contacts rated 10A at 250 VAC or 30 VDC
- Screw mounting method
- The bottom of the base shell fixed
- Screw terminal connections
Power Push Botton Switch Technical Data
| Rated voltage | 600V |
| Resistance load | 30A |
| Applicable motor capacity | 3.7KW |
| Dielectric strength | Between open contacts :1500VAC rms |
| Between contacts and case:2000VAC rms | |
| Resistance insulation | ≥ 100MΩ(DC 500V) |
| Weight | 220g |
| Dimensions(L×B×H)(mm) | 112×62×56 |
Power Push Botton Switch Technical Specification
| Type | No. of phases |
Rated voltage (V) |
Applicable motor capacity KW |
Resistance load (A) |
Weight (kg) |
L*B*H |
| BS-210B | 2,3 | 600 | 1.1 at 220V | 7.5(10) | 0.13 | 90*44*49 |
| BS-215B | 2,3 | 600 | 2.2 at 220V | 15(20) | 0.18 | 93*53*54 |
| BS-230B | 2,3 | 600 | 3.7 at 220V | 22.5(30) | 0.22 | 112*62*56 |
Connection Example
Scale Drawings
