Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
3890*1300*1500
-
Machine Weight:
-
145 kg
-
Bucket capacity:
-
0.3 m³
-
Model:
-
ZL916
-
Rated load (Ton):
-
0.6
-
Engine model:
-
Single-cylinder Diesel Engine
-
Rated power (Kw):
-
18.4
-
Max. discharging height (mm):
-
2400
-
Max.lifting height (m):
-
2800
-
Bucket width (mm):
-
1300
-
Rated bucket capacity (m³):
-
0.3
-
Overall dimension (mm):
-
3890*1300*1500
-
Brake system:
-
Oil brake
Quick Details
-
Engine Brand:
-
YUNNEI
-
Power:
-
18.4 KW
-
Brand Name:
-
HENGWANG
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
3890*1300*1500
-
Machine Weight:
-
145 kg
-
Bucket capacity:
-
0.3 m³
-
Model:
-
ZL916
-
Rated load (Ton):
-
0.6
-
Engine model:
-
Single-cylinder Diesel Engine
-
Rated power (Kw):
-
18.4
-
Max. discharging height (mm):
-
2400
-
Max.lifting height (m):
-
2800
-
Bucket width (mm):
-
1300
-
Rated bucket capacity (m³):
-
0.3
-
Overall dimension (mm):
-
3890*1300*1500
-
Brake system:
-
Oil brake

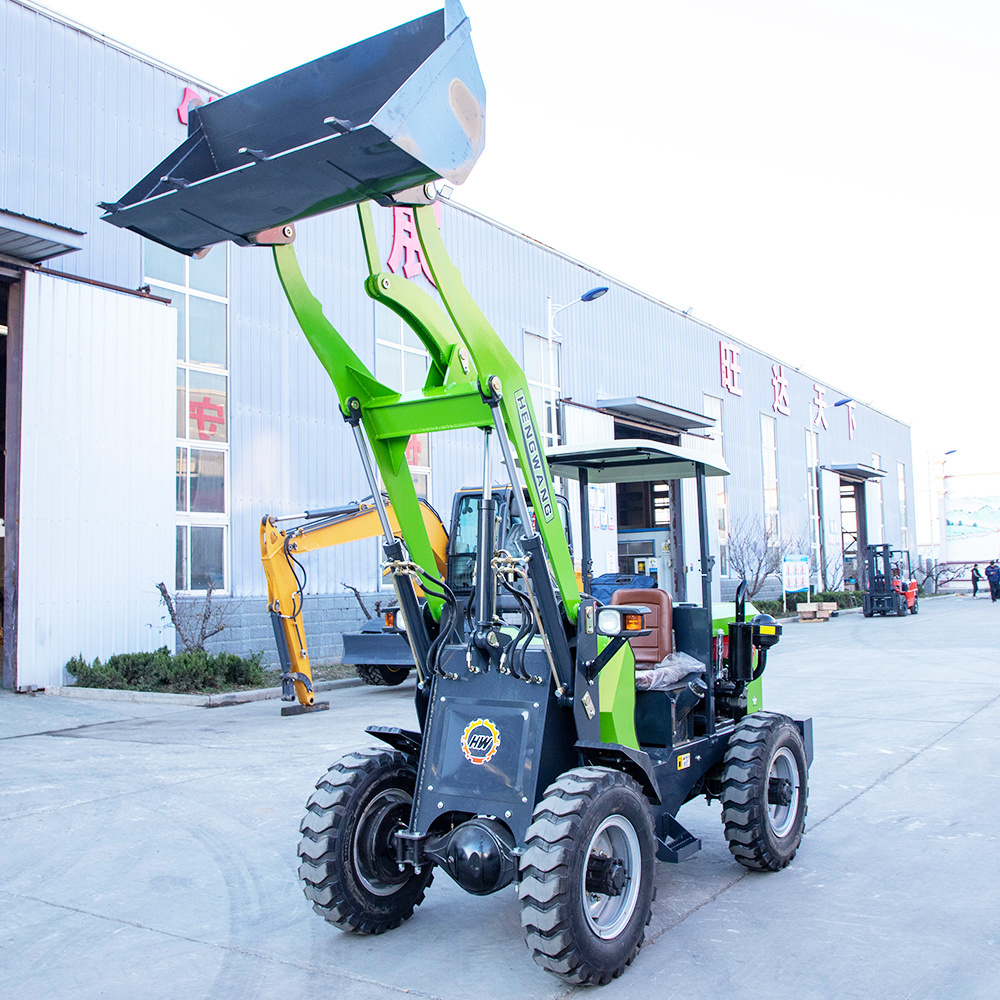

Products Description
Loader is a kind of earthwork construction machinery widely used in road, railway, construction, hydropower, port, mine and other construction projects. It is mainly used for shoveling bulk materials such as soil, sand, lime, coal, etc. , hard soil, etc. for light shoveling and digging operations. It can also carry out bulldozing, lifting and loading and unloading of other materials such as wood by changing different auxiliary working devices.
Technical Parameters
|
Model
|
916
|
|
Vehicle size
|
3890*1300*1500
|
|
Unloading height(m)
|
2.4
|
|
Vehicle weight (t)
|
1.45
|
|
Engine model
|
single cylinder
|
|
Horsepower
|
25
|
|
Engine power (kw)
|
18.4
|
|
Torque converter
|
08 gearbox
|
|
Bridge
|
130 Bridge
|
|
Tire
|
750-16 (standard 825)
|
|
Bucket width (mm)
|
1300
|
|
Rated bucket capacity (m³)
|
0.3
|
|
Rated load capacity (kg)
|
600
|
|
Unloading distance (mm)
|
802
|
|
Steering angle (°)
|
33
|
|
Wheel base (mm)
|
1100
|
|
Wheelbase (mm)
|
1796
|
Optional Accessories
