Quick Details
-
Brand Name:
-
TUBO
-
Voltage:
-
380/220v
-
Power:
-
50HZ
-
Dimension(L*W*H):
-
50 X 5 X 1.5M
-
Weight:
-
23000 kg
-
Product name:
-
ERW 32 Steel Pipe Produce Machine Small Size Tube Mill Line
-
Pipe shape:
-
Round Square Rectangle Pipe
-
Keyword:
-
pipe machine
-
Usage:
-
Produce Industrial Steel Pipe
-
Certification:
-
ISO9001
-
Welding type:
-
High Frequency Welding
-
Pipe diameter:
-
8 Mm ~ 219 Mm
-
Export port:
-
TianJin
-
Material of Pipe:
-
carbon steel
-
Speed:
-
0-120m/min
Quick Details
-
Pipe Material:
-
Carbon steel
-
Production Capacity:
-
6TON
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TUBO
-
Voltage:
-
380/220v
-
Power:
-
50HZ
-
Dimension(L*W*H):
-
50 X 5 X 1.5M
-
Weight:
-
23000 kg
-
Product name:
-
ERW 32 Steel Pipe Produce Machine Small Size Tube Mill Line
-
Pipe shape:
-
Round Square Rectangle Pipe
-
Keyword:
-
pipe machine
-
Usage:
-
Produce Industrial Steel Pipe
-
Certification:
-
ISO9001
-
Welding type:
-
High Frequency Welding
-
Pipe diameter:
-
8 Mm ~ 219 Mm
-
Export port:
-
TianJin
-
Material of Pipe:
-
carbon steel
-
Speed:
-
0-120m/min
Product Overview

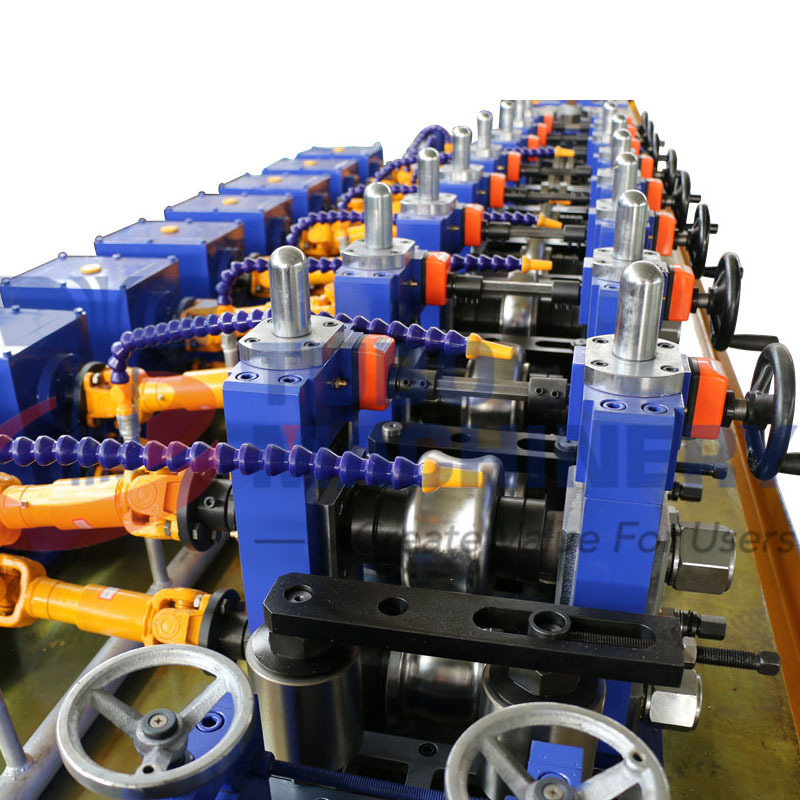

ERW 32 Steel Pipe Produce Machine Small Size Tube Mill Line
With more than 130 sets all types of CNC machining equipment, Hebei Tubo Machinery Co.,Ltd., manufactures and exported to over 15 countries of welded tube/pipe mill, cold roll forming machine and slitting line, as well as auxiliary equipment for more than 15 years. TUBO Machinery, as a partner of users, provides not only high precision machine products, but also technical support everywhere & anytime.
PRODUCT SPECIFICATIONS
2. GENERAL PROCESSING
{Steel Coil}→→ Double-head un-coiler →→Strip-head shear & Butt welder station→→Vertical Spiral Accumulator →→ Forming Section（Main driving unit + Flattening unit & Feeding guide + Forming Section) →→ Welding Section (Seam guide stand + High frequency induction welding system+ Squeeze Roll welding stand + External bead scarfing + Seam Grinding stand）→→ Emulsion Water Cooling Section →→ Sizing mill (Main driving unit + Sizing Section + Speed testing unit + Turk Heads Straightener) →→ Cold Cutting Saw →→ Run-out Table & Packing Device.
{Steel Coil}→→ Double-head un-coiler →→Strip-head shear & Butt welder station→→Vertical Spiral Accumulator →→ Forming Section（Main driving unit + Flattening unit & Feeding guide + Forming Section) →→ Welding Section (Seam guide stand + High frequency induction welding system+ Squeeze Roll welding stand + External bead scarfing + Seam Grinding stand）→→ Emulsion Water Cooling Section →→ Sizing mill (Main driving unit + Sizing Section + Speed testing unit + Turk Heads Straightener) →→ Cold Cutting Saw →→ Run-out Table & Packing Device.
PRODUCT CONFIGURATION
Successful Project
Packing&Shipping
Our Factory
FAQ
1. Q :
Are you manufacturer ?
A: Yes, We are manufacturer . More than 15 years R&D and Manufacturing Experience. We use more than 130 CNC machining equipment to guarantee our products perfect.
A: Yes, We are manufacturer . More than 15 years R&D and Manufacturing Experience. We use more than 130 CNC machining equipment to guarantee our products perfect.
2. Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details.
3. Q:What information do you need to supply a quotation?
A: 1.Maximum Yield Strength of the material
2.All pipe sizes needed (in mm)
3.Wall thickness (min-max)
A: We are flexible on payment terms, please contact us for details.
3. Q:What information do you need to supply a quotation?
A: 1.Maximum Yield Strength of the material
2.All pipe sizes needed (in mm)
3.Wall thickness (min-max)
4. Q: What is your advantages?
A: 1.Advanced mould share-use technology (FFX, Direct Forming Square). It saves a lot of invest amount.
2. Latest quick change technology to increase the output and reduce labor intensity.
3.130 CNC machining equipments to guarantee our products perfect.
4.More than 15 years R&D and Manufacturing Experience. 5. Customized According to Customer Requirements.
A: 1.Advanced mould share-use technology (FFX, Direct Forming Square). It saves a lot of invest amount.
2. Latest quick change technology to increase the output and reduce labor intensity.
3.130 CNC machining equipments to guarantee our products perfect.
4.More than 15 years R&D and Manufacturing Experience. 5. Customized According to Customer Requirements.
5. Q: Do you have after sales support?
A: Yes,we have. We have a 10-person -professional and strong installation team.
6.Q: How about your service?
A: 1.One year’s warranty.
2.Providing spare parts for life time at cost price.
3. Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
4.Provide technical service for facility reforming, refurbishment.
A: Yes,we have. We have a 10-person -professional and strong installation team.
6.Q: How about your service?
A: 1.One year’s warranty.
2.Providing spare parts for life time at cost price.
3. Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
4.Provide technical service for facility reforming, refurbishment.
