Quick Details
-
Brand Name:
-
ZHELE
-
Model Number:
-
ZHQ3-125A/3P
-
Rated Current:
-
16~125A
-
Frame current:
-
125
-
Product name:
-
Dual Power Automatic Transfer Switch ATS
-
Pole:
-
2P/3P/4P
-
Rated current in:
-
63~125A
-
Insulation Voltage::
-
AC 690V
-
Rated Voltage Ue:
-
AC400V 50/60Hz
-
working frequency:
-
50HZ/60HZ
-
Conversion time:
-
<50ms
-
Operation method:
-
Manual / Auto
-
product type:
-
MCB CB type
-
Product certification:
-
CCC,CE
Quick Details
-
Type:
-
CB
-
Number of Pole:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHELE
-
Model Number:
-
ZHQ3-125A/3P
-
Rated Current:
-
16~125A
-
Frame current:
-
125
-
Product name:
-
Dual Power Automatic Transfer Switch ATS
-
Pole:
-
2P/3P/4P
-
Rated current in:
-
63~125A
-
Insulation Voltage::
-
AC 690V
-
Rated Voltage Ue:
-
AC400V 50/60Hz
-
working frequency:
-
50HZ/60HZ
-
Conversion time:
-
<50ms
-
Operation method:
-
Manual / Auto
-
product type:
-
MCB CB type
-
Product certification:
-
CCC,CE

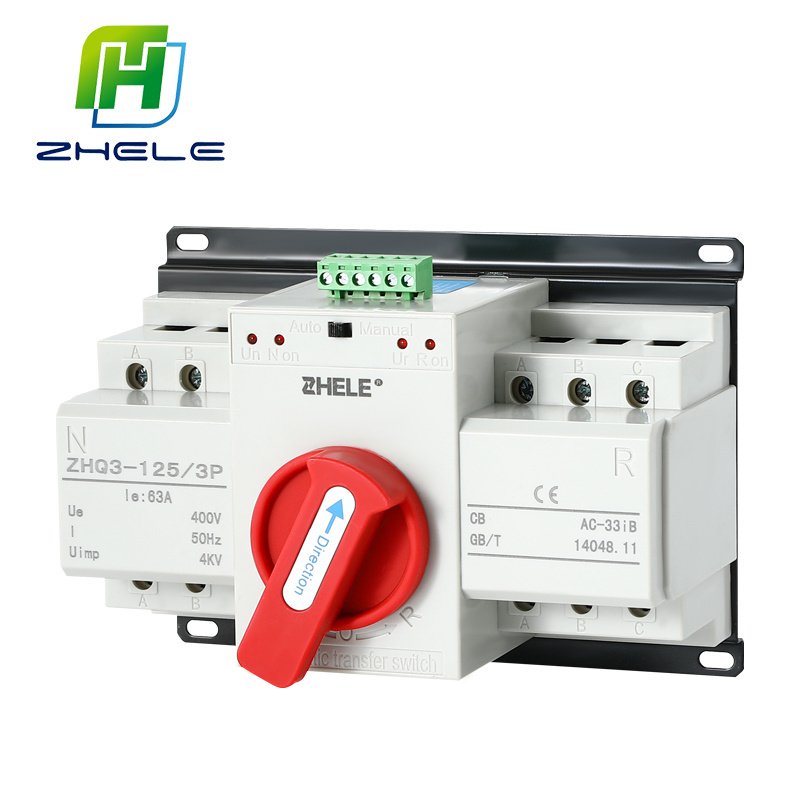

220V 400V AC 63A 80A 100A 125A 2P 3P 4P Single Phase ATS Dual Power Automatic Transfer Switch For Generator for solar
The ZHQ3 series dual power automatic transfer switch (referred to as the transfer switch) is suitable for dual circuit power supply systems with AC 50Hz or 60Hz, rated working voltage 400V, rated working current 63A and below. Selective conversion between two power sources can be carried out as needed. The product has short-circuit, overload, undervoltage, and voltage loss protection functions, as well as backup fire protection, double opening, and output closing signal functions. It is particularly suitable for the installation and use of lighting circuits in office buildings, shopping malls, banks, stations, hospitals, and high-rise buildings that require fire protection requirements.
Product features
1.Reasonable structure, small volume, nice appearance, provided with protective shield
safer and more reliable power supply
2.Complete protective functions, including open phase and loss-of-voltage protection
3.Noiseless, energy saving , simple installation , easy operation, reliable and stable performance
| Product Model | ZHQ3-125/2P 3P 4P |
| Rated Current le: A | 16A,20A,25A,32A, 40A, 50A, 63A,125A |
| Insulation Voltage Ui | AC690V 50/60Hz |
| Rated Voltage Ue | AC230V/AC400V |
| Classification | CB Class |
| Pole No | 2P, 3P, 4P |
| Mechanical Life | 5000times |
| Rated impulse withstand voltage | 4KV |
|
Rated short circuit making capacity Icm
|
6KA |
| Rated short circuit breaking capacity Icn | 4.5KA |
| Operating transfer time (no time delay) | ≤3s |
| Standard | IEC60947-6-1 |
| Operation | Manual / automatic |
