Quick Details
-
Power:
-
26.3KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDLG
-
Maximum Digging Height:
-
3420mm
-
Maximum Digging Depth:
-
3085mm
-
Machine Weight:
-
3600 kg
-
Max Digging Radius:
-
5300mm
-
Rated Speed:
-
2.8/4.8km/hour
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
small hydraulic crawler digger 3.5ton excavator machine for sale
-
Brand:
-
SDLG
-
Model:
-
635F
-
Application:
-
Building
-
Color:
-
Customized
-
Engine model:
-
4TNV88-BSLG
-
Engine type:
-
Four-cylinder, inline, water-cooled
-
Displacement:
-
2190ml
Quick Details
-
Operating Weight:
-
3955kg
-
Bucket capacity:
-
0.11m3
-
Engine Brand:
-
YANMAR
-
Power:
-
26.3KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDLG
-
Maximum Digging Height:
-
3420mm
-
Maximum Digging Depth:
-
3085mm
-
Machine Weight:
-
3600 kg
-
Max Digging Radius:
-
5300mm
-
Rated Speed:
-
2.8/4.8km/hour
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
small hydraulic crawler digger 3.5ton excavator machine for sale
-
Brand:
-
SDLG
-
Model:
-
635F
-
Application:
-
Building
-
Color:
-
Customized
-
Engine model:
-
4TNV88-BSLG
-
Engine type:
-
Four-cylinder, inline, water-cooled
-
Displacement:
-
2190ml
industri handheld audi a4 b7 mini bagger small wheel loaders rock cutter jcb backhoe loader hitachi zx50
Product Description

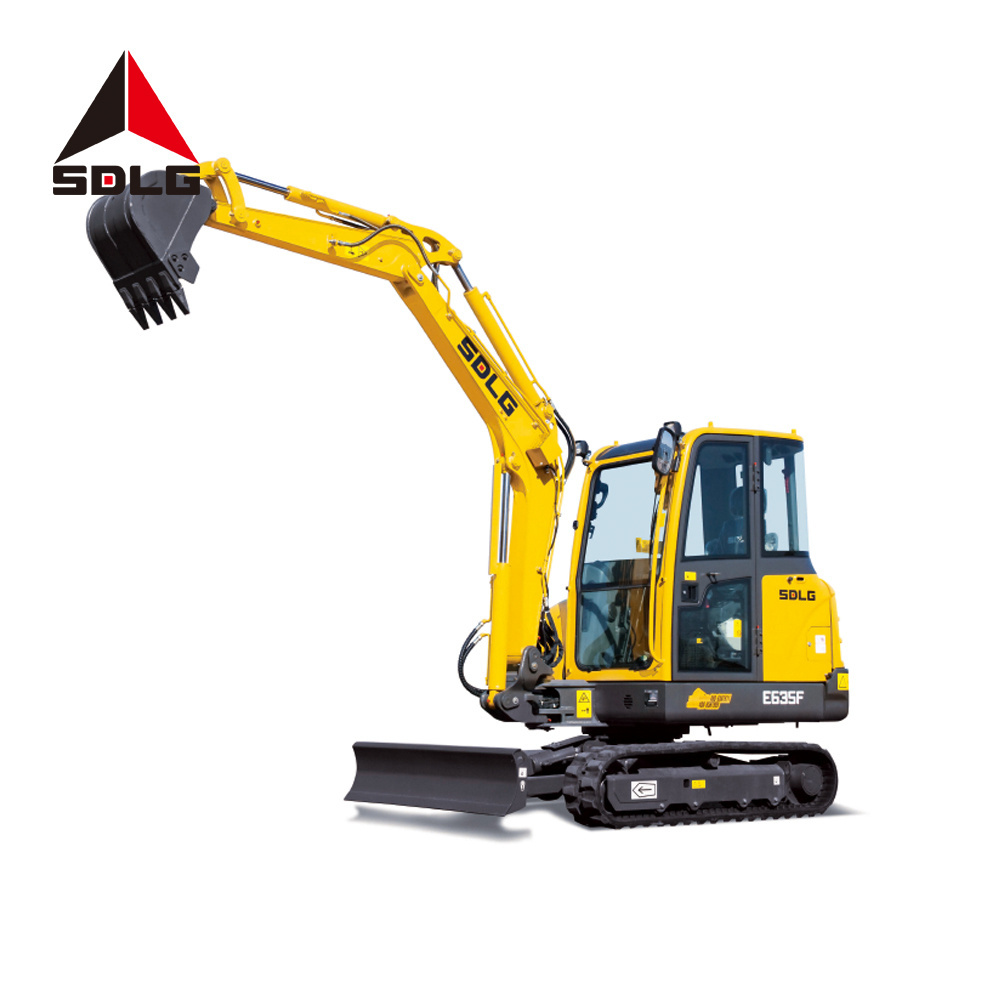

SDLG E635F Chinese small hydraulic crawler digger 3.5ton excavator machine for sale
E635F is a compact excavator that is newly designed by SDLG.It integrates energy saving ,reliability and comfort,is flexible in operation and low in noise,and is widely used in various working conditions such as farmland construction and urban transformation.
Detailed Images
Product Paramenters
|
Overall dimension
|
|
|
|
|
||||
|
Overall width of upper assembly
|
2450mm
|
|
|
|
||||
|
Overall width
|
1620mm
|
|
|
|
||||
|
Overall height
|
2450mm
|
|
|
|
||||
|
Tall swing radius
|
1400mm
|
|
|
|
||||
|
Overall height of engine hood
|
1535mm
|
|
|
|
||||
|
Ground clearance of counterweight
|
590mm
|
|
|
|
||||
|
wheelbase
|
1602mm
|
|
|
|
||||
|
Crawler length
|
2057mm
|
|
|
|
||||
|
crawler gauge
|
1320mm
|
|
|
|
||||
|
crawler pad width
|
300mm
|
|
|
|
||||
|
Overall length
|
5165mm
|
|
|
|
||||
|
Min. ground clearance
|
257mm
|
|
|
|
||||
|
Overall height of boom
|
1585mm
|
|
|
|
||||
|
Overall parameters
|
|
|
|
|
||||
|
Bucket capacity
|
0.11m3
|
|
|
|
||||
|
Overall operating weight
|
3600kg
|
|
|
|
||||
|
Max. excavation force
|
32kN
|
|
|
|
||||
|
Slew speed
|
9.5r/min
|
|
|
|
||||
|
Traveling speed(low/high)
|
2.8/4.8km/h
|
|
|
|
||||
|
Average ground pressure
|
33.5kPa
|
|
|
|
||||
|
Max. digging radius
|
5300mm
|
|
|
|
||||
|
Max. digging depth
|
3085mm
|
|
|
|
||||
|
Max. digging height
|
4800mm
|
|
|
|
||||
|
Max. dumping height
|
3420mm
|
|
|
|
||||
|
Min. front slewing radius
|
2040mm
|
|
|
|
||||
|
Engine
|
|
|
|
|
||||
|
Model
|
4TNV88-BSLG
|
|
|
|
||||
|
Type
|
Four-stroke, water-cooled,Inline
|
|
|
|
||||
|
engine power
|
26.3kw
|
|
|
|
||||
|
Displacement
|
2190ml
|
|
|
|
||||
|
Cylinder bore/Stroke
|
88*90mm
|
|
|
|
||||
|
Emission standard
|
GB 20891-2014(China Phase II)
|
|
|
|
||||
|
Max. torque
|
143.5N.m
|
|
|
|
||||
|
Min. fuel-consume ratio
|
244g/kW.h
|
|
|
|
||||
|
Traveling/swing system
|
|
|
|
|
||||
|
Qty. of carrier rollers(single side)
|
1
|
|
|
|
||||
|
Qty. of track rollers(single side)
|
4
|
|
|
|
||||
|
Traveling brake type
|
Wet and disc type
|
|
|
|
||||
|
Swing mode
|
Hydraulic drive internal tooth single-row ball-bearing
|
|
|
|
||||
|
Swing brake type
|
Wet and disc type
|
|
|
|
||||
|
Hydraulic system
|
|
|
|
|
||||
|
Hydraulic control type
|
Pilot proportional control valve
|
|
|
|
||||
|
Hydraulic system type
|
Constant power load sensitive single pump
|
|
|
|
||||
|
Max. flow
|
99L/min
|
|
|
|
||||
|
Main pump model
|
A10V045
|
|
|
|
||||
|
Operating pressure
|
234kgf/cm2
|
|
|
|
||||
|
Main valve model
|
SX12
|
|
|
|
||||
|
Arm cylinder-cylinder bore*diameter of piston rod*stroke
|
1-80*50*670mm
|
|
|
|
||||
|
Boom cylinder-cylinder bore*diameter of piston rod*stroke
|
1-90*50*559mm
|
|
|
|
||||
|
Bucket cylinder-cylinder bore*diameter of piston rod*stroke
|
1-70*45*490mm
|
|
|
|
||||
|
Fill capacity
|
|
|
|
|
||||
|
Fuel
|
55L
|
|
|
|
||||
|
Engine oil
|
7.4L
|
|
|
|
||||
|
Hydraulic oil
|
80L
|
|
|
|
||||
|
Antifreeze
|
7L
|
|
|
|
||||
|
Traveling reducer
|
2*0.6L
|
|
|
|
||||
Related Production To Choose
Online Service
Company Introduction
SDLG founded in 1972,is a world-famous manufacturer and service provider of loaders,excavators,rollers, backhoes and related parts in more than 130 countries and regions.
Our Advantages
Packing&Shipping
FAQ
yes,we SDLG are an official leading manufacture in construction machinery in China.
2、What kind terms of payment can be accepted?
Normally we can work on T/T or L/C term.
3、What about the delivery time?
7-30 days after receving the deposit.
4、what about the warranty time?
12 months after shipment or 2000 working hours.
