Quick Details
-
Brand Name:
-
Wirenet
-
Use:
-
FTTH FTTB FTTX Network
-
Warranty Time:
-
12 months
-
Connector Type:
-
SC APC
-
Insertion Loss:
-
7.5dB
-
Return Loss:
-
≥50dB
-
Package:
-
Carton Box
-
Working Temperature:
-
-40~85℃
-
Storage Temperature:
-
-40~85℃
-
Operating Wavelength:
-
1260-1650mm
Quick Details
-
Type:
-
PLC splitter
-
Model Number:
-
1x4 1x8 1x16 PLC Splitter
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wirenet
-
Use:
-
FTTH FTTB FTTX Network
-
Warranty Time:
-
12 months
-
Connector Type:
-
SC APC
-
Insertion Loss:
-
7.5dB
-
Return Loss:
-
≥50dB
-
Package:
-
Carton Box
-
Working Temperature:
-
-40~85℃
-
Storage Temperature:
-
-40~85℃
-
Operating Wavelength:
-
1260-1650mm

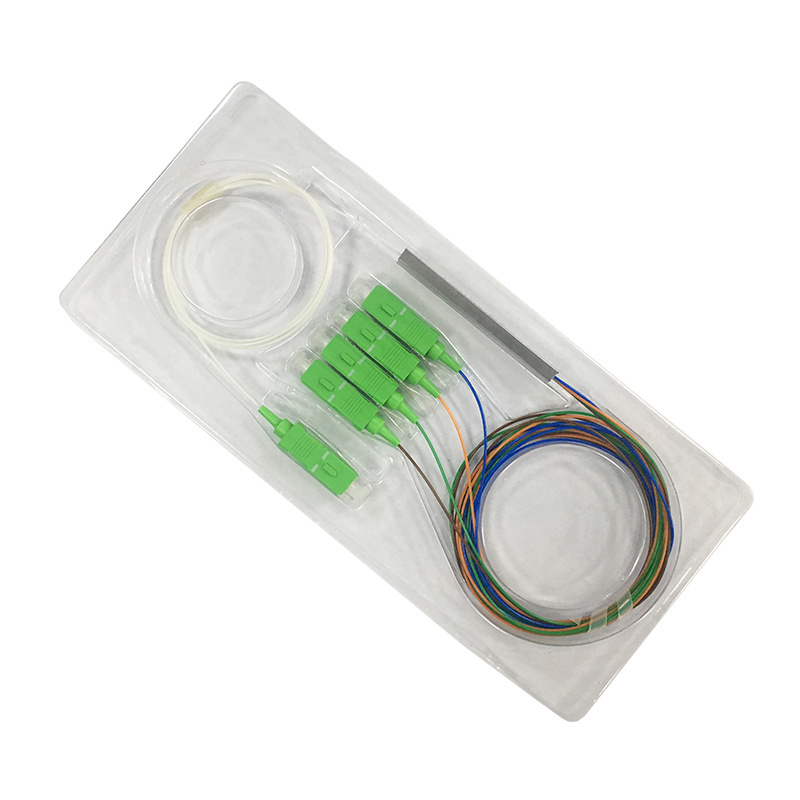

Mini Type 1x4 1x8 1x16 Single Mode Steel Tube PLC Splitter with SC APC Connector FTTH Optical Fiber optic Splitter
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.
Features
1. Low Insertion Loss/Low PDL/High Return Loss
2. Excellent Uniformity
3. Wide range of operating temperature
4. Telcordia GR-1209-CORE and GR-1221-CORE reliability
2. Excellent Uniformity
3. Wide range of operating temperature
4. Telcordia GR-1209-CORE and GR-1221-CORE reliability
Application
1. Fiber to The Home(FTTH)
2. Passive optical networks(PON)
3. Local Area Networks(LAN)
4. Cable Television ( CATV)
2. Passive optical networks(PON)
3. Local Area Networks(LAN)
4. Cable Television ( CATV)
Directly factory souring
|
Model Number
|
1x4 PLC
|
1x8 PLC
|
1x16
|
|
Type
|
FTTx Solutions
|
FTTx Solutions
|
FTTx Solutions
|
|
Application
|
FTTH FTTB FTTX Network
|
FTTH FTTB FTTX Network
|
FTTH FTTB FTTX Network
|
|
Connector Type
|
SC APC
|
SC APC
|
SC APC
|
|
Insertion Loss
|
7.5dB
|
10.2dB
|
13.5dB
|
|
Return Loss
|
≥50dB
|
≥50dB
|
≥50dB
|
|
Dimensions (H*W*L)(nm)
|
60*7*4
|
60*7*4
|
60*12*4
|
|
Package
|
Carton Box
|
Carton Box
|
Carton Box
|
|
Working Temperature
|
-40~85℃
|
-40~85℃
|
-40~85℃
|
|
Storage Temperature
|
-40~85℃
|
-40~85℃
|
-40~85℃
|
|
Color
|
White
|
White
|
White
|
|
Operating Wavelength
|
1260-1650mm
|
1260-1650mm
|
1260-1650mm
|
|
Certification
|
RoHS
|
RoHS
|
RoHS
|
About Us
Wirenet Technology Co., Ltd was established in 2009 in Hong Kong, and in 2011 registered in Shenzhen, China. Through nearly 13 years developing,currently have fiber optical cable factory& patch cord factory.Wirenet's main products are fiber optic telecommunication cable system, including indoor&outdoor fiber cable& patch cord and fiber distribution system.
We have our own sales team, R&D team and quality control team. ,For Guarantee, the Cable has 30 years of life time, and the fiber is ensured 70 years life time. For quality inquiry, our after-sales team will respond in the first time, and QA team will solve the problem at fast speed. So,OEM and ODM are always welcome.
