Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YIHAO
-
Power:
-
1100kw
-
Dimension(L*W*H):
-
L:80-150m B:2.2m H:5.5-7.5m
-
Weight:
-
90
-
Product name:
-
Glove Knitting Machine
Quick Details
-
Production Capacity:
-
100%
-
Voltage:
-
380V /220V
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YIHAO
-
Power:
-
1100kw
-
Dimension(L*W*H):
-
L:80-150m B:2.2m H:5.5-7.5m
-
Weight:
-
90
-
Product name:
-
Glove Knitting Machine
pecification
|

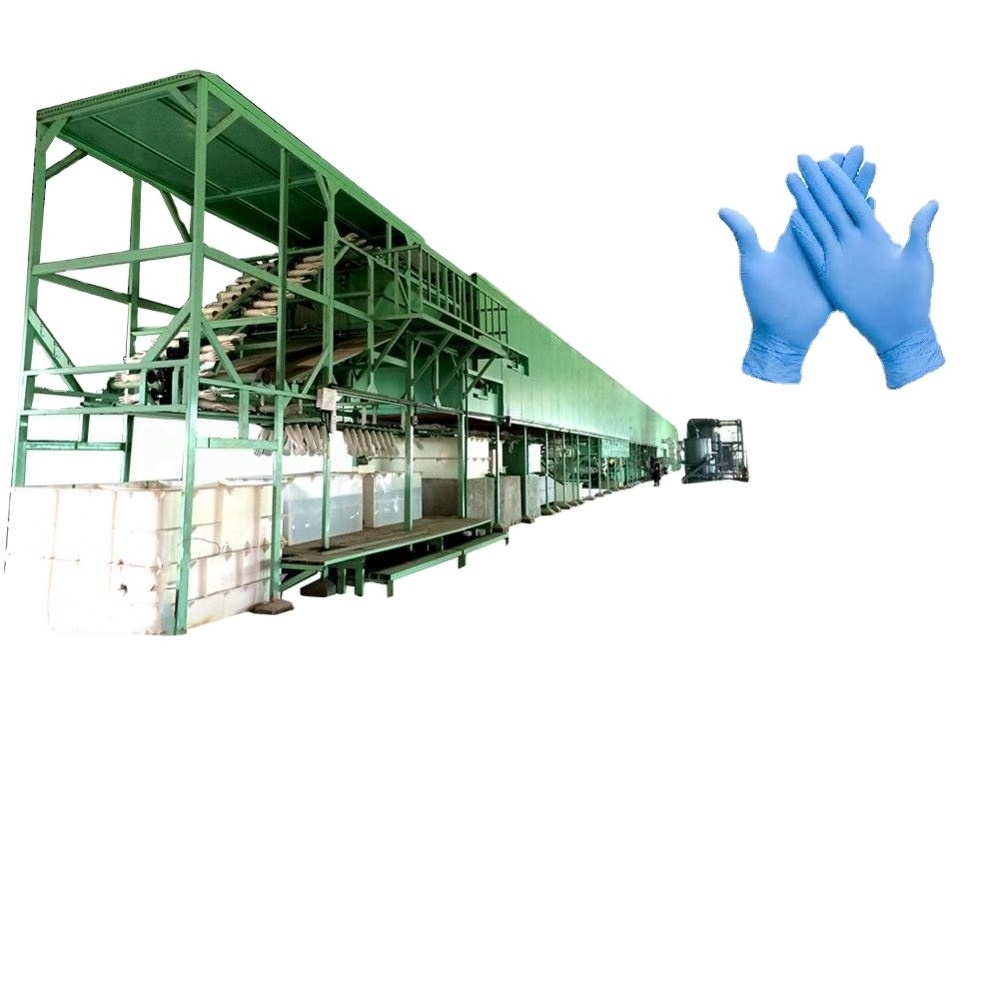

Product name |
PVC Gloves Production Line |
|
Product material |
Iron and steel |
|
Product color |
Grey |
|
Product size |
Large |
|
PVC Gloves Production Line Data |
|||
|
|
Model Specifications |
Model Specifications |
Model Specifications |
|
Name |
LTNG-80 |
LTNG-100 |
LTNG-180 |
|
Machine Size |
L*W*H 80m*2m*5m |
L*W*H 100m*2m*7m |
L*W*H 180m*2.2m*8m |
|
Heat Consumption |
1.3T/h |
1.8T/h |
3T/h |
|
Electricity Consumption |
40kw |
50kw |
90kw |
|
Water Consumption |
6T/h |
8T/h |
15T/h |
|
Chain |
500m |
630m |
1100m |
|
Speed Range |
120-1000R.P.M |
120-1200R.P.M |
120-1200R.P.M |
|
Speed |
0-15m/min |
0-16m/min |
0-22m/min |
|
Mould |
5000pcs |
6300pcs |
11000pcs |
|
Production |
110000pcs/24h |
220000pcs/24h |
420000pcs/24h |
This is our process equipment :
This is our production site:
1,Adopt the most advanced gloves production technology and production process layout, product qualification rate is more than 99%,
protein content is lower than 120 micrograms per gram;
2,TPU Coating technology
3,Imported surfactant solidifier, finished membrane is uniform, no powder mold release
4,The introduction of foreign advanced transmission main chain structure, chain little resistance during operation, Production of
high speed, stable operation
5,A main motor drag, solve the drag, difficult to synchronize, fault point, difficult maintenance, and other issues
6,Adopt vertical hot air circulation drying oven, compared with other forms of hot air circulation, save energy consumption by
almost 20%
7,Used for cleaning mold splitter six roller long hair scrub mould technology;
8,Mold directional, machine printing technology;
9,A variety of specifications of production, on the same edge automatic adjustment, the PU edge roller, long service life;
10,Can design according to the needs of customers of different length, height, cost models;
