Quick Details
-
Product name:
-
Lawn Nail making Machine
-
Advantage:
-
multifunction
-
process metal wire diameter range:
-
2-6mm
-
process Lawn Nail max length:
-
350mm
-
the head type of Lawn Nail:
-
Flat head and Bevel head
-
process shoulder width:
-
differ shoulder width differ mold
-
process leg length:
-
adjustable
-
brand:
-
provincial class excellent brand
-
warranty:
-
1 year
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
greatcity
-
Weight (KG):
-
780
-
Product name:
-
Lawn Nail making Machine
-
Advantage:
-
multifunction
-
process metal wire diameter range:
-
2-6mm
-
process Lawn Nail max length:
-
350mm
-
the head type of Lawn Nail:
-
Flat head and Bevel head
-
process shoulder width:
-
differ shoulder width differ mold
-
process leg length:
-
adjustable
-
brand:
-
provincial class excellent brand
-
warranty:
-
1 year

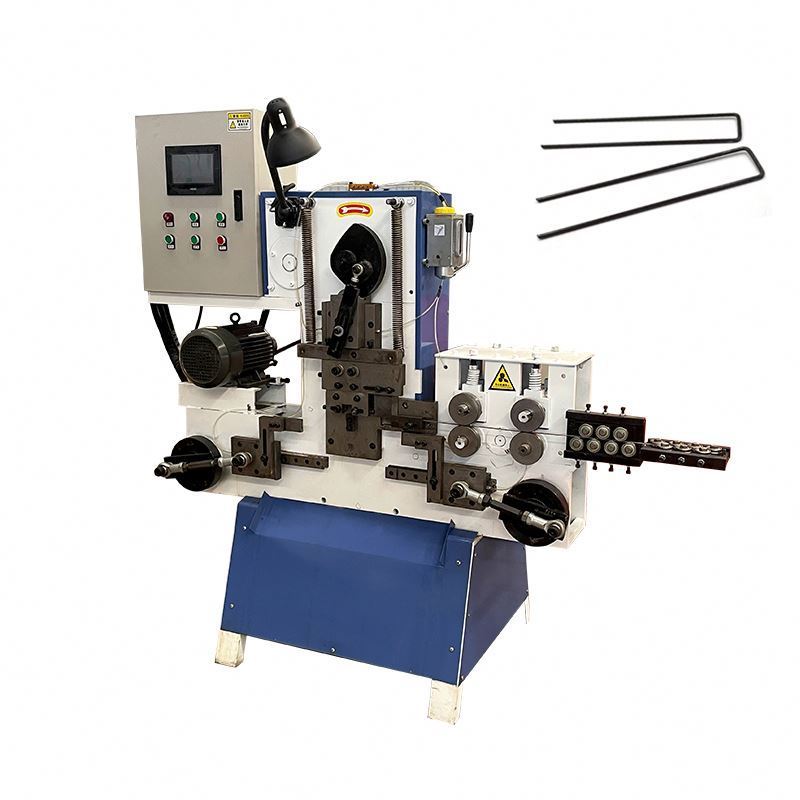

adjustable speed double wire U shaped lawn nail making machine with factory price
Our factory specializes in developing and producing all kinds of metal wire active bending machines. The Lawn Nail Machine can straighten, block, shape and bend the coiled wire once according to customer requirements. It has the characteristics of fast production speed and high bending precision, greatly improving the production power, and saving labor costs. The stainless steel wire bending machine produced by our factory can bend different shapes, such as U-shaped, semicircular, square and other shapes after changing the mold. It is applicable to iron wire, copper wire, stainless steel wire, aluminum wire and other metal wires. The whole process is self completed.
Lawn Nail Machine is suitable to produce U shaped nails from galvanised wire for wooden poles for fencing.
The machine in case of metal wire entaglement, metal wire breakage or lack of metal wire supply, stops and a corresponding message is displayed on the touch screen. The parameters (number of pieces to be produced) are easily entered via touch screen.
Main Features of Lawn Nail Machine
1) Wire Feeding by stepper motor, high precision.
2) Automatic wire feeding, cutting, forming,counting and continuous production.
3) Well designed and structured, easy to operate and maintain;
4) Driven by stepper motor and computer control, so operation is reliable, stable, fast and precise.
5) Main part Big Gear is made of cast iron QT600-3, and heat treated. The hardness is HB280-320. The slider is made of alloy wear resistant cast iron, and heat treated, its abrasion resistance is good. The gear is made of 40Cr, and heat treated. Hardness is HRC52-5). The shaft is made of 45# or 40Cr steel and heat treated. The wire feeding wheel, straightening wheel are made of high quality alloy steel, and vacuum heat treated, hardness can reach HRC58-62., high strength, wear resistance is good.
6) Long service life.
7) The nail length is adjustable.
The technology datas of Lawn Nail Machine
| Product name | Lawn Nail making Machine |
| control type | PLC , touch screen |
| process metal wire diameter range | 2-6mm |
| process Lawn Nail max length | 350mm |
| the head type of process Lawn Nail | Flat head and Bevel head |
| process shoulder width | differ shoulder width differ mold |
| process leg length | adjustable |
| warranty | 1 year |
Other model machine is able to produce 6-12 mm diameter Lawn Nail Machine .
The detailed show of Lawn Nail Machine
The work piece show of Lawn Nail Machine
Packing: I n standard export wooden case for Lawn Nail Machine
Delivery time:within 15 days after receiveing your advanced payment.
Payment terms:. 30%T/T in advanced payment,the left payment should be paid after we finish our production.( we will take machine and packing photoes for your checking )
We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him ASAP.
