Quick Details
-
Travel (W-axis) (mm):
-
0 mm
-
Range of Spindle Speed(r.p.m):
-
75 r.p.m
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
THL
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
360x345x1100mm
-
Weight (T):
-
0.6 T
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support
-
Power:
-
550w
-
Weight:
-
100kg
-
After Warranty Service:
-
Video technical support, Spare parts
-
Local Service Location:
-
Peru, Russia, Ukraine
-
Certification:
-
ISO9001:2008
Quick Details
-
Table Travel (X) (mm):
-
0 mm
-
Table Travel (Y) (mm):
-
0 mm
-
Table Travel (Z) (mm):
-
0 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Range of Spindle Speed(r.p.m):
-
75 r.p.m
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
THL
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
360x345x1100mm
-
Weight (T):
-
0.6 T
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support
-
Power:
-
550w
-
Weight:
-
100kg
-
After Warranty Service:
-
Video technical support, Spare parts
-
Local Service Location:
-
Peru, Russia, Ukraine
-
Certification:
-
ISO9001:2008

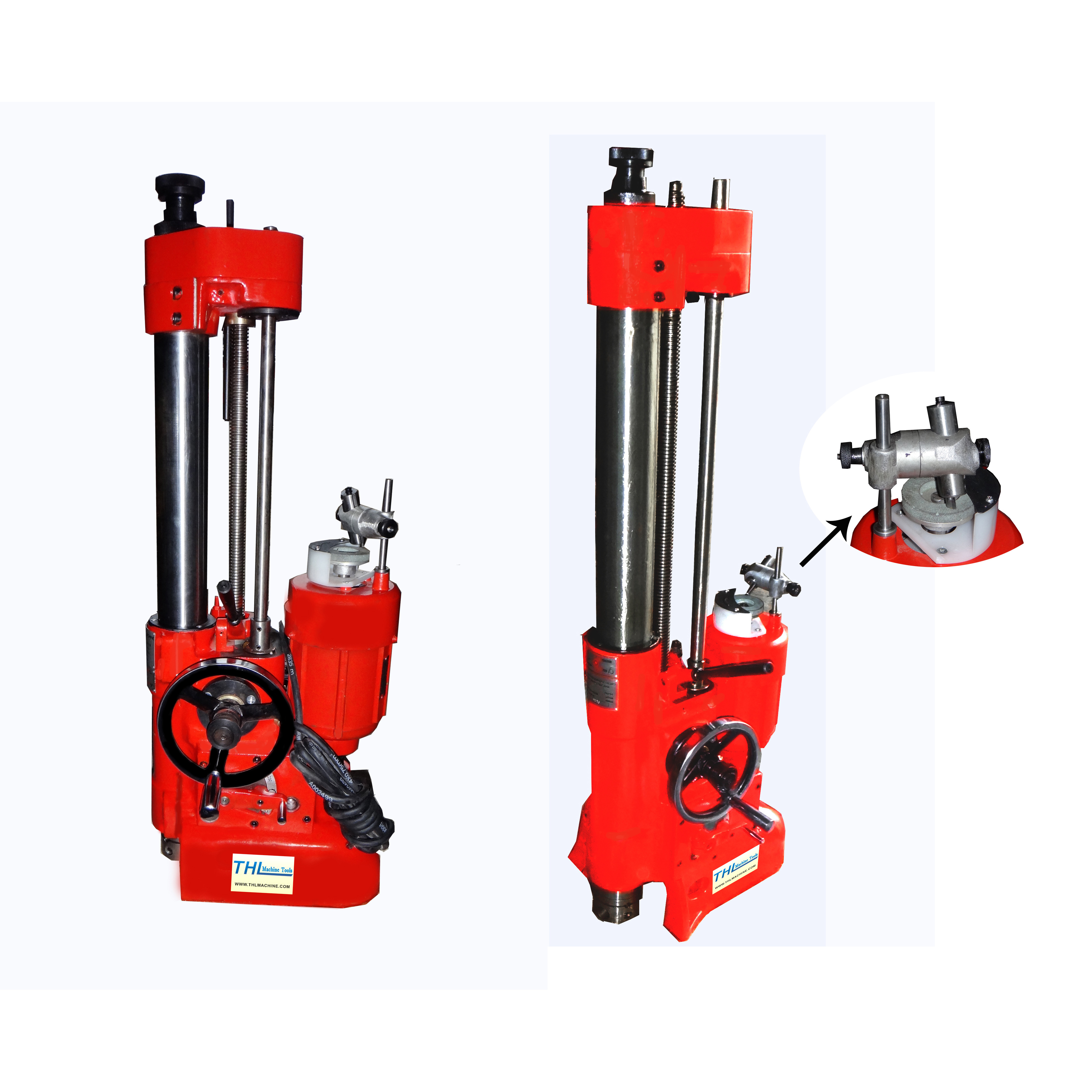

This machine is small in size, light in weight, it is mainly used for reboring engine cylinders of motor cycles, automobiles and middle & small-tractors.
| Model | T8014A | T8016A | |
| Boring diameter | Φ 65- Φ 140 mm | Φ 80- Φ 165 mm | |
| Max. boring depth | 300 mm | 400 mm | |
| Spindle speed | 250;380 r/min | 200;300 r/min | |
| Spindle feed | 0.11 mm / r | 0.12 mm / r | |
| Spindle rapid reset | 636 mm / min | 780 mm / min | |
| Motor | Voltage | 220/380 V | 220/380 V |
| Power | 0.25/0.37 Kw | 0.25/0.37 Kw | |
| Speed | 1440 r/min | 1440 r/min | |
| Overall dimensions | 320×330×850 mm | 360×345×1100 mm | |
| Packing dimensions | 540×470×1030 mm | 62 Kg | |
| Weight | 500×490×1270 mm | 85 Kg | |
