Quick Details
-
Model Number:
-
WM-B1 1/5
-
Material:
-
Brass
-
Feature:
-
Multi-jet
-
Meter size:
-
32mm
-
Flow range:
-
0-12.5m3/h
-
Maximum pressure range:
-
1.0Mpa/1.6Mpa
-
Working temperature:
-
Cold type<35℃,hot type<90℃
Quick Details
-
Type:
-
Multi-jet meters
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Bingo
-
Model Number:
-
WM-B1 1/5
-
Material:
-
Brass
-
Feature:
-
Multi-jet
-
Meter size:
-
32mm
-
Flow range:
-
0-12.5m3/h
-
Maximum pressure range:
-
1.0Mpa/1.6Mpa
-
Working temperature:
-
Cold type<35℃,hot type<90℃
Product Description
APPLICATION:
The range of water meter is used to measure the total quantity of cold potable water,consumed in household or a resident unit,passing through the pipeline.
|
Product name
|
WM-B1 1/5
|
|
Material
|
Brass
|
|
Temperature
|
Cold type≤35℃,hot type≤90℃
|
|
Meter size
|
32mm
|
|
Feature
|
Multi- jet
|
|
Max.pressure
|
1.0/1.6Mpa
|
|
Weight
|
3.2Kg
|
|
Flow range
|
0-12.5m3/h
|

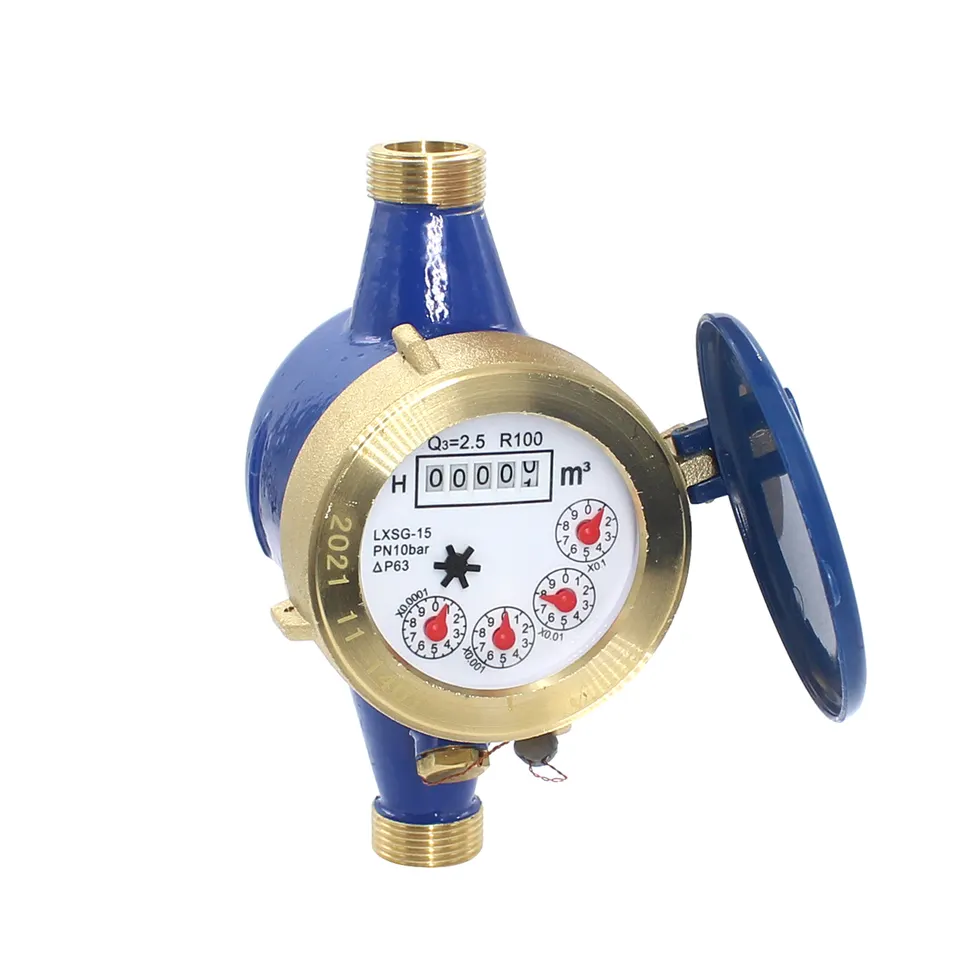

Detailed Images
Parameters
|
Meter size (mm)
|
Max flow range(m3/h)
|
Min flow range(m3/h)
|
Min Reading
|
Max Reading
|
|
15
|
3.125
|
0.03125
|
0.0001
|
99999
|
|
20
|
5
|
0.05
|
|
|
|
25
|
7.875
|
0.07875
|
|
|
|
32
|
12.5
|
0.125
|
|
|
|
40
|
20
|
0.2
|
|
|
|
50
|
31.25
|
0.5
|
|
|
|
Meter size
|
DN
|
15
|
20
|
25
|
32
|
40
|
50
|
|
Length
|
L
|
165
|
195
|
225
|
230
|
245
|
300
|
|
Width
|
W
|
98
|
98
|
103
|
103
|
125
|
135
|
|
Height
|
H
|
114
|
114
|
114
|
114
|
144
|
155
|
|
Connection
|
d
|
R1/2"
|
R3/4"
|
R1"
|
R1-1/4"
|
R1-1/2"
|
R2"
|
|
|
D
|
G3/4"
|
G1"
|
G1-1/4"
|
G1-1/2"
|
G2"
|
G2-1/2"
|
|
Weight
|
Kg
|
1.2
|
1.6
|
2.6
|
3.2
|
4.5
|
7
|
