Quick Details
-
Model Number:
-
WG-3KW
-
Certification:
-
CE, ISO
-
Voltage:
-
220v/380v, 220V/240/380/415V options
-
Flow Rate:
-
0.015-0.06
-
Rated Power:
-
3kw-10kw
-
Name:
-
hydro generator
-
hydro generator Certificate:
-
CE ISO9001
-
hydro generator Warranty:
-
1 Year
-
Frequency:
-
50Hz/60HZ
-
hydro generator COLOR:
-
Green options
-
Usage:
-
Hydraulic direct drive generator
-
hydro generator Phase:
-
single phase/three phase
-
hydro generator Material:
-
copper
Quick Details
-
Power:
-
3kw-30kw
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JET POWER
-
Model Number:
-
WG-3KW
-
Certification:
-
CE, ISO
-
Voltage:
-
220v/380v, 220V/240/380/415V options
-
Flow Rate:
-
0.015-0.06
-
Rated Power:
-
3kw-10kw
-
Name:
-
hydro generator
-
hydro generator Certificate:
-
CE ISO9001
-
hydro generator Warranty:
-
1 Year
-
Frequency:
-
50Hz/60HZ
-
hydro generator COLOR:
-
Green options
-
Usage:
-
Hydraulic direct drive generator
-
hydro generator Phase:
-
single phase/three phase
-
hydro generator Material:
-
copper
Product Description

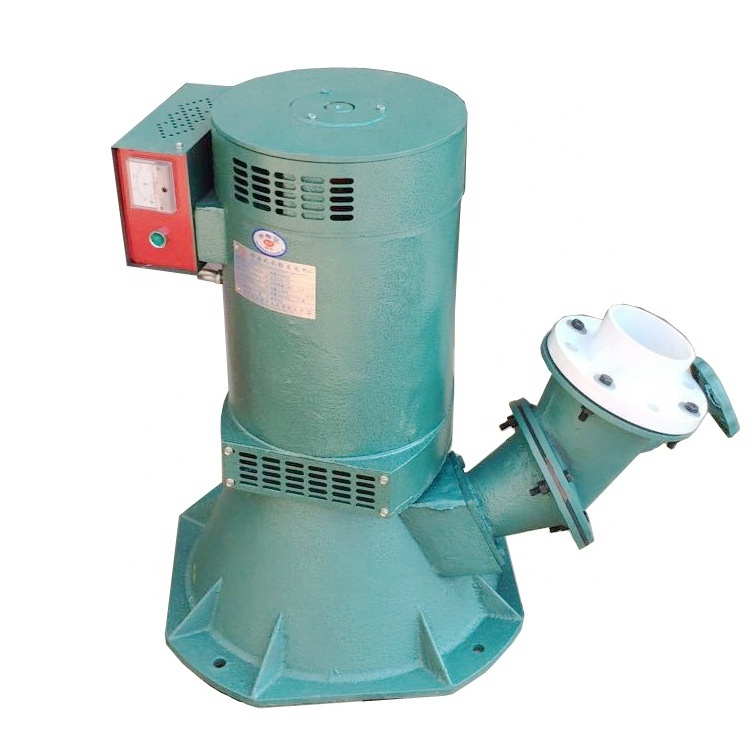

Turgo turbine generator suit for water head over 15m, flow over 0.015m3/s. The main features are:
1. Turbine and generator are integrated, which is more easy to install and maintain 2. Hydraulic direct drive generator, without more drive mechanism and efficiency is much higher, Extremely low failure rate.
3. Auto voltage rectifier is installed within generator, the voltage is more stable.
4. Optional single-phase voltage 220-240V or 3-phase voltage 380V-415V. The generator's unique voltage excitation design, be suitable for provide long-distance voltage transmission.
5. Mainly used in: mountainous water sources sufficient and water head more than 8 meters
Size Information
|
Model
|
Rated Output
|
Max Output
|
Voltage
Single phase / 3-phase
|
Frequency
|
Water head/Altitude
|
Water Flow
|
|
WG-3KW
|
3KW
|
3.3KW
|
220-240V / 380-415V
|
50Hz ± 5%
|
15M-30M
|
0.015 - 0.03（m3/s)
|
|
WG-5KW
|
5KW
|
5.5KW
|
220-240V / 380-415V
|
50Hz ± 5%
|
15M-40M
|
0.015 - 0.04（m3/s)
|
|
WG-8KW
|
8KW
|
8.8KW
|
220-240V / 380-415V
|
50Hz ± 5%
|
25M-55M
|
0.025 - 0.05（m3/s)
|
|
WG-10KW
|
10KW
|
11KW
|
220-240V / 380-415V
|
50Hz ± 5%
|
30M-60M
|
0.035 - 0.06（m3/s)
|
|
WG-20KW
|
20kw
|
22kw
|
220-240V / 380-415V
|
50Hz ± 5%
|
30-70m
|
0.075m3/s
|
|
WG-30KW
|
30kw
|
33kw
|
220-240V / 380-415V
|
50Hz ± 5%
|
30-80m
|
0.085m3/s
|
