Quick Details
-
Model Number:
-
SCKKBWG001
-
Specification:
-
ID4.5mm to ID91mm
-
Length:
-
0.5m, 1m ~ 50m, 100m, 200m,400
-
Thickness:
-
0.27mm to 4mm, 0.27mm~0.7mm
-
Standard:
-
IATF16949
-
Cable color:
-
Orange,Black, Customized
-
Certificate:
-
IATF16949, UL94,CE, ROHS, REACH, EN45545
-
Working temperature:
-
-40℃~150℃
-
Fire Rating:
-
UL94-V0
-
Outer Diameter:
-
7.0mm~106mm
-
Inner Diameter:
-
4.5mm~91mm
-
Rated Voltage:
-
1000V
-
Feature:
-
Flame retardant,High mechanical strength,Flexible & Resistance bend
Quick Details
-
Processing Service:
-
Moulding, Cutting, Slitting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zhonghe
-
Model Number:
-
SCKKBWG001
-
Specification:
-
ID4.5mm to ID91mm
-
Length:
-
0.5m, 1m ~ 50m, 100m, 200m,400
-
Thickness:
-
0.27mm to 4mm, 0.27mm~0.7mm
-
Standard:
-
IATF16949
-
Cable color:
-
Orange,Black, Customized
-
Certificate:
-
IATF16949, UL94,CE, ROHS, REACH, EN45545
-
Working temperature:
-
-40℃~150℃
-
Fire Rating:
-
UL94-V0
-
Outer Diameter:
-
7.0mm~106mm
-
Inner Diameter:
-
4.5mm~91mm
-
Rated Voltage:
-
1000V
-
Feature:
-
Flame retardant,High mechanical strength,Flexible & Resistance bend
|
Specification
ID*OD
|
Id(MM)
|
OD(MM)
|
Wall thickness H(MM)
|
Wave spacing A(mm)
|
Wave width (mm)
|
Packing (M/roll)
|
|
4.5*7
|
4.6±0.3
|
7.0±0.3
|
0.27±0.05
|
2.1
|
1.45
|
400
|
|
5.2*7.2
|
5.2±0.3
|
5.2±0.3
|
0.27±0.05
|
2.1
|
1.45
|
400
|
|
5.5*8
|
5.5*8
|
8.0±0.3
|
0.27±0.05
|
2.1
|
1.45
|
400
|
|
6*9
|
6.0±0.3
|
9.0±0.3
|
0.27±0.05
|
2.5
|
1.75
|
200
|
|
7*10
|
7.0±0.3
|
10.0±0.3
|
0.27±0.05
|
2.7
|
1.95
|
200
|
|
10* 13
|
10.2±0.3
|
13.0±0.3
|
0.30±0.05
|
2.7
|
1.95
|
200
|
|
12*15.8
|
12.9±0.3
|
16.0±0.3
|
0.30±0.05
|
3.2
|
2.3
|
200
|
|
15.2*18.7
|
15.2±0.4
|
18.7±0.4
|
0.35±0.05
|
3.2
|
2.35
|
200
|

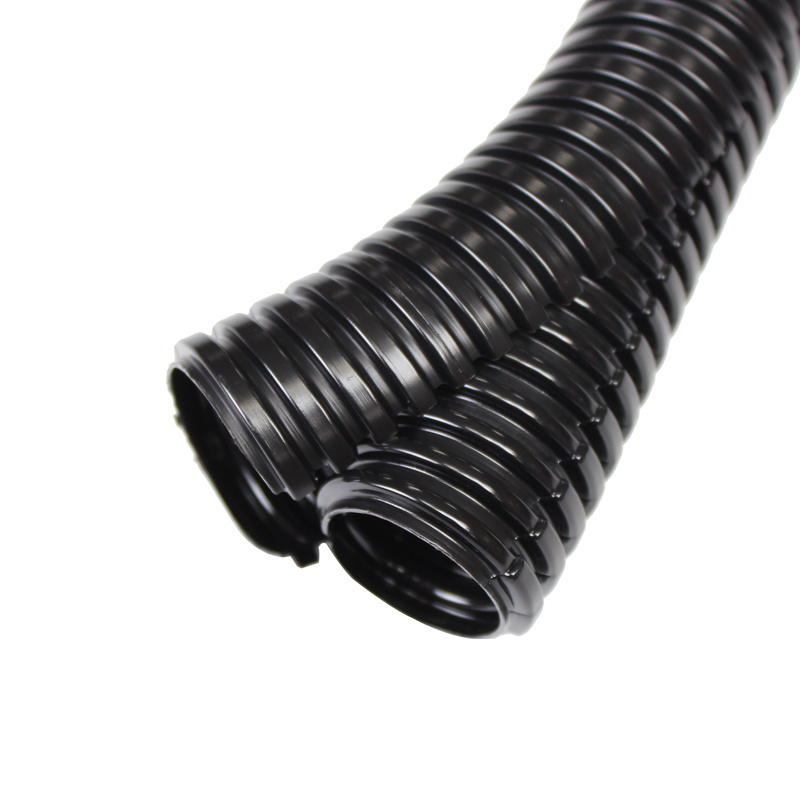

A standard weight corrugated conduit with two slit openings thateases installation and maintenance of wire and
cable bundles. The interlocking construction is excellent for retrofitting projects. PA6 material is highly resistant
to solvents and oils, and offers UV and abrasion resistance.
Double slit opening offers easy access during installation and maintenanceMaterial is easy to use and cut;
reduces installation time and labor costsFlexible, abrasion resistant and durable for a variety of applicationsGood
impact strength; recovers quickly if crushed UV resistant; suitable for use in outdoor applicationsOffered in fine or
course corrugated pitch
cable bundles. The interlocking construction is excellent for retrofitting projects. PA6 material is highly resistant
to solvents and oils, and offers UV and abrasion resistance.
Double slit opening offers easy access during installation and maintenanceMaterial is easy to use and cut;
reduces installation time and labor costsFlexible, abrasion resistant and durable for a variety of applicationsGood
impact strength; recovers quickly if crushed UV resistant; suitable for use in outdoor applicationsOffered in fine or
course corrugated pitch
Appilation
Widely applied in the industries like Robots & automation,new energy automobile ,aviation,train & metro,railway
traffic equipment,marine vessel,electrical power generation,chemical industry,mechanical arms & equipment,
illuminating equipment and electrical insulating protection,etc.
Widely applied in the industries like Robots & automation,new energy automobile ,aviation,train & metro,railway
traffic equipment,marine vessel,electrical power generation,chemical industry,mechanical arms & equipment,
illuminating equipment and electrical insulating protection,etc.
