Quick Details
-
Weight:
-
30kg
-
Size:
-
35*35*150cm
-
Weight (KG):
-
30 kg
-
Product name:
-
Spacer Tube RO Membrane STRO
-
Application:
-
Lanfill leachate and other high TSS waste water
-
Membrane material:
-
Composite Polyamide
-
Element configuration:
-
Spiral, filer glass, brine seal
-
Stable salt rejection (%):
-
99
-
Max. operation pressure (bar):
-
120,90,75
-
Max. operation temperature (℃):
-
40
-
Feed (SDI):
-
≤ 6.5
-
Chlorine tolerance (ppm):
-
≤ 0.1
-
Vessel material:
-
Fiberglass, FRP
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
HatChee
-
Material:
-
Carton
-
Weight:
-
30kg
-
Size:
-
35*35*150cm
-
Weight (KG):
-
30 kg
-
Product name:
-
Spacer Tube RO Membrane STRO
-
Application:
-
Lanfill leachate and other high TSS waste water
-
Membrane material:
-
Composite Polyamide
-
Element configuration:
-
Spiral, filer glass, brine seal
-
Stable salt rejection (%):
-
99
-
Max. operation pressure (bar):
-
120,90,75
-
Max. operation temperature (℃):
-
40
-
Feed (SDI):
-
≤ 6.5
-
Chlorine tolerance (ppm):
-
≤ 0.1
-
Vessel material:
-
Fiberglass, FRP
Spacer Tube RO/NF STRO / STNF
STRO/STNF Membrane Introduction
With the development of membrane technology industry, there are differentiated requirements to the performance of the membrane products, such as lower feed quality requirements, higher pressure to improve concentration ratio, longer cleaning cycle and service life. As a result, the open channel type with high pressure membrane arises at the historic moment.
> Used for sea water desalination and waste water treatment.
> Spacer tube (ST) module is high strength design, from 70bar up to 120 bar operating pressure.
> Open feed spacer with low flow resistance and concentration polarization.
> Spiral wound structure with more membrane area.
Features
High strength design, up to 120 bar operating pressure
Open feed spacer with low flow resistance and concentration polarization
Spiral wound structure with more membrane area
More options for feed spacer
Applications
Industrial wastewater
High salts wastewater
Spiral wound RO/NF concentrates
Open feed spacers

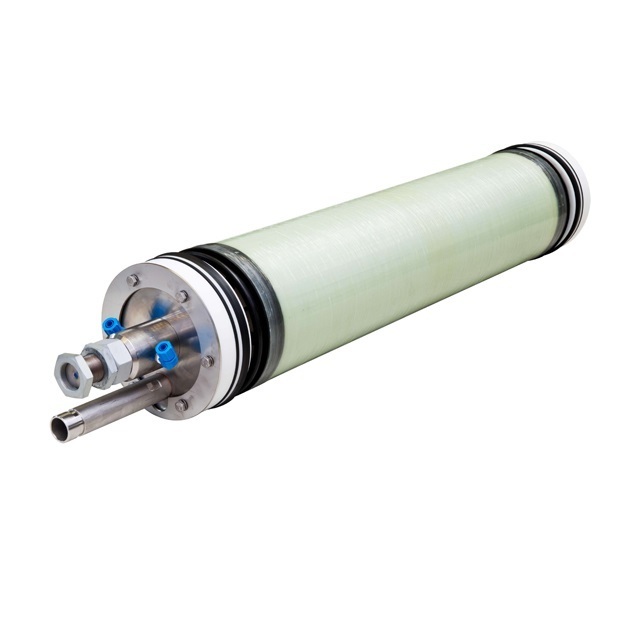

STRO/STNF module
STRO/STNF membrane
High pressure vessel
SUS center link
Inlet and outlet pipe and accessories
Comparison of STRO/STNF Membrane and conventional RO/NF Membrane
Identical
High membrane area
Integrated design
Cross flow filtration
Difference
SUS center link with high strength and stability
Uniform internal water distribution structure
Reduced impact of the membrane module flow, higher cross-flow
Open feed channel
STRO/STNF Membrane Specifications
|
Type |
STRO |
STNF |
|
|
Model |
STRO1-8035 |
STRO5-8042 |
STNF2-8042 |
|
Membrane type |
RO1 |
RO5 |
NF2 |
|
Membrane materia |
Composite Polyamide |
||
|
Membrane effective area (m2) |
25 |
27 |
27 |
|
Element configuration * |
Spiral, fierglass, brine seal |
||
|
Feed flux range (m3/h) |
5.5-12 |
5.5-12 |
|
|
Recommended feed flux (m3/h) |
10 |
10 |
|
|
Stable permeate flux ** (m3/d) |
24 |
18 |
25 |
|
Stable salt rejection **(%) |
98.5 |
99.5 |
98 |
|
Min. salt rejection (%) |
97.5 |
99 |
96 |
|
Feed spacer |
Special open channel |
||
|
Max. TMP (bar) |
0.7 |
0.7 |
|
|
Max. operation pressure (bar) |
120 |
90 |
|
|
Max. operation temperature (℃) |
40 |
40 |
|
|
Feed (SDI) |
≤ 6.5 |
≤ 6.5 |
|
|
pH (continuous) |
3-11 |
3-11 |
|
|
pH (cleaning) |
2-12 |
2-12 |
|
|
Chlorine tolerance (ppm) |
≤ 0.1 |
≤ 0.1 |
|
Salt seal installed on the end of the flow, low pressure side / permeate side.
Stable flux, salt rejection based on the following test conditions:
RO1: 2000mg/l NaCl , pressure 15.5bar, recycle rate 15% , temperature 25℃, pH=8.
RO5:32,000 mg/l NaCl , pressure 55bar, recycle rate 8%, temperature 25℃, pH=8.
NF2:2000 mg/l MgSO4, pressure 7barr, recycle rate 15% , temperature 25℃, pH=8.
Note: We can provide any flat sheet membrane to make ST module, for example: STRO4-8035, STRO5-8035, STRO1-8042, STNF1-8042, etc.
|
Model |
8035 |
8042 |
|
Element total length (A) |
890mm |
1070mm |
|
Element diameter (B) |
200mm |
200mm |
|
Center tube outer diameter (C) |
60.2mm |
60.2mm |
|
Membrane body length (D) |
838mm |
1016mm |
STRO Membrane Element
Features:
Spiral High Pressure, High Rejection, Open Spacer.
Applications:
Landfill Leachate & Other High TSS Water.
STRO Membrane Element Specification
|
Model |
STRO1-8035 |
STRO4-8035 |
STRO5-8035 |
STNF2-8035 |
|
Membrane Sheet Type |
RO1 |
RO4 |
RO5 |
NF2 |
|
Membrane Material |
Polyamide |
|||
|
Effective Membrane Area |
25m2 (269ft2) |
|||
|
Construction * |
Spiral Wound Element with GRP Outerwrap,Brine Seal |
|||
|
Feed Flow Rate Range |
5.5-12m3/h |
|||
|
Permeate Flow Rate |
24m3/d |
9.5m3/d |
16m3/d |
22m3/d |
|
Nominal Rejection |
98.5% |
99.6% |
99.5% |
98.0% |
|
Minimum Rejection |
97.5% |
99.0% |
99.0% |
96.0% |
|
Feed Spacer |
Special open type |
|||
|
Element Dry Weight |
18kgs |
|||
|
Max. Element Pressure Drop |
0.7bar |
|||
|
Max. Operation Pressure |
90bar |
|||
|
Max. Operation Temperature |
40℃ |
|||
|
pH continuous |
3-11 |
|||
|
pH CIP |
2-12 |
|||
|
Chlorine Tolerance |
≤0.1ppm |
|||
Brine seal to be installed in flow direction on the low pressure side/element outlet side.
Performance specifications shown are nominal values. Individual module permeate flow rate may vary based on inlet water condition. RO1 test condition: 2,000mg/l NaCl solution at 15.5bar applied pressure, 15% recovery, 25℃, pH=8; RO4 test condition: 32,000mg/l NaCl solution at 55.2bar applied pressure, 15% recovery, 25℃, pH=8.
Please note flow rate for different water condition may vary.
STRO Membrane Element Dimensions
|
Model |
STRO-8035 |
|
Element Total Length ("A") |
890mm |
|
Element Diameter ("B") |
200mm |
|
Permeate Tube Outer Diameter ("C") |
60.2mm |
|
Element Total Length ("D") |
838mm |
STRO Membrane Module Dimensions
STRO Membrane Element
Features:
Spiral High Pressure, High Rejection, Open Spacer.
Applications:
Landfill Leachate & Other High TSS Water.
STRO Membrane Element Specification
|
Model |
STRO1-8042 |
STRO4-8042 |
STRO5-8042 |
STNF2-8042 |
|
Membrane Sheet Type |
RO1 |
RO4 |
RO5 |
NF2 |
|
Membrane Material |
Polyamide |
|||
|
Effective Membrane Area |
27m2 (290.52ft2) |
|||
|
Construction * |
Spiral Wound Element with GRP Outerwrap,Brine Seal |
|||
|
Applications |
High TSS water |
|||
|
Feed Flow Rate Range |
5.5-12m3/h |
|||
|
Permeate Flow Rate |
30m3/d |
13m3/d |
18m3/d |
25m3/d |
|
Nominal Rejection ** |
98.5% |
99.6% |
99.5% |
98.0% |
|
Minimum Rejection |
97.5% |
99.0% |
99.0% |
96.0% |
|
Feed Spacer |
Special open type |
|||
|
Element Dry Weight |
20kgs |
|||
|
Max. Element Pressure Drop |
0.7bar |
|||
|
Max. Operation Pressure |
75bar |
|||
|
Max. Operation Temperature |
40℃ |
|||
|
pH continuous |
3-11 |
|||
|
pH CIP |
2-12 |
|||
|
Chlorine Tolerance |
≤0.1ppm |
|||
Brine seal to be installed in flow direction on the low pressure side/element outlet side.
Performance specifications shown are nominal values. Individual module permeate flow rate may vary based on inlet water condition. RO1 test condition: 2,000mg/l NaCl solution at 15.5bar applied pressure, 15% recovery
25℃, pH=8; RO4 test condition: 32,000mg/l NaCl solution at 55.2bar applied pressure, 15% recovery, 25℃, pH=8. Please note flow rate for different water condition may vary.
STRO Membrane Element Dimensions
|
Model |
STRO-8042 |
|
Element Total Length ("A") |
1070mm |
|
Element Diameter ("B") |
200mm |
|
Permeate Tube Outer Diameter ("C") |
60.2mm |
|
Element Total Length ("D") |
1016mm |
STRO Membrane Module Dimensions
How STRO membrane works
Product Show
