Quick Details
-
Material:
-
Cold Roll Steel
-
Adapter:
-
SC/FC/LC
-
Capacity:
-
12/24/48/72/96
-
Waterproof Grade:
-
IP65
-
Color:
-
Light Gray
-
Application:
-
FTTX
Quick Details
-
Type:
-
Racks & Enclosure
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UNIFIBER or OEM
-
Material:
-
Cold Roll Steel
-
Adapter:
-
SC/FC/LC
-
Capacity:
-
12/24/48/72/96
-
Waterproof Grade:
-
IP65
-
Color:
-
Light Gray
-
Application:
-
FTTX
Product Description

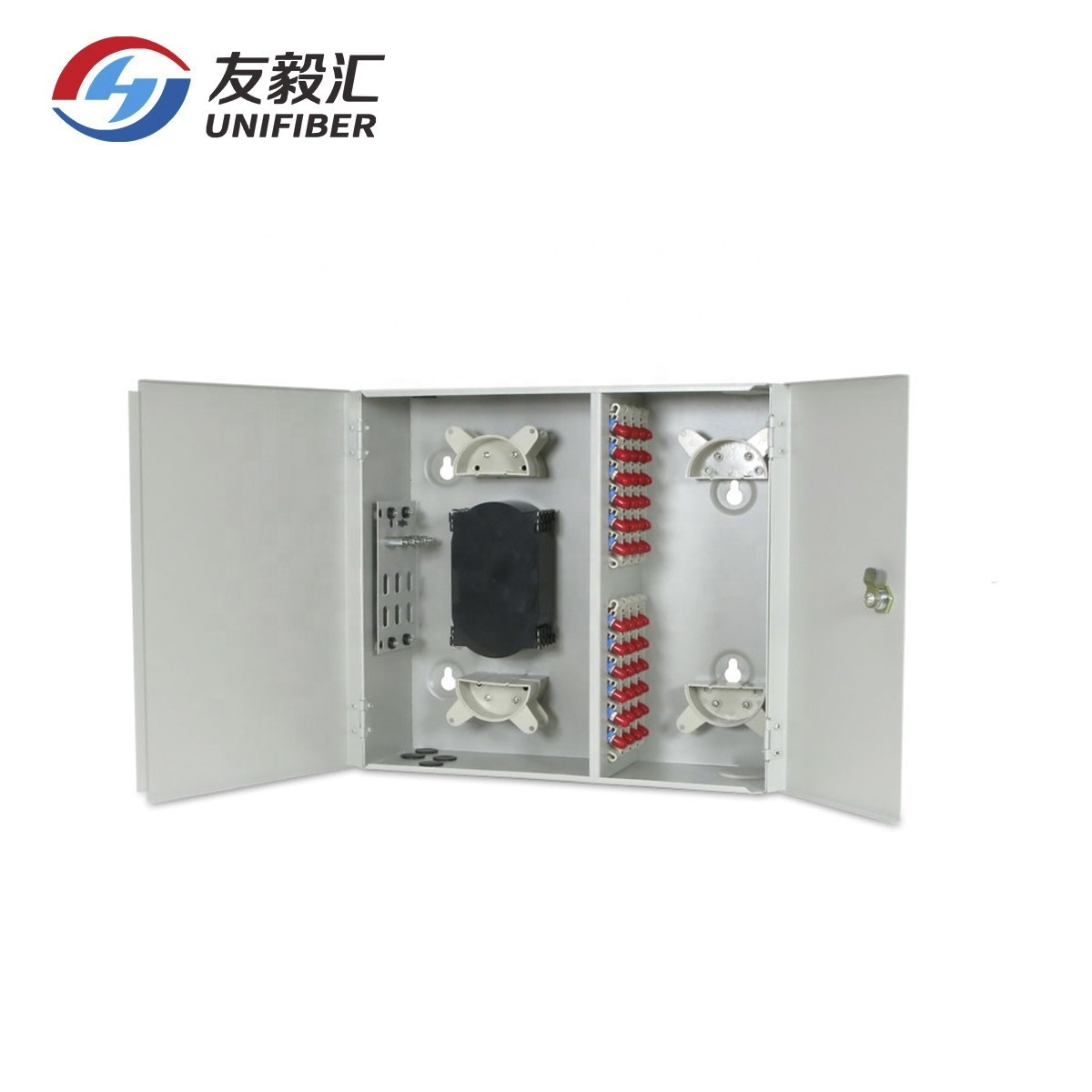

Double Door Optical FTTH Distribution Frame Wall Mount Fiber Optic Patch Panel can manage both single fiber, ribbon & bundle fiber cables for indoor using. There are FC, LC, SC, ST output interfaces optional, and large working space to integrate the pigtails, cables and adapters.
Features
With cold-roll steel box, splicing unit, distribution unit and panel
Various panel plate to fit different adapter interface
Adapters can be installed: FC, SC, ST, LC
Suitable for single fiber and ribbon & bundle fiber cables
Special design ensures the excess fiber cords and pigtails in good order
No interval and easy for management and operation
Application
FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local area Networks
Telecommunication Networks
CATV Networks
Data communications Networks
Local area Networks
Specification
|
Type
|
Size(mm) H*W*D
|
Max capacity
|
Outer carton dimension
|
Outer cartion weight
|
|
GP(05)A-24
|
455*405*80
|
24
|
500*450*490/4pcs
|
29.5
|
|
GP(05)A-48
|
455*405*120
|
48
|
500*450*490/3pcs
|
25.3
|
|
GP(05)A-72
|
455*405*150
|
72
|
500*450*390/2pcs
|
19.5
|
|
GP(05)B-48
|
455*405*120
|
48
|
500*450*490/3pcs
|
27
|
|
GP(05)B-72
|
455*405*150
|
72
|
500*450*390/2pcs
|
20.5
|
|
GP(05)A-24A
|
350*350*80
|
24
|
405*405*605/5pcs
|
20.8
|
|
GP(05)B-24B
|
455*405*80
|
24
|
500*450*490/4pcs
|
29
|
|
GP(05)C
|
350*300*80
|
12
|
405*355*605/5pcs
|
19.5
|
|
GP(05)D
|
350*300*80
|
24
|
405*355*605/5pcs
|
19.5
|
