Quick Details
-
Model Number:
-
Sebox
-
Capacity:
-
500-2000kg
-
Box Company Type:
-
Factories,Professional Manufacturer
-
Box Certifications:
-
ISO9001 ,ISO14001
-
Box Product warranty Lifetime:
-
2 Year More than 5 Years for normal use
-
Box Product type:
-
Assemble Corrosion Protection, Esd Protection
-
Box surface treatment:
-
Powder Coated, Cold Galvanized
-
Box color:
-
Blue,Orange,Grey,as Your Requirement
-
Box Applicable industries:
-
Industrial Warehouse Storage ,Logistics Transport,Feed,Supermarket
-
Box texture:
-
Steel Q235,stainless steel,aluminum,
-
Box The delivery port:
-
Dalian,as your reqirement
-
Box Product Name:
-
Folding Metal Steel Collapsible Stacking Container / Pallet Cage
Quick Details
-
Type:
-
Wire Container
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Chairborne-Box
-
Model Number:
-
Sebox
-
Capacity:
-
500-2000kg
-
Box Company Type:
-
Factories,Professional Manufacturer
-
Box Certifications:
-
ISO9001 ,ISO14001
-
Box Product warranty Lifetime:
-
2 Year More than 5 Years for normal use
-
Box Product type:
-
Assemble Corrosion Protection, Esd Protection
-
Box surface treatment:
-
Powder Coated, Cold Galvanized
-
Box color:
-
Blue,Orange,Grey,as Your Requirement
-
Box Applicable industries:
-
Industrial Warehouse Storage ,Logistics Transport,Feed,Supermarket
-
Box texture:
-
Steel Q235,stainless steel,aluminum,
-
Box The delivery port:
-
Dalian,as your reqirement
-
Box Product Name:
-
Folding Metal Steel Collapsible Stacking Container / Pallet Cage

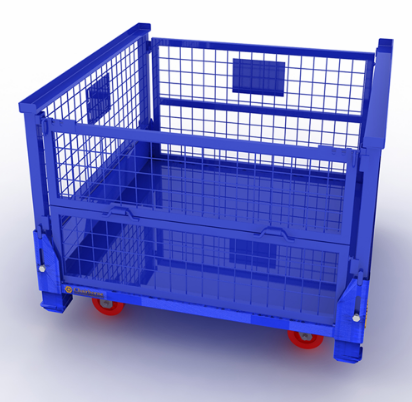

Mesh Wire Foldable Forklift Folding Metal Steel Collapsible Stacking Container / Pallet Cage
The steel box is mainly composed of a base plate, a side door, a front door and a baxk door. There is a waist-shaped hole on the pillar which realize sliding and folding of the side door as well as connecting the side door and the base. The back door is an integrated structure which hangs between the two side doors. The foldable front door, with a semi-embedded latch, may implement loading and unloading under stacking condition.
Product Dimensions
Steel Box Characteristic I
It's suitable for the tridmensional storage of scattered material.
Steel Box Characteristic II
Materials of the base plate can use grid or plate according to the size of good to prevent it from losting.
Steel Box Characteristic III
Materials of the four doors can use grid or plate according to the size of good to prevent it from losting.
Steel Box Characteristic IV
Skillful door design, convenience to load and unload under stacking condition.
Steel Box Characteristic V
Using folklift to stack the racks, increasing utility rate of space.
Steel Box Characteristic VI
The trundles can be added to the base to facilitate the transfer of materials between different processes.
Steel Box Characteristic VII
The retractor can be added to the base to achieve safety turnover of multiple steel grid boxes.
Steel Box Characteristic VIII
The steel boxes can be used together with storage racks.
Steel Box Characteristic IX
Stacking can come true at full load (with or without wheels). It's convenient for storage and transportation.
Steel Box Characteristic X
It can be folded and stacked under the empty state (with or without wheels). It's convenient for storage and transportation.
Tire storage rack Collapsible box Wire mesh roll cage Plastic flat trolley
The bearing capacity of the base is 1.5 tons, and the maximum stress is186Mpa, which is the stress concentration point. It is located at the weld joint between the support leg and the frame of the base. Most of the rest of the stress is no bigger than 52Mpa, and the allowable stress is less than 235Mpa.
The above figure shows that under the condition of three layers of foldable box, the stress of the bottom layer foldable box column is158Mpa.The yield stress value of the material is less than 235Mpa.
1. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Fushun City, Liaoning Province, China, close to Shenyang City. You can fly to Shenyang airport directly. You are warmly welcome to visit us whenever you are available!
2. Q: What is the raw material of your products?
A: As general, the raw material of steel code is Q235. Other steel is also available to clients' requirements.
3. Q: What is the term of payment?
A: As general, 30% T/T down payment and balance before shipping.
4. Q: What is delivery time?
A: It depends on the order quantity and product types. As general, within 25 working days, for ordinary order quantity..
5. Q: Which port will be used as loading port?
A: Dalian port
6. Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order.
7. Q: Are sample order available?
A: Yes, sure!
8. Q: Is Galvanized Finish available?
A: Yes.
9. Q: How can I get your quick quotation?
A: As different clients and projects have different needs of product dimensions and specification, as general, for quick quotation, we need to know following info:
10.Q:What are the main products that your company produce?
A:Steel Pallet, Stillage, Racking Pallet, Roll Container, Selective Rack, Cantilever Rack, Mould Rack and so on.
Required Pallet Racking Dimension: Height*Depth*Length?
Number of Levels?
Loading Capacity of each level?
Racking Quantity?
If you are not very sure of above info, please just let us know your storage needs. Accordingly, we'll be happy to provide with our professional proposed racking solutions for your kind reference.
