Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Cnlinko
-
Model Number:
-
LP-20-C04PE-01-001,LP-20-J04PP-01-001
-
certification:
-
UL,CE,ROHS,CCC,ISO9001
-
Protection level:
-
IP65/IP67
-
Pin:
-
4pin 4-pin battery connector
-
Current rating(A):
-
20A
-
Shell & Insulated Parts:
-
High Performance Engineer Plastic
-
Hardware Matel:
-
Zinc Alloy (pearl hard chromium)
-
Connecting mode:
-
plug/unplug
-
Operating voltage:
-
500V
Quick Details
-
Type:
-
Power
-
Application:
-
Industrial
-
Gender:
-
male and female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Cnlinko
-
Model Number:
-
LP-20-C04PE-01-001,LP-20-J04PP-01-001
-
certification:
-
UL,CE,ROHS,CCC,ISO9001
-
Protection level:
-
IP65/IP67
-
Pin:
-
4pin 4-pin battery connector
-
Current rating(A):
-
20A
-
Shell & Insulated Parts:
-
High Performance Engineer Plastic
-
Hardware Matel:
-
Zinc Alloy (pearl hard chromium)
-
Connecting mode:
-
plug/unplug
-
Operating voltage:
-
500V

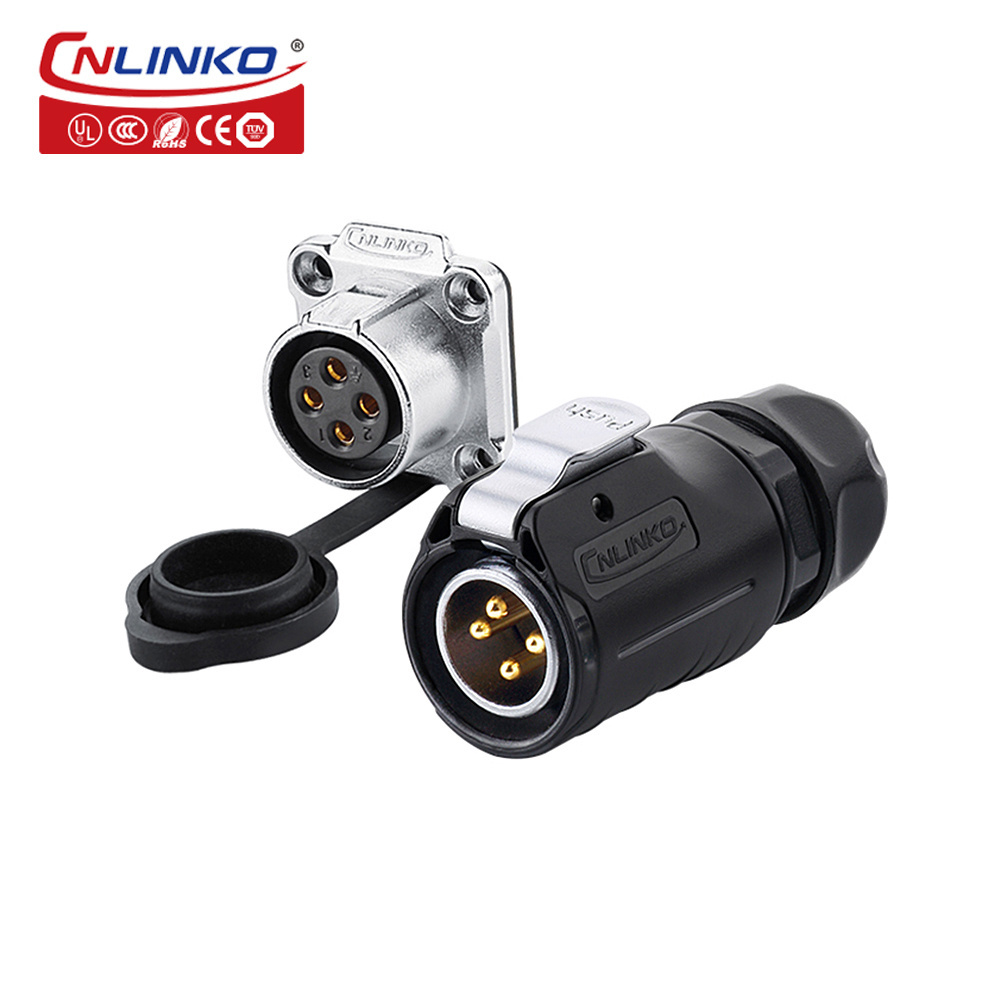

CNLINKO M20 Electric bike battery connector Bike Quick Disconnect IP67 waterproof 4 Pin wire Connector
Features:
With multi-core design to fit with different industrial needs
Alloy metal socket is with fully electromagnetic and radio frequency interference protection
With gold-palted contact,stronger corrosion resistance and conductivity
PBT materials shell,stable electrical performance,pressure-resisting,high temperature resistance,anti-explosion,anti-corrosive
2/3/4/5/7pin for power connector,9/12 for signal connector,power and signal can be compatible match
IP67/IP68 when mated
Current rating:5A/12A/20A rms
Please indicate if you need the protection level more high
| Specifications | |
| Connecting mode | Latching Lock connect |
| Protection level | IP67 |
| Cable specification | 2.5mm 2 ~ 4mm 2 /14~12AWG |
| Diameter range | Φ8mm ~Φ12mm |
| Contact diameter×Qty | Φ2.7×4 |
| Current rating(A) | 20A |
| Operating voltage(AC.V.rms) | 500V |
| Withstand voltage(AC.V)1min | 2500V |
| Contact resistance | <1mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Solder |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |
| socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
- CNLINKO packing or Customized Packing (MOQ1000pcs each model
- Packing detail: 2pcs/PE bag, 10pcs/small box, 240pcs/CTN
- Lead Time: 3-5 working days after received payment
- Shipment: by express, by air, by sea
- Payment term:100% T/T in advance
- Payment method: T/T, Western Union, Paypal
- Our enterprise will strictly follow the connector specificatios and deliver the products in due time as required by the contract
- CNLINKO will provide waterproof connector technological maintenance and guarantee within one year if any quality problem happens to our product
- Professional personnel will provide product specifications,product choice suggestions and installation methods
- Professional personnel will provide operation training for free
- Zero-distance service and phone number for around-the-clock service
Q1:What are connectors?
A1:Connectors are connected to the electrical and mechanical components of electrical circuits.They are widely used in various electrical circuits, plays the role of connecting or disconnecting the circuit.
Q2:What classification do connectors have?
A2: In accordance with the frequency points, a high-frequency connector and the low frequency connectors; in accordance with the shape divided circular connectors, rectangular connectors; in accordance with the zoning, there are connectors for printed boards, cabinets, socket connector, connectors for audio equipment, power connector, connectors, etc. for special purposes.
Q3:What is rated voltage?
A3:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
Q4:What is rated Current?
A4: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.
Q5: Why choose cnlinko ?
A5: Our product have passed UL,CUL,CCC,CE and ROHS certification. Use PBT material that import from abroad with stable,compression, anti-explosion and anti-deformation; Use Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
