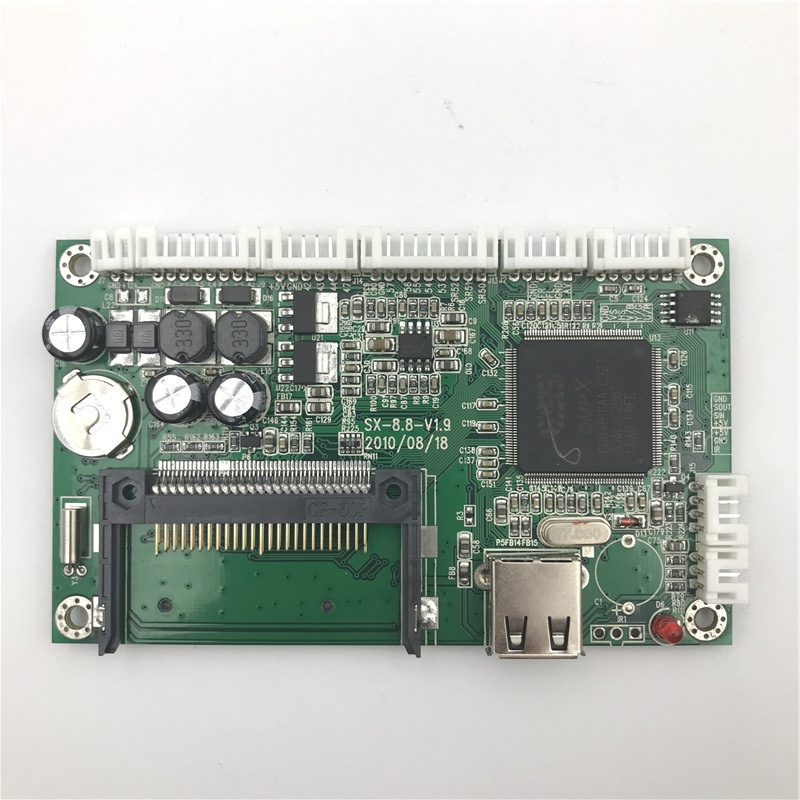

decoding board SX-8.8 LCD advertising board support various electronic products such as the Vehicle Display LCD TV

Product Description

decoding board SX-8.8 LCD advertising board support various electronic products such as the Vehicle Display LCD TV

1. Product Overview

This board is decoding board , superior performance, Can easily embedded various electronic products, such as the Vehicle Display, LCD TV Set , advertising machine etc; It not only has a variety of digital multimedia mode playback function, but also have rich external functional interfaces, will make your product can provide comprehensive advantage , can meet the volatile market demand.

2.Product Features Description

1.Use Powerful ES6461 decoder chip ,With Stable performance and Powerful features .
2.Wide DC input voltage: 6 ~ 15V
3.Operating modes: normal operation mode(<2.4W), standby mode(<1.2W)
4.More than four storage media support functions: Support CF/USB2.0/Mini-USB/SD/MMC card , support hot swap
5.Compatible various media formats: including MP3, JPG, MPEG, AVI and other formats
6.Video format: PAL (25  frames), NTSC (30 frames), automatic
7.Video Output: Support AV, VGA (field frequency of 60Hz, line frequency 31.25kHz) or YPrPb component output, and optional output of multiple video at the same time, can change access TV and LCD display, support for 480i, 480p, 720p; video 75 ohm output impedance
8.Audio output: two-channel stereo audio output , SNR 85dB
9.Play mode: Repeat all , Repeat one, Play in order,Playback mode: Video, Photo, Music, Photo+Music ,Files

10.OSD Language: Support Chinese, English .Other languages can be customized
11.Remote Control:Support remote control for some often use control
12.Timer switch: You can setting the time for turn on and turn off the system
13. Rolling subtitles : Words can be rolling show at the bottom of the screen . Need create a TXT file and put it into the memory card
14.Memory Play: In case of suddenly loses power ,the system will record the breakpoint .When power on ,It will Continue to playback from the breakpoint.

15.Play record :System will record the playing time for corresponding files .(Request create a TXT file and put it into memory card .)

16.Clock display: a clock IC, time and date information can be displayed

17.Support Logo shows feature: You can customized your logo and show it on the top left of the screen .

18.Support OTG copy feature: USB file can be automatically COPY to memory card, covered with the file with the same name and copy the file with different name to memory card
19.Support keypad extension feature (Optional). Each button can be customized by some features you want it be .
20.Support touch  feature (Optional) . Have to use our touch panel controller
21.Support bar code Scanner feature(Optional). Scanner should with RS232 interface
22.Support PIR detection feature(Optional). PIR sensor should with High or low level

23.Support OSD flip feature . You can flip the OSD Menu through OSD setting
24.PCB size: 102MM(L) X 61MM(W) X 12MM(H)

3.Application Field

1)Bank advertising machine

2)Supermarket advertising machine

3)Elevator advertising machine

4)Street advertising machine

•
