Quick Details
-
Voltage:
-
380v 50hz
-
Power:
-
2.2kw
-
Weight:
-
290 KG
-
Dimension(L*W*H):
-
2700*820*2000mm
-
Year:
-
2023
-
Product name:
-
young coconut half cutter machine
-
Application:
-
Green young coconuts
-
Capacity:
-
800-1000pcs/h
-
Function:
-
Cutting
-
Material:
-
304 Stainless Steel
-
MOQ:
-
1 Set
-
Package:
-
Standard Wooden Case
-
Feature:
-
High Efficiency Low Cost
-
Processing Types:
-
Fruits Process Equpiment
-
Advantage:
-
Easy Operation High Efficiency
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Antler
-
Type:
-
CUTTER
-
Voltage:
-
380v 50hz
-
Power:
-
2.2kw
-
Weight:
-
290 KG
-
Dimension(L*W*H):
-
2700*820*2000mm
-
Year:
-
2023
-
Product name:
-
young coconut half cutter machine
-
Application:
-
Green young coconuts
-
Capacity:
-
800-1000pcs/h
-
Function:
-
Cutting
-
Material:
-
304 Stainless Steel
-
MOQ:
-
1 Set
-
Package:
-
Standard Wooden Case
-
Feature:
-
High Efficiency Low Cost
-
Processing Types:
-
Fruits Process Equpiment
-
Advantage:
-
Easy Operation High Efficiency
Product Description

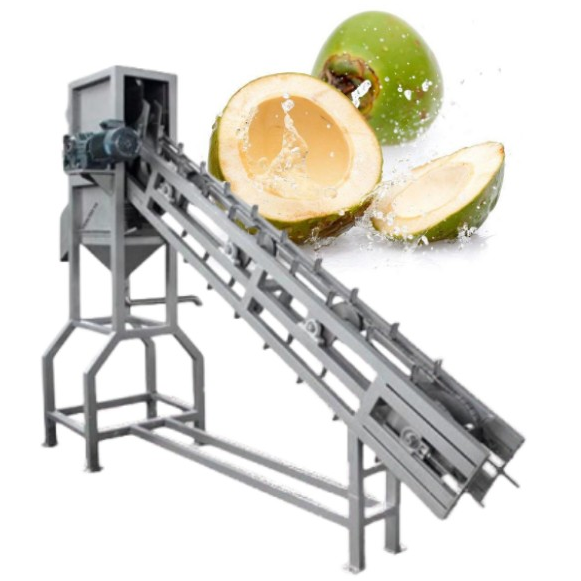

Young coconut half cutter
The material contact part is made of SUS304 stainless steel and 3cr13 stainless steel, and the frame is made of 304 stainless
steel. This machine is suitable for cutting half of young coconut.
The machine is mainly composed of frame, conveying chain, juice hopper, slag hopper, lifting frame, transmission and other parts.
When working, the coconut is placed horizontally on the baffle of the conveyor chain manually, driven by the drive shaft to move
up, while the shifting frame then operates, under the interaction of various transmission parts, the conveyor chain continues to
do rotary movement, and the coconut is slowly lifted to the shifting frame, the top of the machine is provided with a fixed blade,
so that the coconut is cut in half under the interaction of the blade and the shifting frame. The juice after half cutting flows
into the juice hopper, and a row of bar is installed above the bar to prevent the coconut shell from falling into the juice
hopper. When the bar is at a certain Angle, the coconut shell is introduced from the bar to the slag hopper.
Brief Introduction of mature coconut processing line
De-husking
Grinding
Extracting
Specification
|
Item
|
Data
|
|
Warranty of core components
|
2 years
|
|
Brand Name
|
Antler
|
|
Type
|
CUTTER
|
|
Voltage
|
380v 50hz
|
|
Power
|
2.2kw
|
|
Weight
|
290KG
|
|
Dimension(L*W*H)
|
2700*820*2000mm
|
|
Product name
|
young coconut half cutter machine
|
|
Application
|
Green young coconuts
|
|
Capacity
|
800-1000pcs/h
|
|
Function
|
Cutting
|
|
Material
|
304 Stainless Steel
|
|
MOQ
|
1 Set
|
|
Package
|
Standard Wooden Case
|
|
Feature
|
High Efficiency Low Cost
|
|
Processing Types
|
Fruits Process Equpiment
|
|
Advantage
|
Easy Operation High Efficiency
|
