Quick Details
-
Brand Name:
-
PitBull,HN
-
Model Number:
-
SBW
-
Technology:
-
Toroidal Transformer,
-
Output Voltage:
-
Single phase: 220Vac Three phase:380Vac
-
Output Accuracy:
-
(1%~5%)
-
Protection:
-
OverVoltage Overload High Temperature, Short Circuit
-
Operating Temperature:
-
-20~50°C
-
Type:
-
Servo Motor Control
-
Efficiency:
-
97%
-
Product Name:
-
SBW50kVA-100kVA
-
input voltage:
-
175Vac-265\^c (phase voltage) 300Vac-456Vac(line voltage)
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PitBull,HN
-
Model Number:
-
SBW
-
Technology:
-
Toroidal Transformer,
-
Output Voltage:
-
Single phase: 220Vac Three phase:380Vac
-
Output Accuracy:
-
(1%~5%)
-
Protection:
-
OverVoltage Overload High Temperature, Short Circuit
-
Operating Temperature:
-
-20~50°C
-
Type:
-
Servo Motor Control
-
Efficiency:
-
97%
-
Product Name:
-
SBW50kVA-100kVA
-
input voltage:
-
175Vac-265\^c (phase voltage) 300Vac-456Vac(line voltage)
Products Description
|
MODEL
|
SBW(50kVA-200kVA)
|
|
|
|
|||
|
INPUT VOLTAGE
|
175Vac-265\^c (phase voltage) 300Vac-456Vac(line voltage)
|
|
|
|
|||
|
OUTPUT VOITAGE
|
Single phase: 220Vac Three phase:380Vac
|
|
|
|
|||
|
DELAY TIME
|
Short Delay:3-5sec
|
|
|
|
|||
|
PROTECTION
|
Over Voltage(246V±4V),Overioad,High Temperature,Short Circuit
|
|
|
|
|||
|
POWER
|
50KVA/60KVA/100/120KVA/150KVA/200KVA/250KVA/300KVA/320KVA/400KVA/500KVA/60K0VA/800KVA/1000KVA/1200KVA/1600KVA/2000KVA
|
5000VA
|
8000VA
|
10000VA
|
|||
|
FEATURE
|

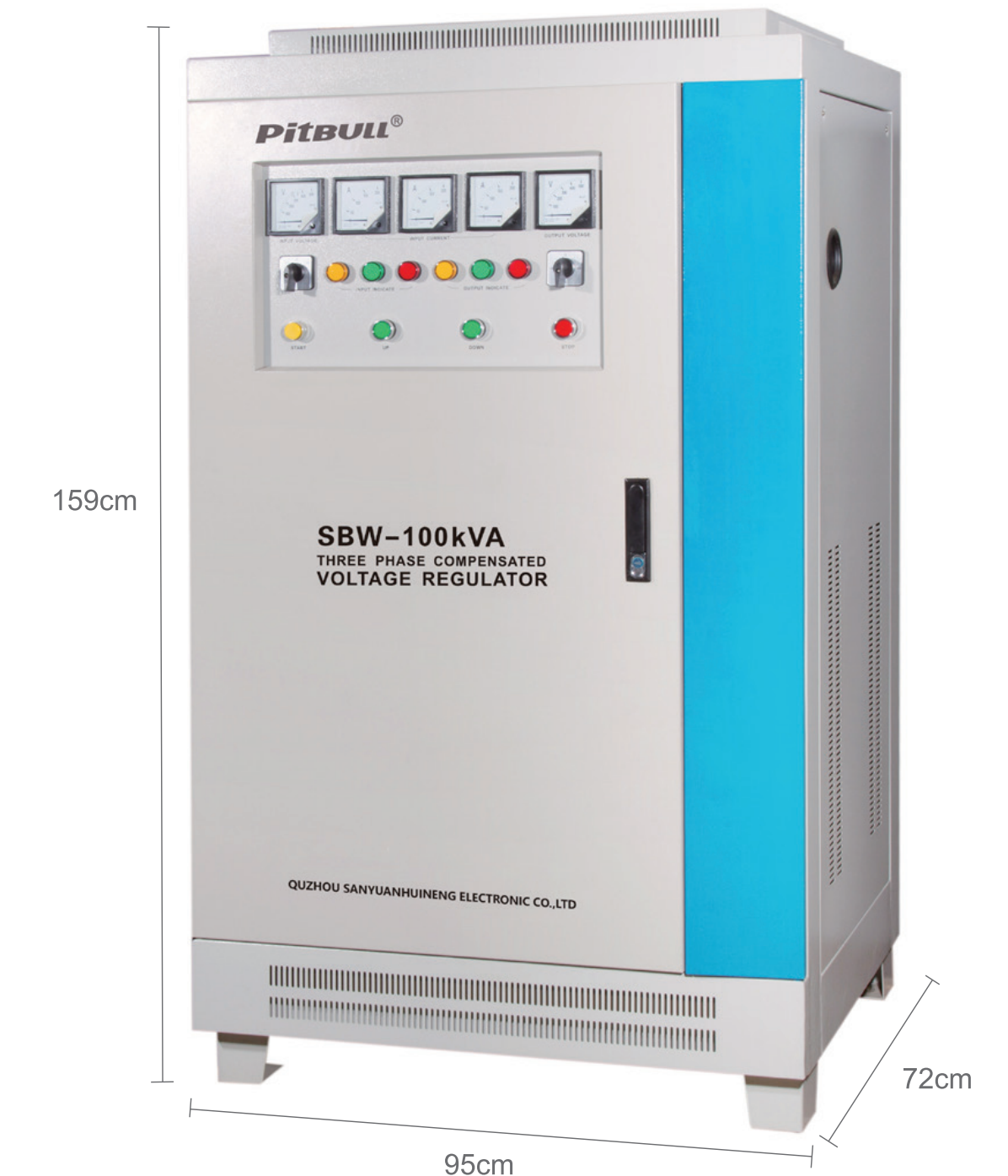

The product of this model is cabinet type design,pointer display/digital display selection.lt is characterized high-precision output.Suitable for a wide range of load.can withstand instantaneous overload.Long-term continuous work can be carried out, manual/ automatic switching and the automatic protection for over voltage, phase loss, phase sequence and mechanical failure are provided
|
|
|
|
|||
|
APPLICATION
|
It is widely used in various industries, small office equipment,refrigerator, electric fan, computer, pump, air conditioner and other household appliances.
|
|
|
|
|||
|
Power Factor
|
≥0.9
|
≥0.9
|
≥0.9
|
≥0.9
|
|||
|
Control
|
High precision servo motor
|
|
|
|
|||
|
Digital display
|
show input and output voltage、Over\Low Voltage、Overload、delay、temperature
|
show input and output voltage、Over\Low Voltage、Overload、delay、temperature
|
show input and output voltage、Over\Low Voltage、Overload、delay、temperature
|
show input and output voltage、Over\Low Voltage、Overload、delay、temperature
|
|||
|
Temperature protection
|
yes
|
yes
|
yes
|
yes
|
|||
|
Short circuit&over load
|
air-switch/（fuse：500-2000va）
|
air-switch/（fuse：500-2000va）
|
air-switch/（fuse：500-2000va）
|
air-switch/（fuse：500-2000va）
|
|||
|
Cooling type
|
FAN/Vents
|
FAN/Vents
|
FAN/Vents
|
FAN/Vents
|
|||
|
Efficiency
|
AC 97%
|
AC 97%
|
AC 97%
|
AC 97%
|
|||
|
Temperature
|
20°~55℃
|
20°~55℃
|
20°~55℃
|
20°~55℃
|
|||
|
Humidity
|
<90
|
<90
|
<90
|
<90
|
|||
