Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Leaka
-
Model Number:
-
YM20-4P
-
Product name:
-
YM20 power connector
-
Material:
-
high performance engineering resins
-
Pin:
-
2pin,3pin,4pin,5pin,7pin,9pin,12pin
-
Mating cycle:
-
500
-
Temperature Range:
-
-40℃~+80℃
-
MOQ:
-
1 pcs for sale
Quick Details
-
Type:
-
XLR
-
Application:
-
Audio & Video
-
Gender:
-
Male and female
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Leaka
-
Model Number:
-
YM20-4P
-
Product name:
-
YM20 power connector
-
Material:
-
high performance engineering resins
-
Pin:
-
2pin,3pin,4pin,5pin,7pin,9pin,12pin
-
Mating cycle:
-
500
-
Temperature Range:
-
-40℃~+80℃
-
MOQ:
-
1 pcs for sale
|

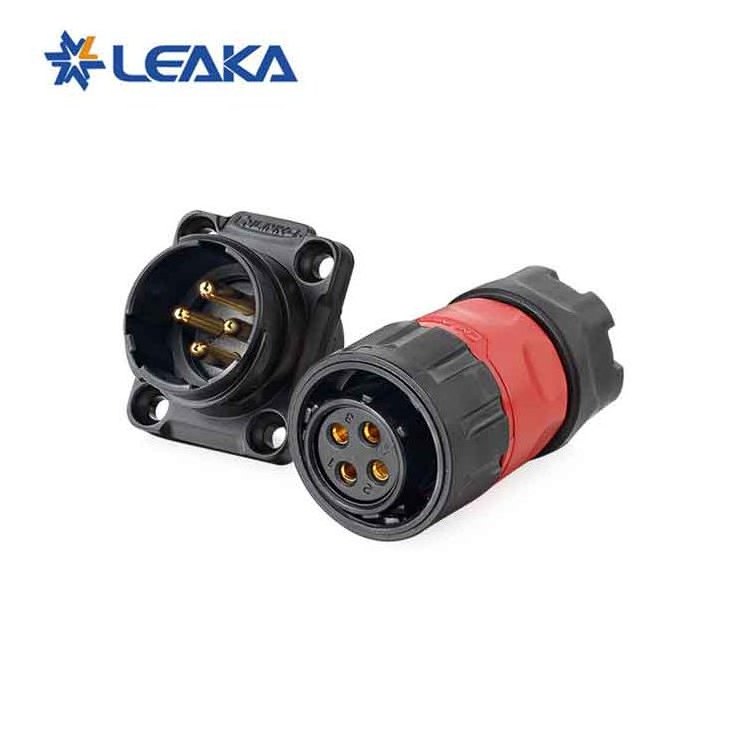

Product name
|
ip67 waterproof dc power connector electrical connector pbt gf20
|
|
Connecting mode
|
Latching Lock connect
|
|
Protection level
|
IP65/IP67
|
|
Cable specification
|
2.5mm2 ~4mm2 /14~12AWG
|
|
Contact diameter*quantity
|
Φ2.7*4
|
|
Wire diameter range
|
Φ8mm ~Φ12mm
|
|
Current rating(A)
|
20A
|
|
Operating voltage
|
500V
|
|
Contact resistance
|
<5mΩ
|
|
Insulation resistance
|
>500MΩ
|
|
Durability
|
≥500 mating&unmating cycles
|
|
Temperature rating
|
-40°C~80°C
|
|
Method of connecting cable
|
1/4 Easy locking type
|
|
Material of insulated parts
|
High-performance engineering plastics
|
|
Hardware metal
|
Zinc alloy(pearl hard chromium)
|
|
Contact pin
|
Copper alloy(gold-plated 4U)
|
|
Sealing
|
Silica gel
|
YM-20 connectors , using PBT performance injection molding material, ensure the stability of the product multi-core design, while meeting the power supply and signal of a number of equipment needs.
Application
● Stage equipment - The smart grid, led lighting, led display.
● Solar energy equipment - Ship equipment
● Electric power equipment - Vehicle equipment, new energy automobile
● Communications equipment - Heavy machinery
Diffferent cores have different price,pls feel free to consult me for any questions!!
