This bead mill is our company's superior product. After more than 10 years of continuous improvement and optimization,
the machine performance has been greatly improved. Horizontal sand mill is currently the best choice to replace conventional
vertical sand mill and triple-head mill. The bead mill has low operating noise, closed work, low volatility, and grinding quality
far better than ordinary vertical sand mills. It is currently the most widely used grinding equipment in the paint and other
industries.
Dyno Mill horizontal ink bead mill homogenizer paint grinding machine laboratory sand mill
- Product Details
- {{item.text}}
Quick Details
-
Range of Spindle Speed(r.p.m):
-
0 - 1000 r.p.m
-
Place of Origin:
-
China
-
Weight (KG):
-
500 KG
-
After-sales Service Provided:
-
Overseas third-party support available
-
Product name:
-
Good Quality Horizontal Sand Grinding Mill for Sale
-
Product type:
-
pigment,cosmetic,printing ink,paint
-
Weight:
-
different models different wight
-
Feature:
-
High Speed
-
Grinding media:
-
95% Zirconia Beads
Quick Details
-
Output (kg/h):
-
100 - 200 kg/h
-
Feeding Size (mm):
-
0.1 - 0.2 mm
-
Output Size (mesh):
-
100 - 200 mesh
-
Range of Spindle Speed(r.p.m):
-
0 - 1000 r.p.m
-
Place of Origin:
-
China
-
Weight (KG):
-
500 KG
-
After-sales Service Provided:
-
Overseas third-party support available
-
Product name:
-
Good Quality Horizontal Sand Grinding Mill for Sale
-
Product type:
-
pigment,cosmetic,printing ink,paint
-
Weight:
-
different models different wight
-
Feature:
-
High Speed
-
Grinding media:
-
95% Zirconia Beads
Product Description
Horizontal lab bead mill price high quality grinder machine for paint production hot sale

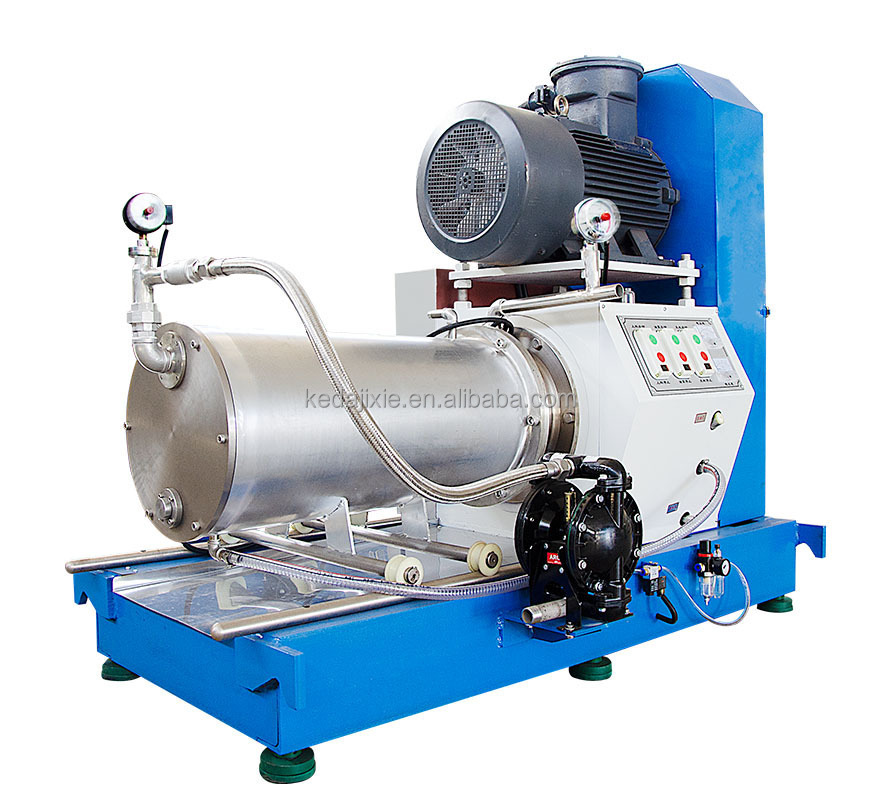

SW series of horizontal closed conical bead mill is the powder material for solid - liquid dispersion grinding of the machinery. Widely used in coatings, dyes, inks, Light-sensitive material,medicine,food and other industries.
Horizontal sand mill design novel, compact structure,double end-face mechanical seal, the material in the closed state of production, effectively prevent the material dry, skinning and solvent evaporation, and the machine does not have a special installation basis, you can change the installation location at any time as needed.
The sander also has a dispersion and mixing effect while grinding the material.
Product Paramenters
|
Model
|
|
SW-5
|
SW-15
|
SW-20
|
SW-30
|
SW-50
|
SW-100
|
||||||
|
Dimension mm
|
L
|
600
|
1530
|
1690
|
1690
|
1900
|
2000
|
||||||
|
|
W
|
500
|
800
|
800
|
850
|
900
|
900
|
||||||
|
|
H
|
480
|
1300
|
1300
|
1300
|
1400
|
1600
|
||||||
|
Ex-proof Motor/ kw
|
|
3
|
15
|
18.5
|
22
|
30
|
55
|
||||||
|
Speed / Rpm
|
|
1200
|
1055
|
870
|
870
|
800
|
680
|
||||||
|
Q'ty of dispersion plate/pcs
|
|
4
|
5
|
6
|
8
|
9
|
9
|
||||||
|
Viscosity / Pa.s
|
|
≤10
|
|
|
|
|
|
||||||
|
Weight / kg
|
|
260
|
600
|
700
|
800
|
960
|
2300
|
||||||
|
Drum Material
|
|
Stainless steel with wear-resistant treatment
|
|
|
|
|
|
||||||
|
Dispersion plate material
|
|
Dearing steels, GCr15
|
|
|
|
|
|
||||||
|
Seal
|
|
Double end-face mechanical seal
|
|
|
|
|
|
||||||
|
Grinding Fineness
|
|
Reach below 10 microns after four times grinding
|
|
|
|
|
|
||||||
|
Capacity / kg/8h
|
|
300
|
1000-1500
|
2000
|
2000-2500
|
2500-3000
|
5000-6000
|
||||||
Bead Mill Main Features
1, Fine grinding precision, easy to start, low energy consumption, less material accumulation;
2, Continuous mass production, according to fineness requirements to adjust the speed of incoming and outgoing material;
3, High wear - resisting cylinder body, alloy steel, zirconia, tungsten carbide rotor to choose from
4, Double end mechanical seal, zero leakage, no pollution, double cooling system, grinding fast heat dissipation;
5, The new dynamic separator and screen ring, output faster, not easy to plug, long service life.
6.Adjustable dynamic separation screen system, the gap can be adjusted to 0.3mm, and the grinding medium can be selected from 0.5 to 1.0mm.
Dyno Mill horizontal ink bead mill homogenizer paint grinding machine laboratory sand mill. Dyno Mill horizontal ink bead mill homogenizer paint grinding machine laboratory sand mill.Dyno Mill horizontal ink bead mill homogenizer paint grinding
Scope of application of bead mill
-- -
Food:
cocoa, chocolate, nut butters, sauces, mayonnaise, dressings, etc.
-- -
Making paint:
ink, pigment, paste, filler, dye, carbon black.
Dyno Mill horizontal ink bead mill homogenizer paint grinding
-- -
Chemicals:
pharmaceuticals, cosmetics, plant protectants, detergents.
-- -
Minerals:
kaolin (China clay), ceramic mud, fireclay.
Dyno Mill horizontal ink bead mill homogenizer paint grinding machine laboratory sand mill.
Dyno Mill horizontal ink bead mill homogenizer paint grinding machine laboratory sand mill
Horizontal sand mill for printing Ink grinding bead mill machines. Dyno Mill horizontal ink bead mill homogenizer paint grinding machine laboratory sand mill. Dyno Mill horizontal ink bead mill homogenizer paint grinding machine laboratory sand mill
