MS33SN2 MTK Multi-constellation Navigation and Positioning small size gps tracker module for Positioning Solution

MS33SN2 MTK Multi-constellation Navigation and Positioning small size gps tracker module for Positioning Solution

FOB Reference Price: Get Latest Price

≥1 Pieces

US $4.4

≥1000 Pieces

US $4.3

≥10000 Pieces

US $4.15

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shenzhen, China

Brand Name:: MinewSemi

Supplier Type:: Orginal Manufactor

Model:: MS33SN2

Satellite System:: GPS, BDS, GLONASS, GALILEO, QZSS

Ranging Accuracy:: ≤2.5m

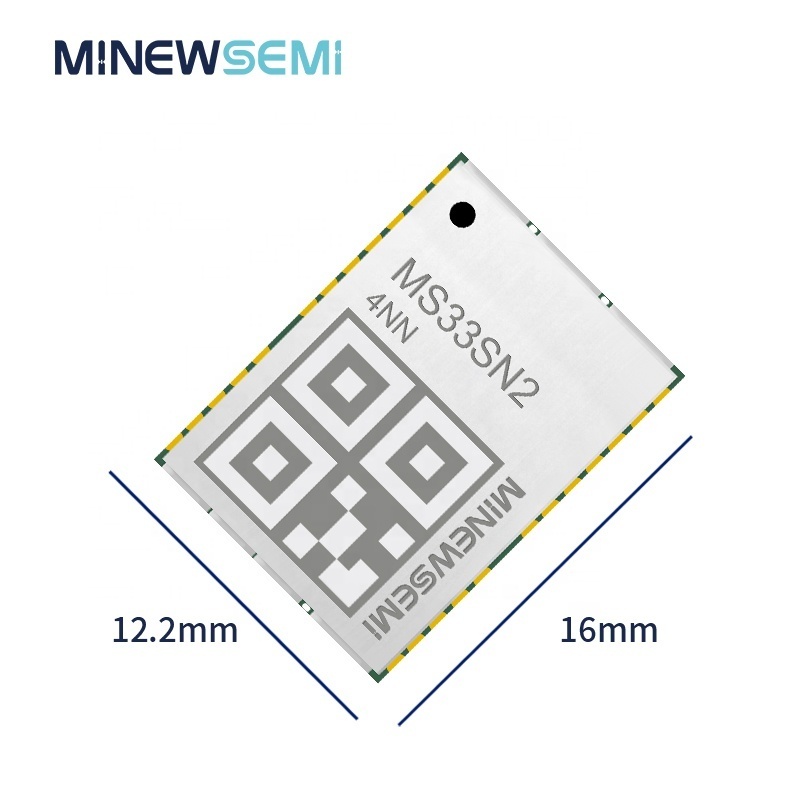

Dimension(mm):: 16.0*12.2*2.4

Supply Voltage:: 3.3V

Operating Current:: 30mA Avg

Pin Package:: LCC-18pin

Output Mode:: UART(TTL)

Channel:: Acq: 127, Track: 47

Algorithm:: PVT

Quick Details

Chipset:: MediaTek

Application:: smart argiculture, tracker

Model Number:: MS33SN2

Place of Origin:: Shenzhen, China

Brand Name:: MinewSemi

Supplier Type:: Orginal Manufactor

Model:: MS33SN2

Satellite System:: GPS, BDS, GLONASS, GALILEO, QZSS

Ranging Accuracy:: ≤2.5m

Dimension(mm):: 16.0*12.2*2.4

Supply Voltage:: 3.3V

Operating Current:: 30mA Avg

Pin Package:: LCC-18pin

Output Mode:: UART(TTL)

Channel:: Acq: 127, Track: 47

Algorithm:: PVT

Products Description

MinewSemi--MS33SN2

1: S upporting satellite system: GPS, BDS, GLONASS, GALILEO,QZSS

2: S upports AGPS TCP acceleration positioning solutions

3: Power system has full working mode and battery backup mode

The MS33SN2 supports concurrent GNSS satellite constellations, which can receive and track GPS (including SBAS and QZSS) signals, BDS signals, and GLONASS signals individually or simultaneously.

The receiving frequencies are: 1575.42 MHz (GPS), 1561.098±2.046MHz (BDS) and 1602.5625MHZ±4MHz (GLONASS).

Satellite System	GPS, BDS, GLONASS, GALILEO,QZSS
Sensitivity	Tracking: -165dBm; Recapturing -160dBm; Cold Start: -148dBm
Cold Start	Avg 24s
Hot Start	Avg 1s
Baud Rate	115200bps (Factory Default)
Power Consumption(Tracking)	18mA @3.3V Typical
Refresh Frequency	1-10 Hz ( Software Adjusted)
Protocol	Default support for NMEA0183 version 4.1

MS33SN1 supports concurrent GNSS satellite constellations, which can receive and track GPS (including SBAS and QZSS) signals, BDS signals, and GLONASS signals individually or simultaneously. The receiving frequencies are: 1575.42 MHz (GPS), 1561.098±2.046MHz (BDS) and 1602.5625MHZ±4MHz (GLONASS).
