Quick Details
-
Brand Name:
-
XURUI
-
Model Number:
-
XZ7-141 (D4MC2020)
-
Max. Current:
-
10A
-
Operating Temperature:
-
-10-80C
-
Protection Level:
-
IP65
-
Electrical Life:
-
100,000times above
-
Mechancal Life:
-
1,000,000times above
-
Rating Load:
-
10A 250VAC
-
Outer shell Material:
-
PA66
-
Lever material:
-
Stainless Steel
-
Lever type:
-
short roller lever type
-
Lever Material:
-
stainless steel lever
-
Feature:
-
spdt side mounting form
-
Type:
-
elevator limit switch
-
Certification:
-
TUV CE, CCC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XURUI
-
Model Number:
-
XZ7-141 (D4MC2020)
-
Max. Current:
-
10A
-
Operating Temperature:
-
-10-80C
-
Protection Level:
-
IP65
-
Electrical Life:
-
100,000times above
-
Mechancal Life:
-
1,000,000times above
-
Rating Load:
-
10A 250VAC
-
Outer shell Material:
-
PA66
-
Lever material:
-
Stainless Steel
-
Lever type:
-
short roller lever type
-
Lever Material:
-
stainless steel lever
-
Feature:
-
spdt side mounting form
-
Type:
-
elevator limit switch
-
Certification:
-
TUV CE, CCC

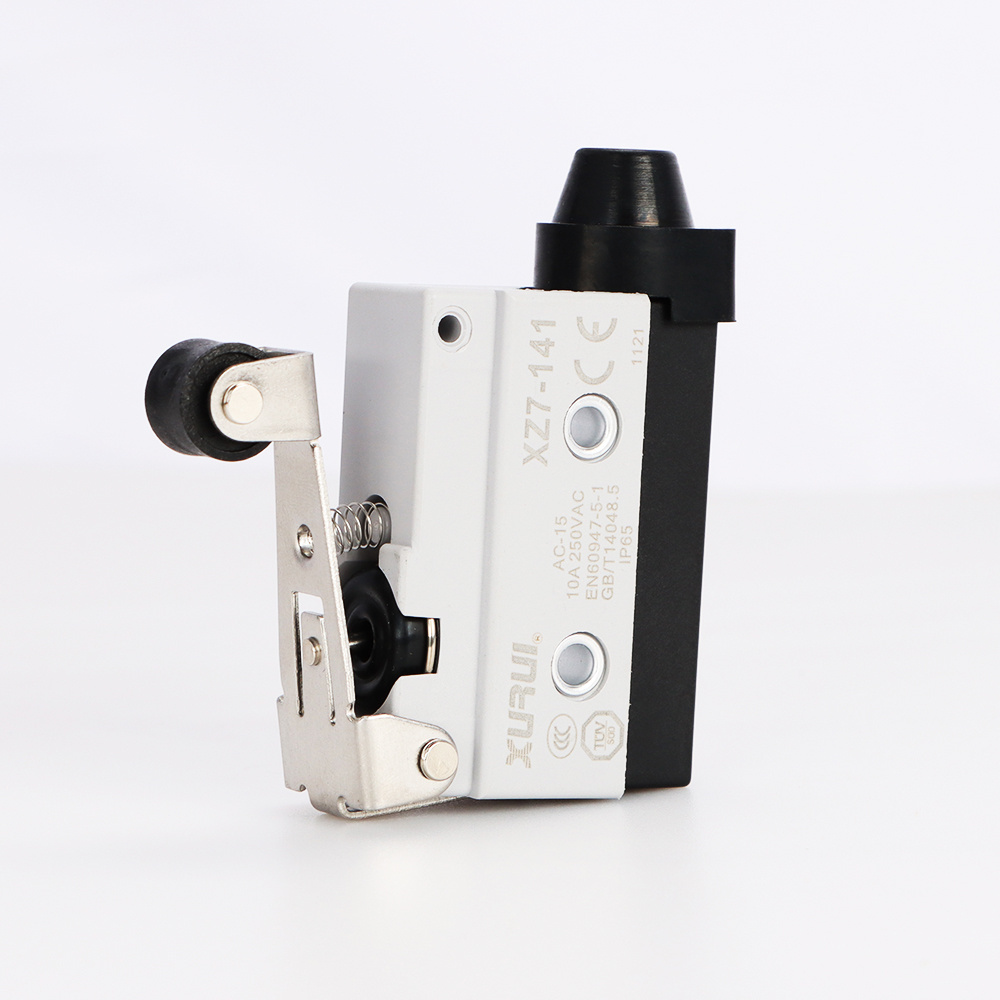

XURUI XZ7141 12V roller lever type elevator limit switch
Adopt outer shell with intensive plastic and sealed construction, better mechanical stength and waterproof, oil-proof.
Side fixed form and swift contact.
Variety of levers.
Widely used in Mechanical equipment,automatic machine, insturment,and electro motion tool,etc.
|
Rating load
|
10A/250VAC
|
|
Operating speed
|
0.1mm-50cm/s
|
|
Insulation resistance
|
100MΩAbove DC500V
|
|
Contact resistance
|
25mΩ initial value
|
|
Protection degree
|
IP65
|
|
Operating temperature
|
10~+80°C
|
|
Operating humidity
|
<85%
|
