Quick Details
-
Certificate:
-
CE, ROHS
-
Warranty:
-
2 Years, 2 Years
-
Work Time (h):
-
Depends on system
-
Product name:
-
epever pwm solar charge controller
-
Battery type:
-
Sealed(Default) / Gel / Flooded
-
Max. PV open circuit voltage:
-
50V
-
Grouding:
-
Common Positive
-
System voltage:
-
12/24Vdc
-
Charge mode:
-
PWM Mode
-
Enclosure:
-
IP30 Solar Charge Controller
-
Relative humidity:
-
≤95%,(N.C.)
-
Self-consumption:
-
12V≤5mA; 24V≤7mA
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
EPEVER
-
Model Number:
-
LS2024B
-
Certificate:
-
CE, ROHS
-
Warranty:
-
2 Years, 2 Years
-
Work Time (h):
-
Depends on system
-
Product name:
-
epever pwm solar charge controller
-
Battery type:
-
Sealed(Default) / Gel / Flooded
-
Max. PV open circuit voltage:
-
50V
-
Grouding:
-
Common Positive
-
System voltage:
-
12/24Vdc
-
Charge mode:
-
PWM Mode
-
Enclosure:
-
IP30 Solar Charge Controller
-
Relative humidity:
-
≤95%,(N.C.)
-
Self-consumption:
-
12V≤5mA; 24V≤7mA

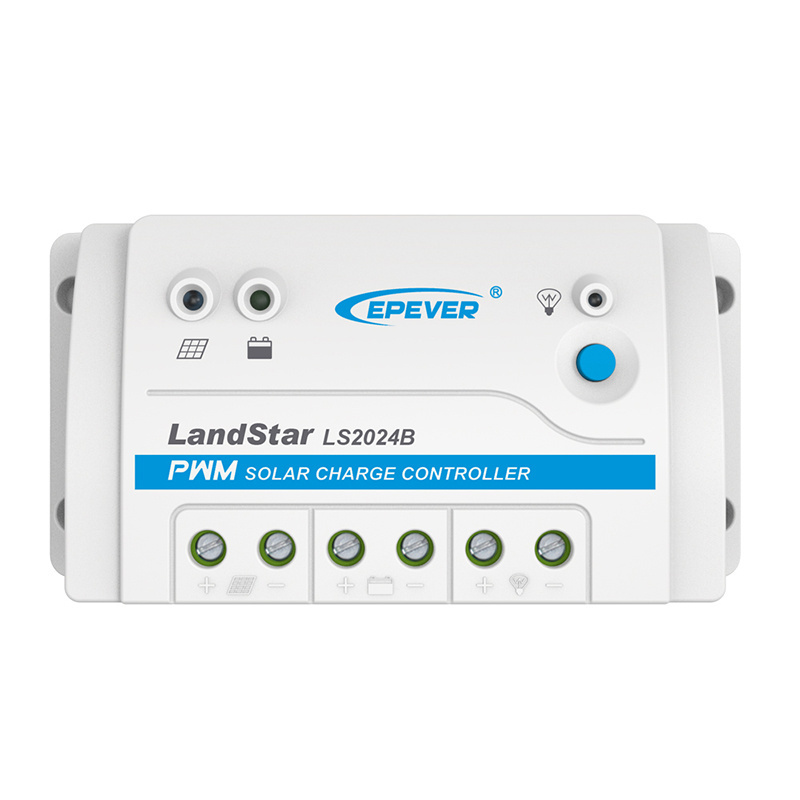

EPever solar home systems LS1024B LS2024B LS3024B 12V 24V 10A 20A 30A PWM Solar Charge Controller
Product Description
LS-B series is a common positive PWM charge controller. Thanks to the RS485 interface. The parameters can be configured via com. Port, APP, and PC software. It is widely applied to solar home systems, and surveillance system,etc.
Highlights:
• Series PWM charging mode
• Multiple load control modes
• Full load operation within the working temperature range
• Extensive electronic protection
• Variety optional accessories
• Standard Modbus communication protocol with RS485 interface
Paramenters
|
Model
|
LS1024B
|
LS2024B
|
LS3024B
|
||
|
System nominal voltage
|
12/24VDC Auto
|
|
|
||
|
Battery type
|
Sealed/Gel/Flooded/User
|
|
|
||
|
Rated charge current
|
10A
|
20A
|
30A
|
||
|
Rated discharge current
|
10A
|
20A
|
30A
|
||
|
Working voltage range of controller
|
8～32V
|
|
|
||
|
Max. PV open circuit voltage
|
50V
|
|
|
||
|
Self-consumption
|
≤8.4mA/12V;≤7.8mA/24V
|
|
|
||
|
Charge circuit voltage drop
|
≤0.28V
|
|
|
||
|
Discharge circuit voltage drop
|
≤0.20V
|
|
|
||
|
Temperature compensate coefficient
|
-3mV/℃/2V (default)
|
|
|
||
|
Environment temperature
|
-35℃～+50℃
|
|
|
||
|
Relative humidity
|
≤95% (N.C.)
|
|
|
||
|
Enclosure
|
IP30
|
|
|
||
|
Grounding
|
Common positive
|
|
|
||
|
Dimension(mm)
|
138.6x69.3x37
|
159.6x81.4x47.8
|
200.6x101.3x57
|
||
|
Mounting size
|
126mm
|
147x50mm
|
190x70mm
|
||
|
Mounting hole size
|
Φ4.3
|
Φ4.3
|
Φ4.5
|
||
|
Terminal
|
4mm2
|
10mm2
|
10mm2
|
||
|
Net weight
|
0.13kg
|
0.3kg
|
0.5kg
|
||
Packing & Delivery
The PWM solar charge controllers f
irstly packed with plastic bag, secondly put customized foam and cardboard box to protect goods, finally with a outer cardboard box, also customized wooden pallets for sea shipment available too.
Package can be customized according to customer's demands(LOGO design)
Package can be customized according to customer's demands(LOGO design)
We chose most economical shipment according to customer demands(By international EXPRESS(DHL, FedEx, UPS, TNT), By Air, By Train, By Sea all available).
We support DDP solution(Delivered Duty Paid) , which helps you import the products easily.
We support DDP solution(Delivered Duty Paid) , which helps you import the products easily.
Application
The PWM solar charge controllers can be used for solar home system, traffic signal, solar street light, solar garden lamp, etc, pleasured to discuss your solar system details.
