Quick Details
-
Dimension(L*W*H):
-
6000*1340*1600mm
-
Weight:
-
1200 KG
-
Product name:
-
Hot-pressing coating machine
-
After-sales Service Provided:
-
1 Year
-
Function:
-
Coating Making
-
Advantage:
-
High Speed Production
-
Base Material:
-
Non Woven
-
Color:
-
Silver
-
Material:
-
SS304 Stainless Steel
-
Product:
-
Multifunctiol Silicone Coating Machine
-
Speed:
-
7-70m/min
-
MOQ:
-
1 set
Quick Details
-
Voltage:
-
380V,
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Qichuang
-
Dimension(L*W*H):
-
6000*1340*1600mm
-
Weight:
-
1200 KG
-
Product name:
-
Hot-pressing coating machine
-
After-sales Service Provided:
-
1 Year
-
Function:
-
Coating Making
-
Advantage:
-
High Speed Production
-
Base Material:
-
Non Woven
-
Color:
-
Silver
-
Material:
-
SS304 Stainless Steel
-
Product:
-
Multifunctiol Silicone Coating Machine
-
Speed:
-
7-70m/min
-
MOQ:
-
1 set

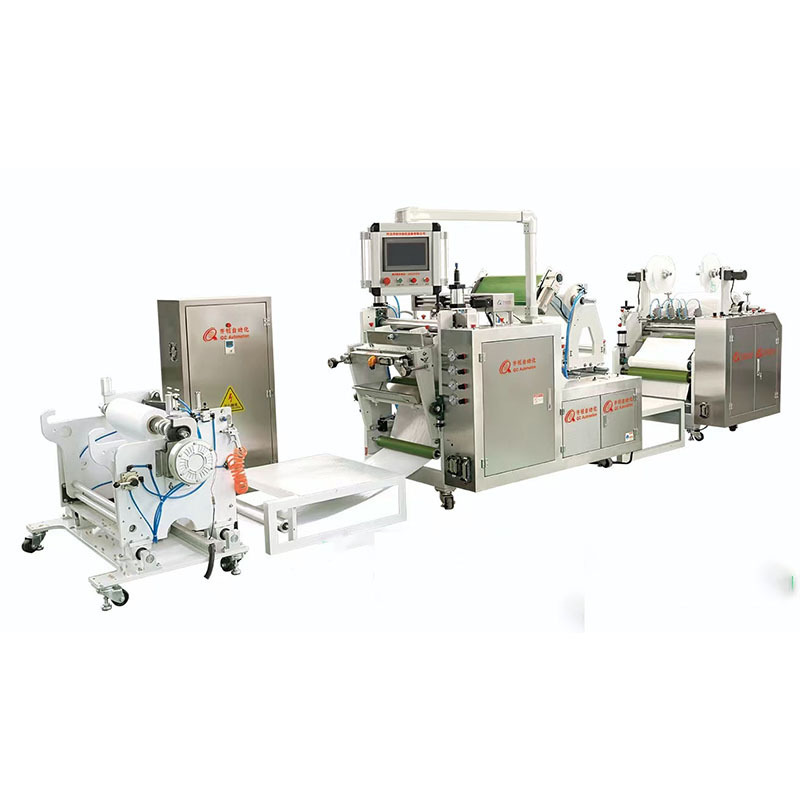

Products Description
|
Name
|
Hot melt adhesive coating machine(slip)
|
|
Model
|
QC-600
|
|
Length
|
6000mm
|
|
Width
|
1340mm
|
|
Height
|
1600mm
|
|
N.W
|
1200kgs
|
|
Installed power
|
12kw
|
|
Coating width
|
60mm-550mm
|
|
Coating thickness
|
0.1mm-2mm
|
|
Coating speed
|
7-70m/min
|
|
Tracheal diameter
|
8mm
|
|
Cooling water circulation
|
80L
|
1.the main frame is processed by the whole plate,and the structure is solid and stable.With independent volume segmentation(first in China),the volume part can be close and far.Product cooling effect is good.The machine two stations,two roll,three in stations,easy to operate to produce a variety of products,it can also be used separately for the cutting machine.
2.the roll release adopts air surge axis design and magnetic powder tension control system.the first roll adopts the cylinder automatic roll,save time and effort automatic correction control system,to maintain the smooth operation.
3.the winding adopts the slip shaft design,automatic skid,staggered winding constant tension,the winding is neat,can be cut online.
4.the operating system is controlled by the computer touch screen PLC.
5.set spraying and scraping coating.Roller coating three functions in one,one machine multi-purpose,China's first,adapt to a wide range.
6.has added the transmission device,can be coated around elastic cloth.
4.the operating system is controlled by the computer touch screen PLC.
5.set spraying and scraping coating.Roller coating three functions in one,one machine multi-purpose,China's first,adapt to a wide range.
6.has added the transmission device,can be coated around elastic cloth.
