Quick Details
-
Brand Name:
-
Ktac
-
Model Number:
-
SBW-30KVA
-
Output voltage:
-
380V 400V 415V +-1%
-
Protection:
-
Short circuit,under voltage,over voltage,over load protection
-
Product Name:
-
3 phase voltage stabilizer
-
Input voltage:
-
304V-456V
-
Power factor:
-
0.8(can Customized 100%
-
Capacity:
-
30KVA
-
Type:
-
Servo Motor Control
-
Warranty:
-
Two Years
-
Frequency:
-
50Hz/60Hz
-
Certificate:
-
CE / ISO9001
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ktac
-
Model Number:
-
SBW-30KVA
-
Output voltage:
-
380V 400V 415V +-1%
-
Protection:
-
Short circuit,under voltage,over voltage,over load protection
-
Product Name:
-
3 phase voltage stabilizer
-
Input voltage:
-
304V-456V
-
Power factor:
-
0.8(can Customized 100%
-
Capacity:
-
30KVA
-
Type:
-
Servo Motor Control
-
Warranty:
-
Two Years
-
Frequency:
-
50Hz/60Hz
-
Certificate:
-
CE / ISO9001

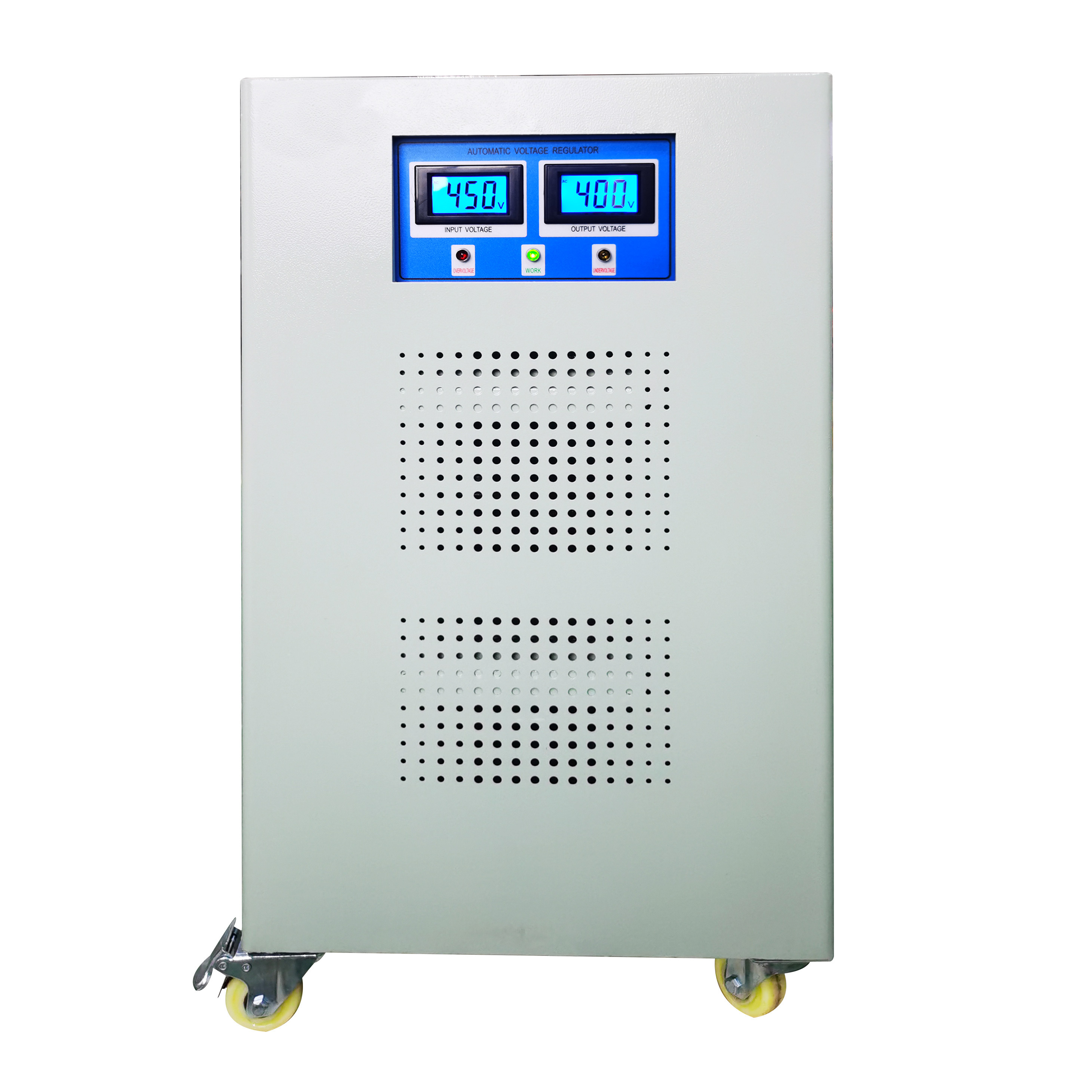

30KVA 30KW three 3 Phase 380V 400V 415V high precision servo motor automatic voltage regulator stabilizer power guardregulator avr
- 3 Phase Servo Motor Stabilizer SBW Series
- Adjustment is made individually for three phases
- Advanced CPU Controlled circuit & 1pcs pure cooper servo transformer and 1pcs square transformer used for each phase
- Digital or voltmeter display input and output voltage
- Over voltage,under voltage,overheat,over load,short circuit,delay time protection.
- 80% Power factor
- Input 304-456VAC / 260V-430Vac(Accept customization), Output 380VAC/400Vac/415Vac with 2% precision
- Power range from 6KVA to 200KVA
|
SIZE AND WEIGHT |
||||
|
Model |
Machine size |
Weight |
Package Size |
Gross weight |
|
10KVA |
350*500*470(mm) |
120kg |
390*540*570(mm) |
42kg |
|
15KVA |
330*460*600(mm) |
120kg |
370*500*700(mm) |
71kg |
|
20KVA |
380*500*710(mm) |
120kg |
420*540*810(mm) |
93kg |
|
30KVA |
350*620*680(mm) |
120kg |
380*650*730(mm) |
140kg |
|
40KVA |
400*700*720 (mm) |
160kg |
430*730*770 (mm) |
180kg |
|
50KVA |
450*750*780(mm) |
180kg |
480*780*830(mm) |
200kg |
|
60KVA |
500*1100*800(mm) |
220kg |
530*1130*850(mm) |
245 kg |
|
70KVA |
500*1100*800(mm) |
230kg |
530*1130*850(mm) |
255kg |
|
80KVA |
500*1100*850(mm) |
250kg |
530*1130*900(mm) |
280kg |
|
90KVA |
550*1150*900(mm) |
300kg |
580*1180*950(mm) |
330kg |
|
100KVA |
600*1200*1100(mm) |
350kg |
630*1230*1150(mm) |
380kg |
|
120KVA |
750*1400*1150(mm) |
380kg |
780*1430*1180(mm) |
410kg |
|
150KVA |
750*1400*1150(mm) |
410kg |
780*1430*1200(mm) |
440kg |
|
200KVA |
800*1500*1200(mm) |
450kg |
830*1530*1250(mm) |
480kg |
|
250KVA |
800*1600*1200(mm) |
480kg |
830*1630*1250(mm) |
510kg |
|
300KVA |
900*1800*1300(mm) |
550 kg |
930*1830*1350(mm) |
580kg |
