- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220/380v, 380V/50HZ/3 phase
-
Power:
-
2200
-
Dimension(L*W*H):
-
2800*1000*1500mm
-
Weight:
-
720 KG
-
Application fields:
-
Walnut Crusher Machine
-
Machinery Function:
-
Nut Chopping Machine
-
Output product name:
-
Nut Crushing Machine
-
Type:
-
Walnut Crusher Machine
-
Capacity:
-
100-200kg/h
-
Cutting Size:
-
2-10 mm
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
provide
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
CE ISO
Quick Details
-
Marketing Type:
-
New Product
-
Core Components:
-
Walnut Crusher Machine
-
Brand Name:
-
LFM
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220/380v, 380V/50HZ/3 phase
-
Power:
-
2200
-
Dimension(L*W*H):
-
2800*1000*1500mm
-
Weight:
-
720 KG
-
Application fields:
-
Walnut Crusher Machine
-
Machinery Function:
-
Nut Chopping Machine
-
Output product name:
-
Nut Crushing Machine
-
Type:
-
Walnut Crusher Machine
-
Capacity:
-
100-200kg/h
-
Cutting Size:
-
2-10 mm
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
provide
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
CE ISO
Related Products
Product Description
Application Of

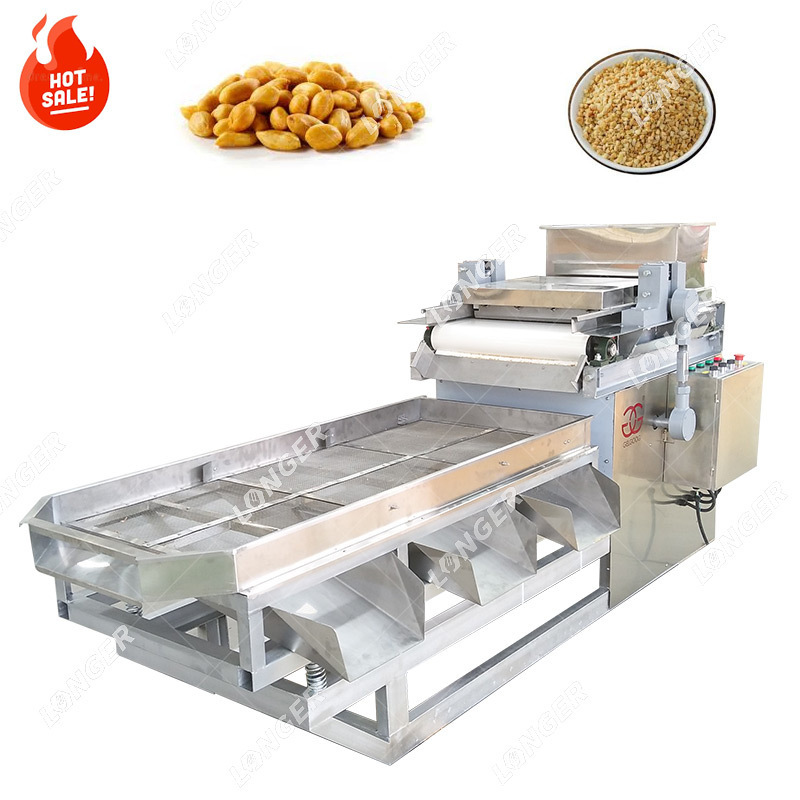

Peanut Chopping Machine
This pea
nut chopping machine
absorbs the advantages of similar products and has the advantages of reasonable structure, high efficiency, energy saving, convenient use, etc. The cut products have uniform particle size, beautiful appearance, low material consumption, and no greasiness.The peanut chopping machine is an ideal choice for food processing industry.
Size Information
Model
|
LFM-ZQ11
|
LFM-ZQ15
|
Capacity
|
100-200kg/h
|
100-200kg/h
|
Power
|
2.2kw
|
3kw
|
Dimension
|
2800*1000*1500mm
|
3000*1000*1500mm
|
Weight
|
720Kg
|
800Kg
|
Voltage
|
380V,50HZ
|
380V,50HZ
|
Cutting Size
|
2-10 mm
|
|
Mesh size
|
0-2mm,2-4mm,4-6mm
|
|
Detailed Images
FAQ
1.What is the machine material?
The material contact part is 201 stainless steel, the main carbon steel, material contact and outsourcing can be changed to 304.
2. Can the equipment voltage be replaced?
The device is powered by three-phase power and can be changed to single-phase power. The voltage and frequency can be changed as needed.
3.What is the structure and material of the tool holder?
Each device is arranged with 10 cutters side by side, and is cut up and down and shredded. The blade size is 54cm*6cm*3mm and the material is 4Cr13.
4.How does the chopper machine adjust the particle size?
The size control of the particles is achieved by adjusting the handles on both sides of the roll and changing the gap to the rolls.
5.What are the requirements for materials?
When the moisture content of the material is controlled at 4%-5%, the chopping effect is best, and the powder content is 5%-10%.
6.The material particle size is different, is the machine output certain?
When the particle size is 2-3 mm, the output is 100-150 kg. If the particle size is more than 5 mm, the output is 200-300 kg.
