Quick Details
-
Power:
-
5.5kw, 5.5kw
-
Dimension(L*W*H):
-
customized
-
Weight:
-
1020 KG
-
Product name:
-

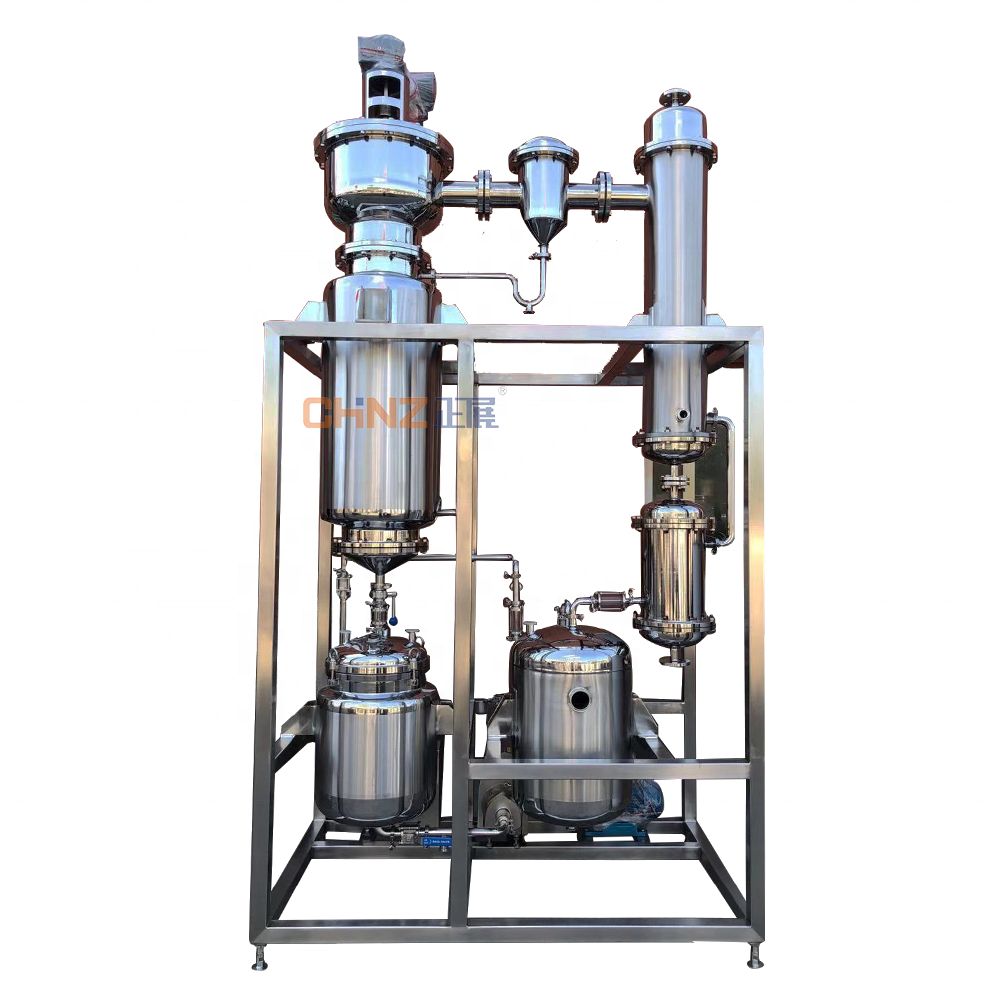

Scraper thin-film evaporator separator
-
Application:
-
ph arm acy, food, light industry, petrochemical
-
Material:
-
Stainless Steel 304/316L
-
Function:
-
Evaporation Machine
-
Type:
-
Evaporator
-
Key word:
-
Scraper film evaporator
-
After-sales Service Provided:
-
Online Support
-
Certification:
-
CE/ISO9001
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHINZ
-
Voltage:
-
220V/380V/Customized
-
Power:
-
5.5kw, 5.5kw
-
Dimension(L*W*H):
-
customized
-
Weight:
-
1020 KG
-
Product name:
-
Scraper thin-film evaporator separator
-
Application:
-
ph arm acy, food, light industry, petrochemical
-
Material:
-
Stainless Steel 304/316L
-
Function:
-
Evaporation Machine
-
Type:
-
Evaporator
-
Key word:
-
Scraper film evaporator
-
After-sales Service Provided:
-
Online Support
-
Certification:
-
CE/ISO9001
Products Description
Application:
This scraper type evaporator is a kind of evaporator with the latest international sturcture, it uses centrifugal sliding groove
rotator that may form film e ven with every small flow. The shoal materials in the liquid deposited on the surface of internal waa in evaporation section of the barrel will be uicky removed by movable scraper, its evaporation capacity improves about 40-60% compare with scraper evaporator with fixed gap.
The device is used in China and western ph arm acy, food, light industry, petrochemical, environmental protection industries etc.The biggest point is not affected by material viscosity.
This scraper type evaporator is a kind of evaporator with the latest international sturcture, it uses centrifugal sliding groove
rotator that may form film e ven with every small flow. The shoal materials in the liquid deposited on the surface of internal waa in evaporation section of the barrel will be uicky removed by movable scraper, its evaporation capacity improves about 40-60% compare with scraper evaporator with fixed gap.
The device is used in China and western ph arm acy, food, light industry, petrochemical, environmental protection industries etc.The biggest point is not affected by material viscosity.
Character
1.Its heat transfer coefficient value is high, and its evaporation capacity & strength can achieve 200kg/m2 · hr, with high
thermal efficiency.
2.Material heating time is short, from 5 seconds to 10 seconds. Under vacuum conditions, the equipment can favorably retain heat-sensitive material's various ingredients, and produce non-decomposition, to ensure the quality of products.
3. This equipment is adapt to wide range of viscosity. Material of high viscosity can also be processed. Material viscosity can be as high as 10 million per cent tabor (CP).
4.Changing the rotation direction of the scraper groove, can adjust the process time of material in the evaporator.
5. The wall of evaporation cylinder body is after precision milling and polishing processing, so its surface is not easy to
generate coking, fouling.
6, It is convenient to operate, and easy to regulate in product index. In airtight condition, continuity production can be auto-controlled.
7, Equipment covers a small area, with simple structure. It is easy to clean and convenient to maintenance
1.Its heat transfer coefficient value is high, and its evaporation capacity & strength can achieve 200kg/m2 · hr, with high
thermal efficiency.
2.Material heating time is short, from 5 seconds to 10 seconds. Under vacuum conditions, the equipment can favorably retain heat-sensitive material's various ingredients, and produce non-decomposition, to ensure the quality of products.
3. This equipment is adapt to wide range of viscosity. Material of high viscosity can also be processed. Material viscosity can be as high as 10 million per cent tabor (CP).
4.Changing the rotation direction of the scraper groove, can adjust the process time of material in the evaporator.
5. The wall of evaporation cylinder body is after precision milling and polishing processing, so its surface is not easy to
generate coking, fouling.
6, It is convenient to operate, and easy to regulate in product index. In airtight condition, continuity production can be auto-controlled.
7, Equipment covers a small area, with simple structure. It is easy to clean and convenient to maintenance
|
Project and model
|
GN1.0
|
GN2.0
|
GN4.0
|
GN6.0
|
GN8.0
|
GN10.0
|
|||||
|
Heat exchange area (m
2
)
|
1
|
2
|
4
|
6
|
8
|
10
|
|||||
|
Steam pressure(MPa)
|
0.4
|
|
|
|
|
|
|||||
|
Vacuum degree(MPa)
|
-0.095
|
|
|
|
|
|
|||||
|
Evaporation capacity(kg/h)
|
80
|
160
|
320
|
480
|
640
|
800
|
|||||
|
Energy consumption(kg/h)
|
200
|
300
|
400
|
500
|
580
|
700
|
|||||
|
Motor powder(KW)
|
3.0
|
4.0
|
5.5
|
7.5
|
11
|
11
|
|||||
|
Speed(r/min)
|
135
|
|
|
|
|
|
|||||
|
Equipment Weight(mm)
|
400
|
4500
|
5000
|
7000
|
8000
|
9000
|
|||||
