Quick Details
-
Model Number:
-
M3V
-
Dimension(L*W*H):
-
Customized
-
Marketing Type:
-
New Product
-
Gas Type:
-
Various gases
-
Technology:
-
Machining, welding, assembling and painting
-
Color:
-
Sea blue
-
Material:
-
Steel, cast iron, copper
-
Feature:
-
Good sealing, no oil leakage and ensure gas purity
-
Application:
-
Gas field, petrochemical, chemical, silicon, steel plant
-
Surface treatment:
-
antirust treatment
-
OEM+customized:
-
Accept
-
Product testing:
-
yes
-
Free vulnerable spare parts:
-
a set of diaphragm
-
Design and processing:
-
as required
Quick Details
-
Applicable Industries:
-
Gas industry, petrochemical, chemical industry, coal chemical industry, fluorine chemical industry, monocrystalline silicon industry, polysilicon industry, hydrogen energy indsutry
-
Place of Origin:
-
Dandong, China
-
Brand Name:
-
Jinding
-
Model Number:
-
M3V
-
Dimension(L*W*H):
-
Customized
-
Marketing Type:
-
New Product
-
Gas Type:
-
Various gases
-
Technology:
-
Machining, welding, assembling and painting
-
Color:
-
Sea blue
-
Material:
-
Steel, cast iron, copper
-
Feature:
-
Good sealing, no oil leakage and ensure gas purity
-
Application:
-
Gas field, petrochemical, chemical, silicon, steel plant
-
Surface treatment:
-
antirust treatment
-
OEM+customized:
-
Accept
-
Product testing:
-
yes
-
Free vulnerable spare parts:
-
a set of diaphragm
-
Design and processing:
-
as required

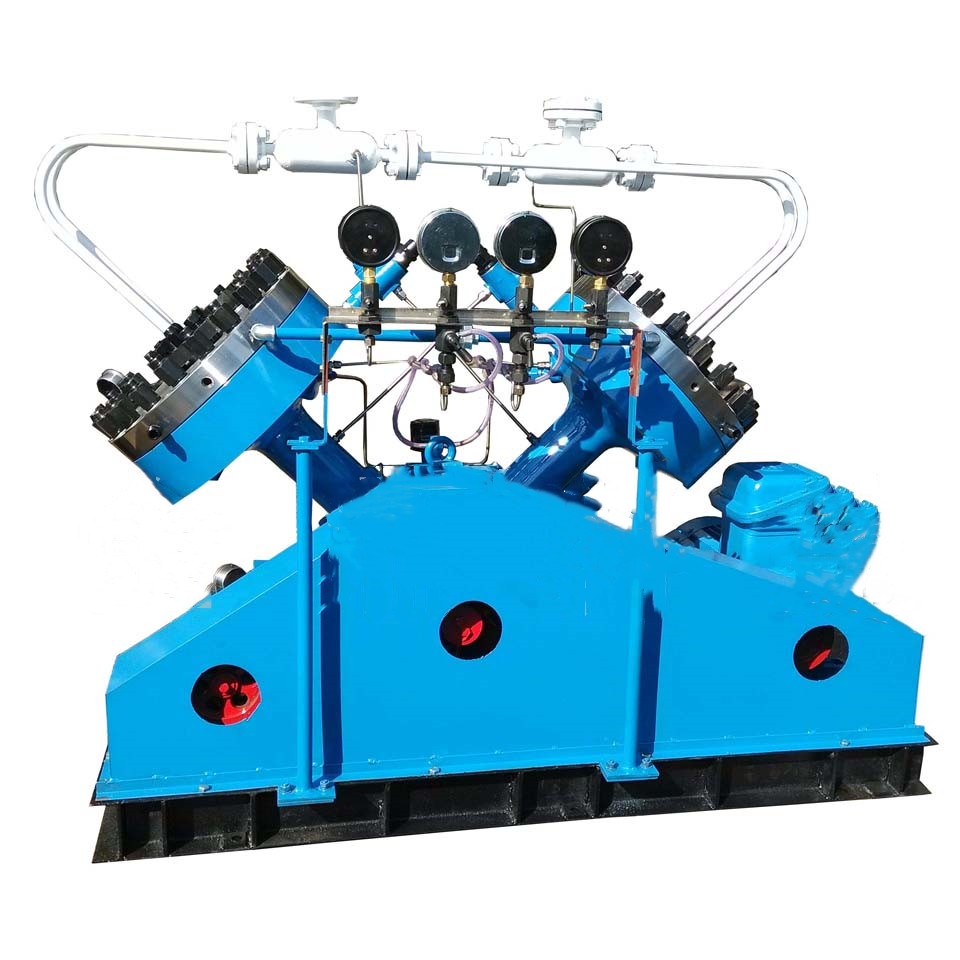

(M3V series diaphragm compressor
Characteristics of V-type diaphragm compressor
1. The pistons of V-type diaphragm compressor form a V-shape with each other, which is called V-type diaphragm compressor. It can make full use of space, dissipate heat well and work stably. The requirements for technical content are relatively high.
2. The gas is not in contact with any medium and is suitable for compressing rare and high-purity gas.
3. The compressor has good sealing, no leakage and no oil pollution. It is the first choice to compress toxic, harmful, flammable and explosive gases and special gases.
4. The new membrane cavity curve improves the volumetric efficiency of the compressor and improves the service life of vulnerable parts, diaphragm and air valve.
5. The independent oil pump station with complete functions provides lubricating oil with stable pressure, clean quality and sufficient cooling for compressor lubrication and oil cylinder work.
6. The whole machine has compact and reasonable structure, which is convenient for equipment transportation, installation and maintenance; Stable and reliable operation, low vibration and low noise.
M3V Series diaphragm compressor technical parameters
|
Model
|
Volumetric flow
Nm 3/h |
Inlet pressure
MPa（G） |
Outlet pressure
MPa（G） |
Speed
r/min |
Overall dimension
（L×W×H）mm |
Weight
t |
Water consumption
t/h |
Power
kW |
|
M3V-20/200
|
20
|
Atm. P
|
20
|
400
|
1835×1065×1400
|
1.82
|
1.8
|
15
|
|
M3V-30/60
|
30
|
Atm. P
|
6
|
400
|
2225×1520×1860
|
2.0
|
1.8
|
22
|
|
M3V-70/8-200
|
70
|
0.8
|
20
|
400
|
1800×1500×1600
|
2.2
|
1.6
|
30
|
|
M3V-250/15-50
|
250
|
1.5
|
5
|
400
|
2050×1770×1650
|
2.2
|
1.6
|
30
|
|
M3V-100/12-150
|
100
|
1.2
|
15
|
400
|
2230×1770×1650
|
2.2
|
2.0
|
30
|
|
M3V-70/9-80
|
70
|
0.9
|
8
|
400
|
2650×1970×1520
|
2.2
|
2.0
|
22
|
|
M3V-20/1-200
|
20
|
0.1
|
20
|
400
|
1800×1100×1300
|
1.8
|
1.8
|
15
|
|
M3V-35/6-200
|
35
|
0.6
|
20
|
400
|
1850×1100×1450
|
2.0
|
1.8
|
15
|
|
M3V-50/8-150
|
50
|
0.8
|
15
|
400
|
1850×1100×1500
|
2.2
|
2.0
|
15
|
|
M3V-60/7-200
|
60
|
0.7
|
20
|
400
|
2050×1770×1600
|
2.0
|
1.8
|
22
|
|
M3V-100/10-200
|
100
|
1
|
20
|
400
|
2200×1600×1800
|
2.2
|
2.0
|
30
|
|
M3V-50/5-160
|
50
|
0.5
|
16
|
400
|
1850×1650×1500
|
1.85
|
1.8
|
22
|
|
M3V-250/15-31
|
250
|
1.5
|
3.1
|
400
|
1850×1650×1500
|
1.85
|
1.8
|
22
|
Note:
Models not in the table can be designed and manufactured according to customer requirements.
Specification
|
item
|
value
|
|
Applicable Industries
|
Gas field, petrochemical, chemical, coal chemical, steel plant
|
|
Showroom Location
|
None
|
|
Condition
|
New
|
|
Type
|
Diaphragm compressor
|
|
Configuration
|
Skid-mounted
|
|
Power Source
|
AC POWER
|
|
Lubrication Style
|
Splashing or pressure replenishment lubricated
|
|
Mute
|
M2.5V
|
|
Place of Origin
|
Dandong, China
|
|
Brand Name
|
Jinding
|
|
Model Number
|
M3V
|
|
Dimension(L*W*H)
|
Customized
|
|
Warranty
|
1 Year
|
|
Working Pressure
|
as required
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Marketing Type
|
New Product
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC, Gear, Motor
|
|
Gas Type
|
Various gases
|
|
Technology
|
Machining, welding, assembling and painting
|
|
Color
|
Sea blue
|
|
Material
|
Steel, cast iron, copper
|
|
Feature
|
Good sealing, no oil leakage and ensure gas purity
|
|
Application
|
Gas field, petrochemical, chemical, fluorine chemical, steel plant
|
|
Surface treatment
|
antirust treatment
|
|
OEM+customized
|
Accept
|
|
Product testing
|
yes
|
|
Free vulnerable spare parts
|
a set of diaphragm
|
|
Design and processing
|
as required
|
